Maker Industrial, Bury

This office staircase was for the entrance of Maker Industrial’s offices in Bury, Greater Manchester. A business specialising in the manufacture and packing of water-based solutions.

Our clients wanted a commercial spiral staircase in our Elite design to give access to their first-floor offices. Elite spiral staircases are designed as a component system with treads that slot over the core pole creating an oversize effect in contrast to the spacers. In this case the design was enhanced by the choice of materials with the timber composite treads complementing the satin polished stainless steel of the spacer sleeves.

Elite spiral stairs with timber composite treads
Elite spiral stairs with timber composite treads
Maker Industrial
Elite spiral office staircase
Rakem Ltd
Equilibrium Architects

Office spiral staircase

This was a Category D spiral staircase in our Elite spiral stairs design. The British Standard BS5395 Part II defines a Category D spiral staircase as intended to be used by larger numbers of people, some of whom may be unfamiliar with the stair e.g. in factories, offices, shops.

We manufacture this style of commercial staircase in parts and send it to site in component form for installation by one of our teams of fitters.

The choice of colours used in this office spiral stairs suited the entrance interior design and the openness of the risers helped filter the light between floors rather than detracting from it.

One of the benefits of composite timber treads is that they can be made to suit laminate flooring although in this case we also supplied a matching landing.

At a glance

Floor to floor height: 3476mm
Spiral diameter: 2300mm
Treads: 18 @ 1150mm radius in 40mm composite hardwood with clear lacquer finish. Spacer connectors at the end of each tread.
Tread clear width: 800.2mm
Risers: Open. 19 @ 182.9mm
Balustrade: 42mm diameter satin polished stainless-steel uprights with curved glass infill panels
Handrails: 50mm diameter tubular handrail in satin polished stainless steel
Landing: 1350mm square in matching composite hardwood
Additional: 3.5m of matching landing and first floor gallery balustrade

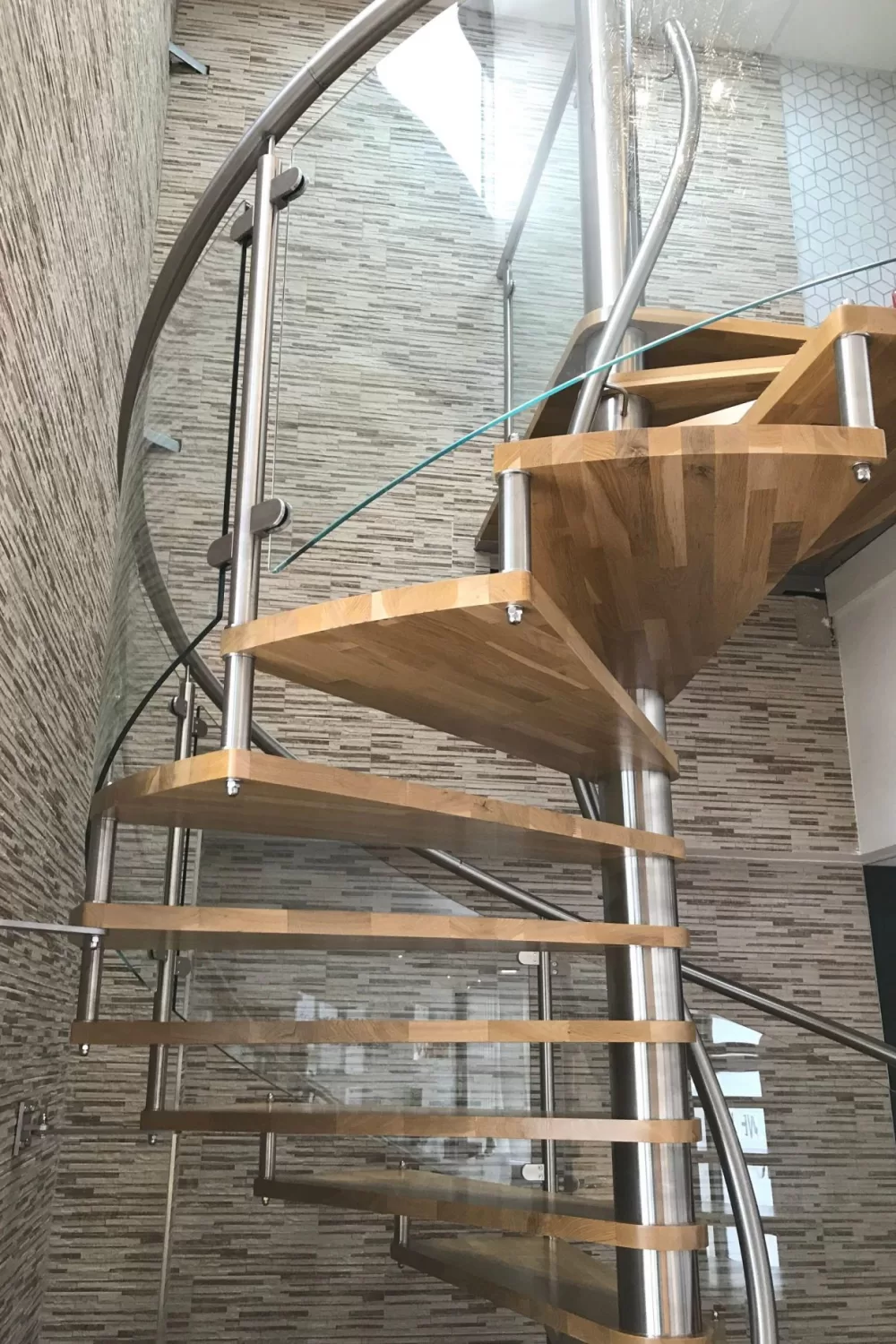

Spiral stairs in Elite design

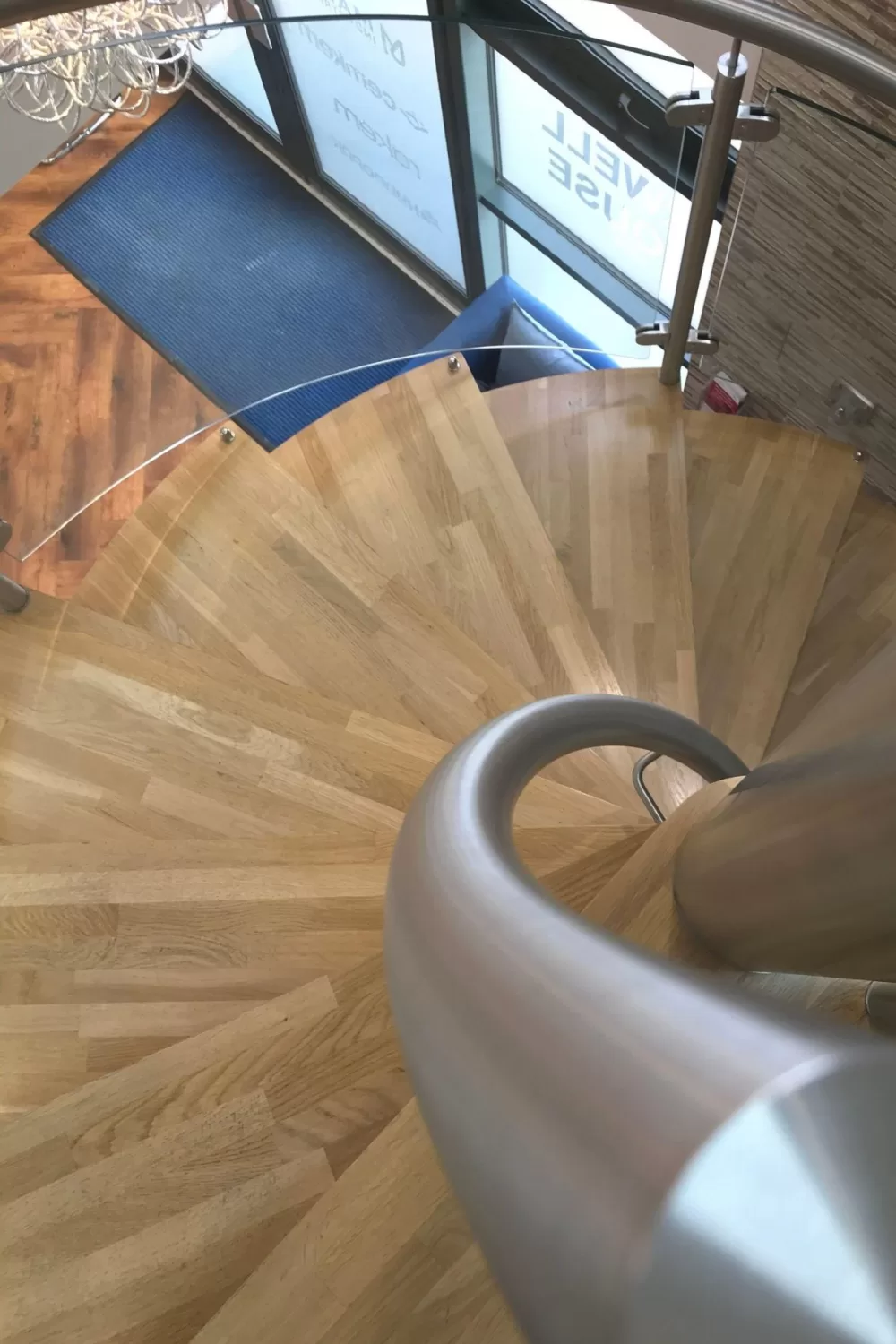

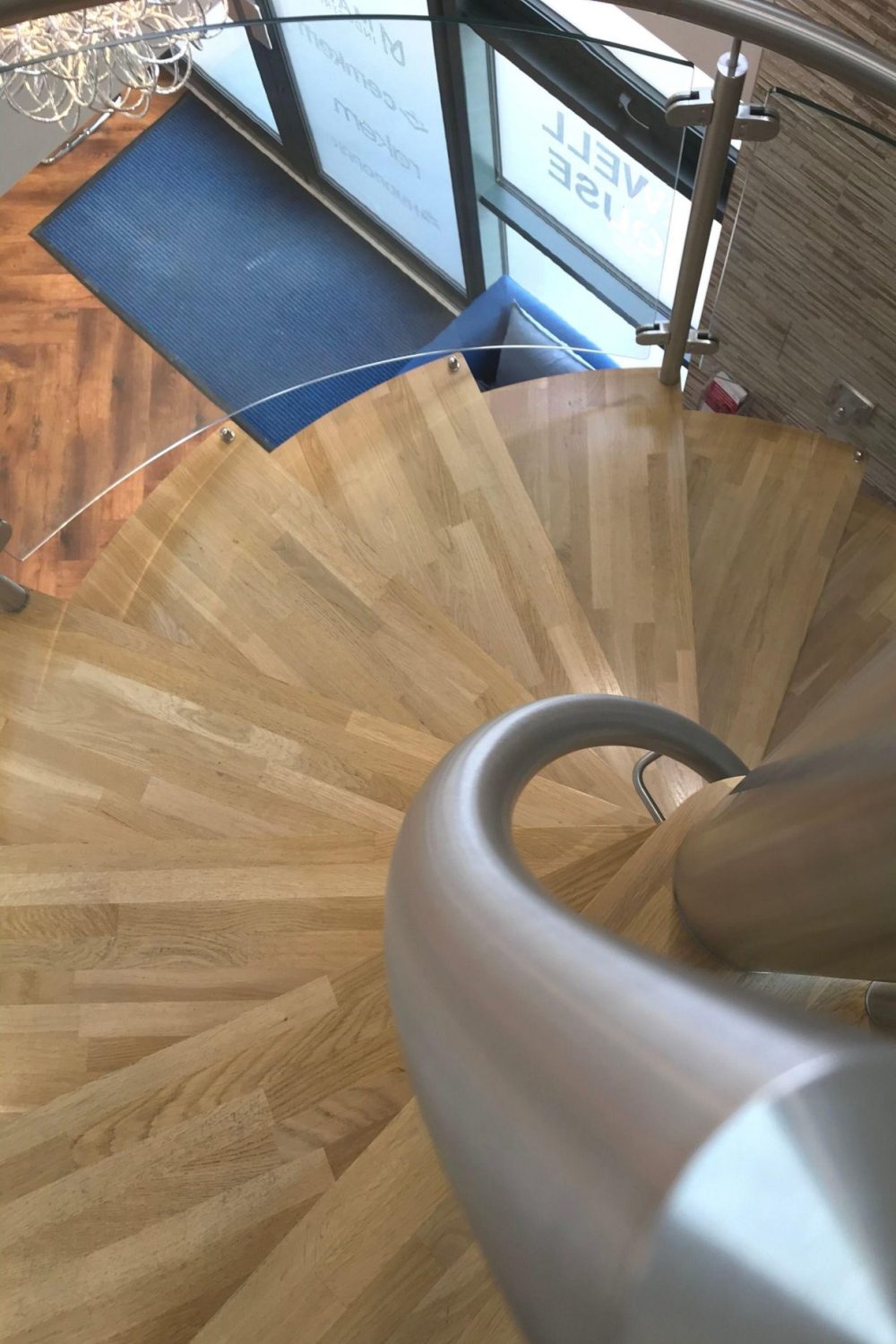

Timber composite treads

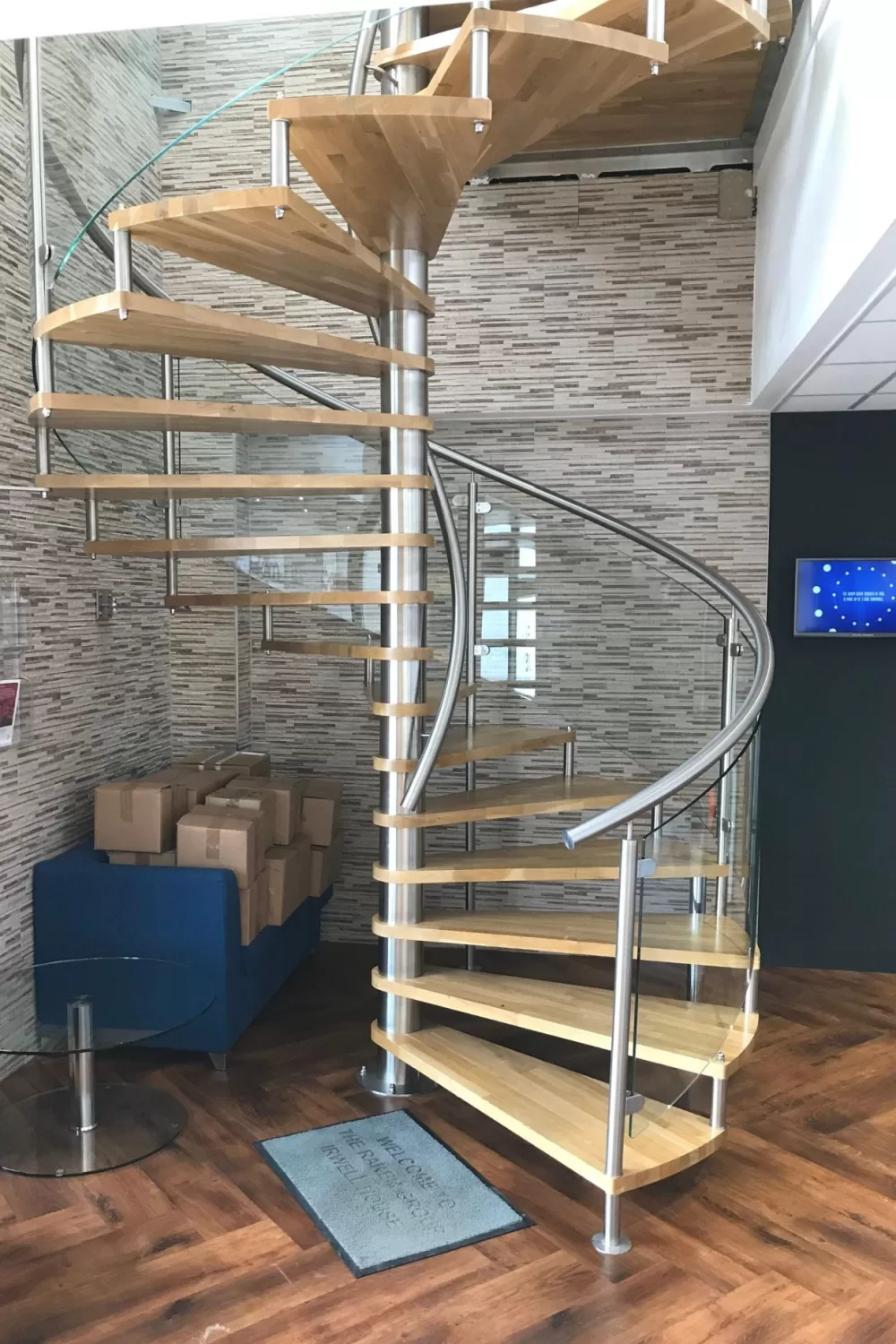

Commercial spiral staircase

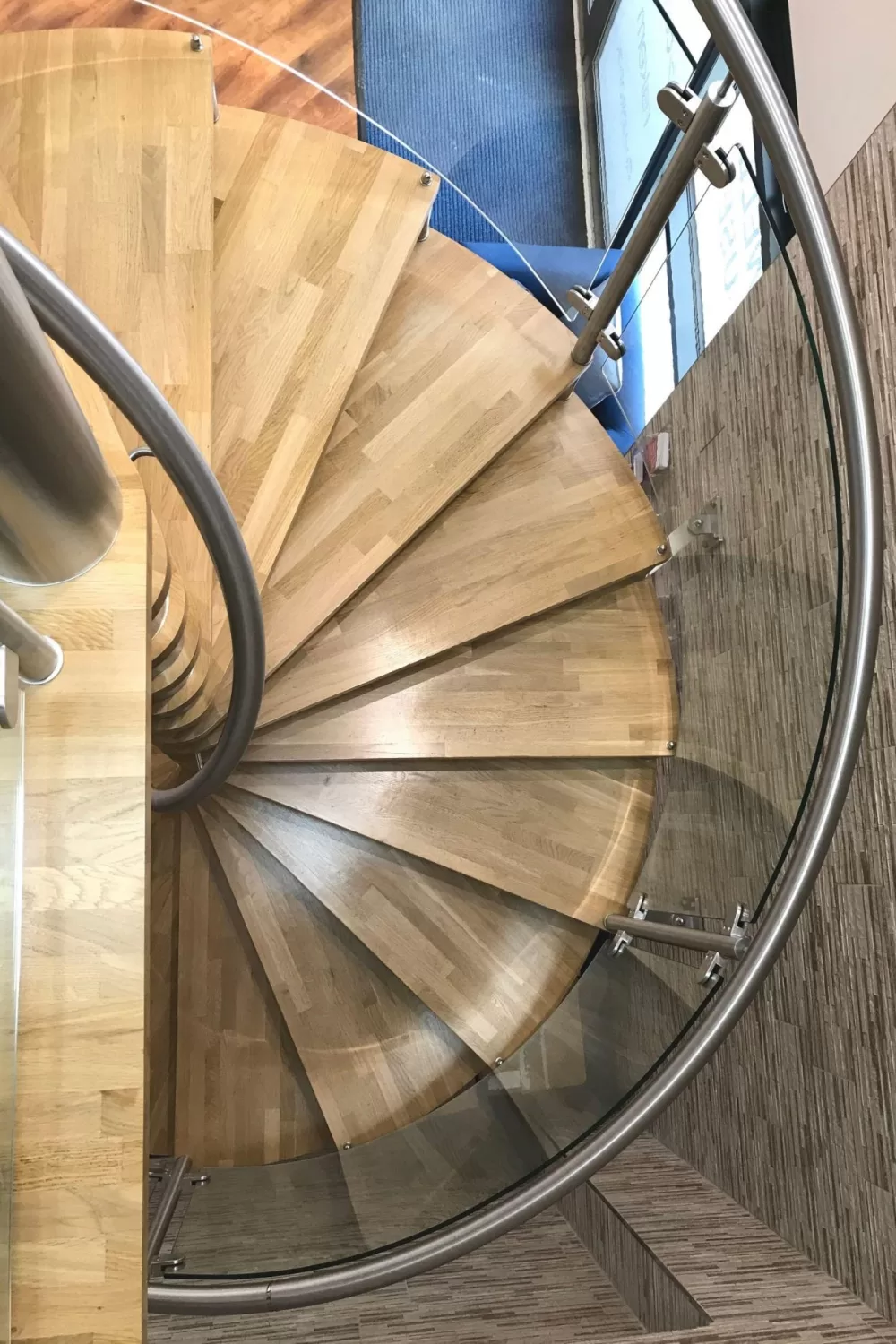

Elite spiral stairs with timber composite treads

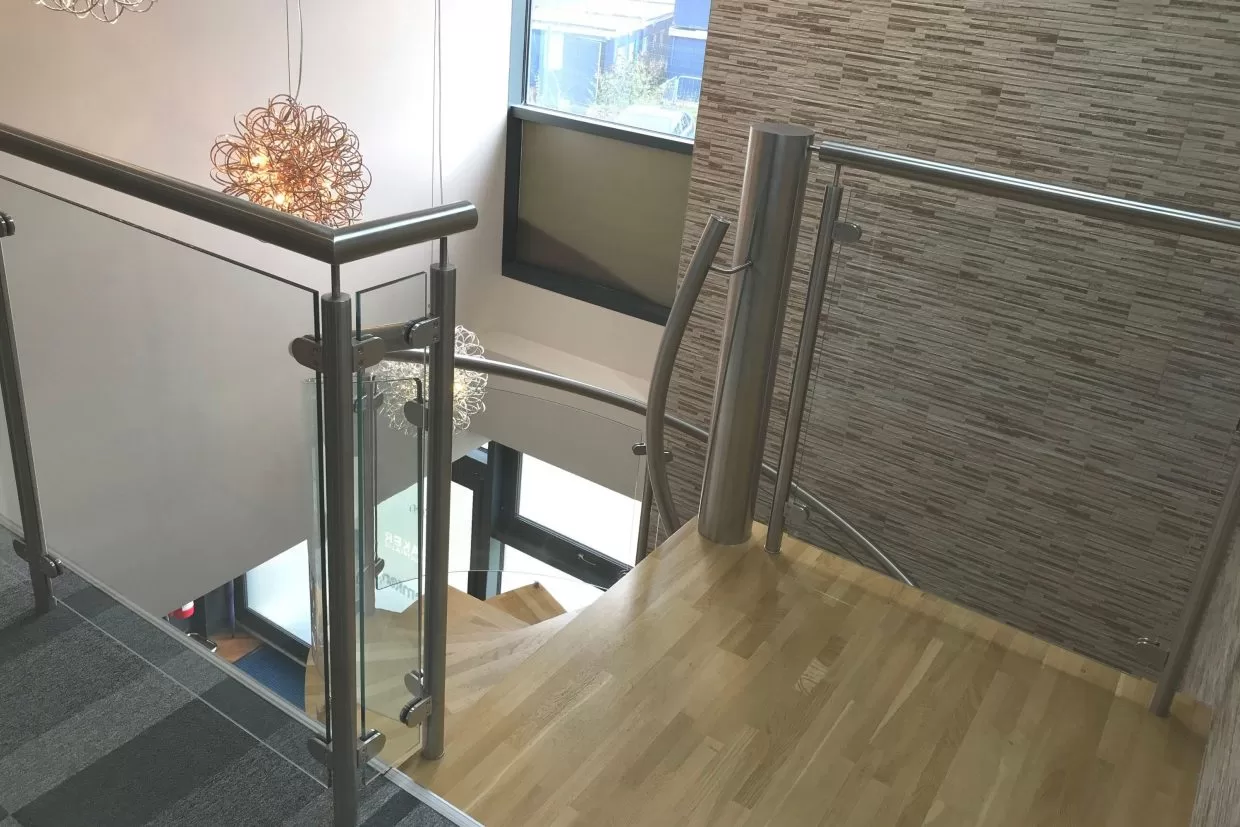

Glass panel landing balustrade
