Luxury home, Guildford

This designer staircase really made an impact in this new luxury home in Surrey. Unlike spiral staircases elliptical staircases do not have a single radius point, instead multiple radius points create an oval or egg shape to the curve of the stair with each tread being different.

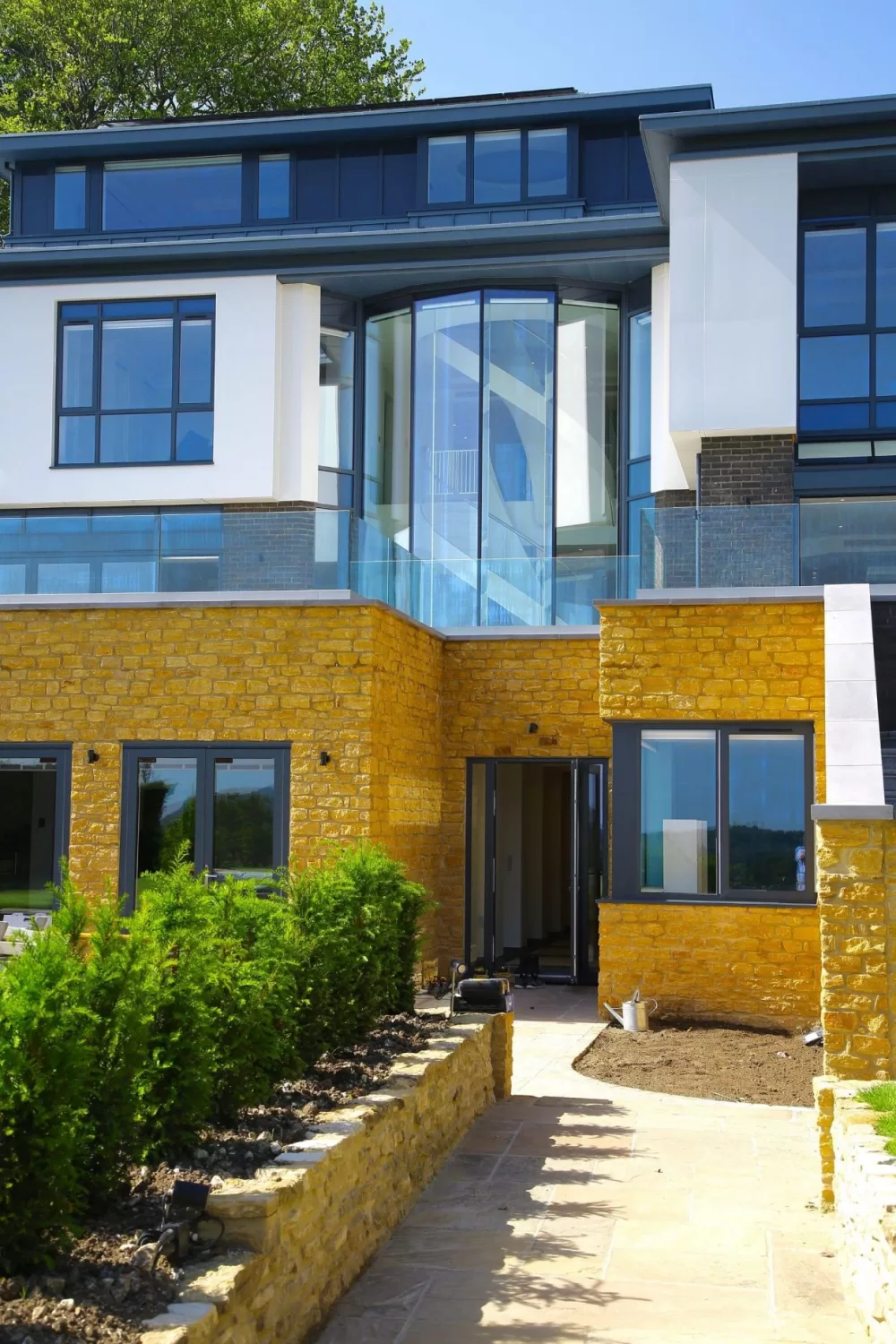

In the case of this curved staircase the oval was used as a focal point positioned as it is in the centre of the property with a feature glass wall in front of it allowing access to countryside views from inside and hinting at the incredible feature staircase from the outside.

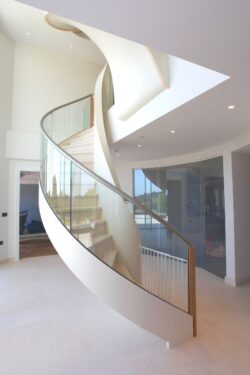

Elliptical stair with glass balustrade

The specially imported stone treads blend beautifully with the plastered white curve of the inner stringer and the curved glass balustrade creates an elegant contemporary staircase which runs over two floors; really suiting the tasteful interior design of this high-end home.

Requirement:
Curved staircase or elliptical staircase design
Architect:
BBF Fielding Architecture
Contractor:
Willowstone Construction

Curved staircase

The test when making this type of designer staircase is blending the transition between the curves to ensure the elliptical staircase shape is smooth and continuous. Our time served craftsmen love a challenge and this type of curved staircase looks so beautiful when finished, it’s really worth the extra time and effort it takes to ensure a seamless arc.

This double flight curved stairs was fabricated in steel and then clad in Pietra Plana stone with a honed finish. (We also supplied the floor tiles to ensure a flawless finish).

The outer balustrade was curved glass with a satin polished stainless-steel tubular capping handrail, the inner stringer was a steel structure with a white plaster finish.

Guide price

£95,000

At a glance

Floor to floor height: 3273mm, 2980mm
Risers: 16 @ 201.4mm, 15 @ 198.7mm closed in stone
Treads: 31 in Honed Pietra Plana stone
Clear tread width: 895mm
Balustrade; Toughened curved glass fixed into a steel fabricated stringer
Handrail: Statin polished stainless-steel tubular capping to the balustrade
Curved staircase

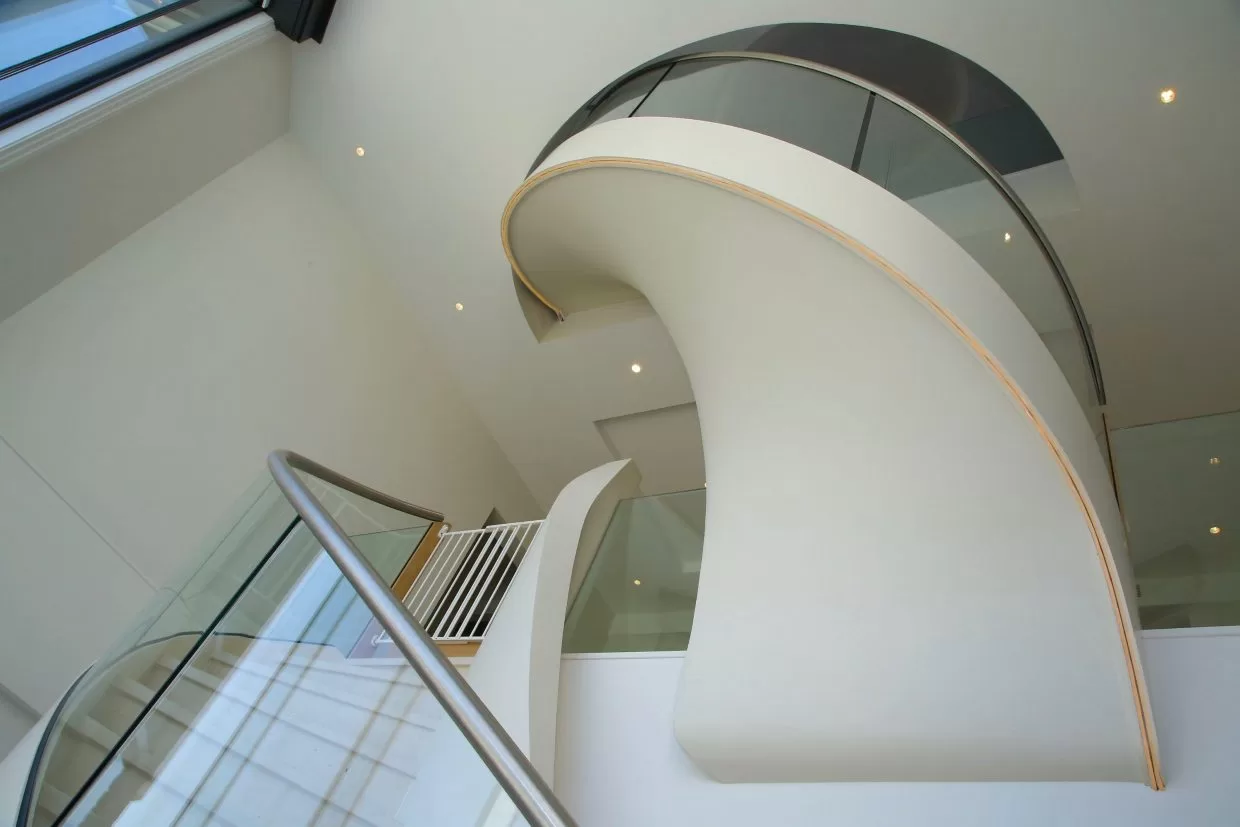

Underside of Curved Staircase

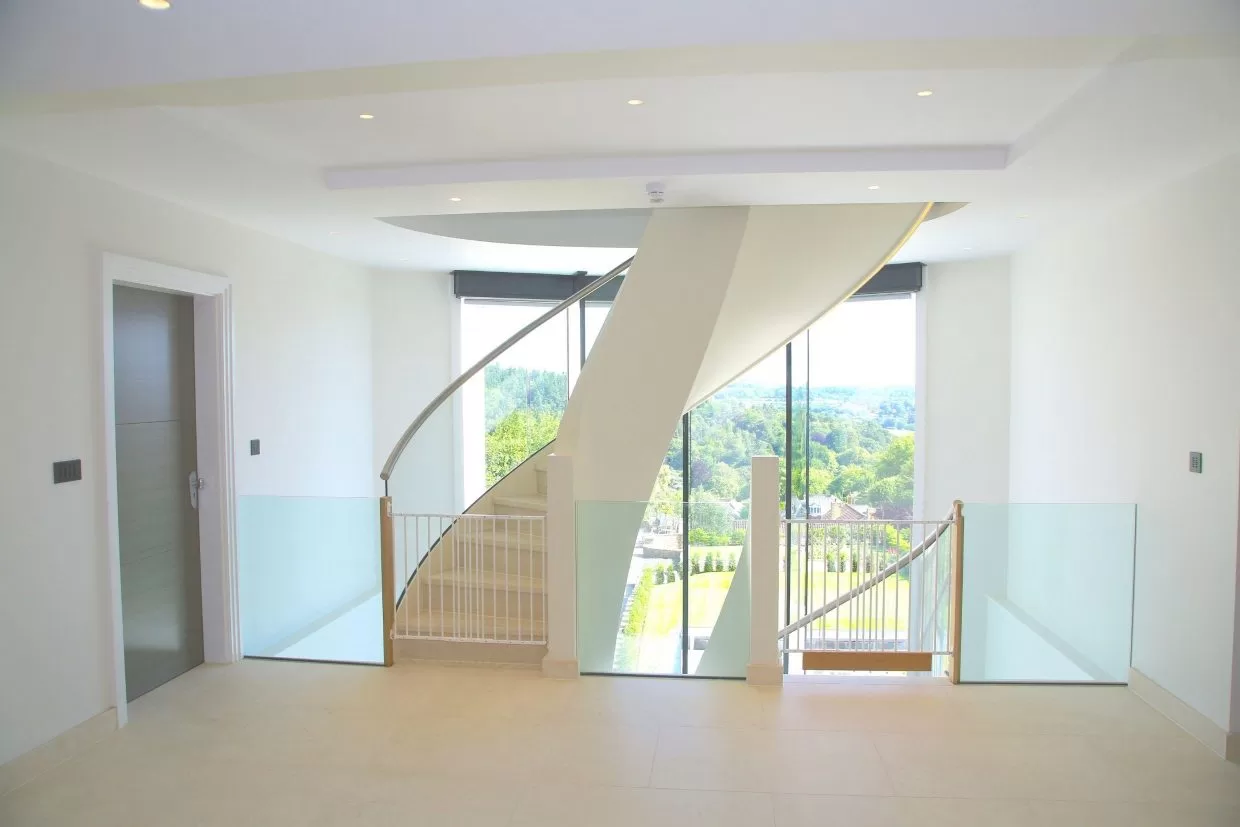

Elliptical staircase feature in luxury home

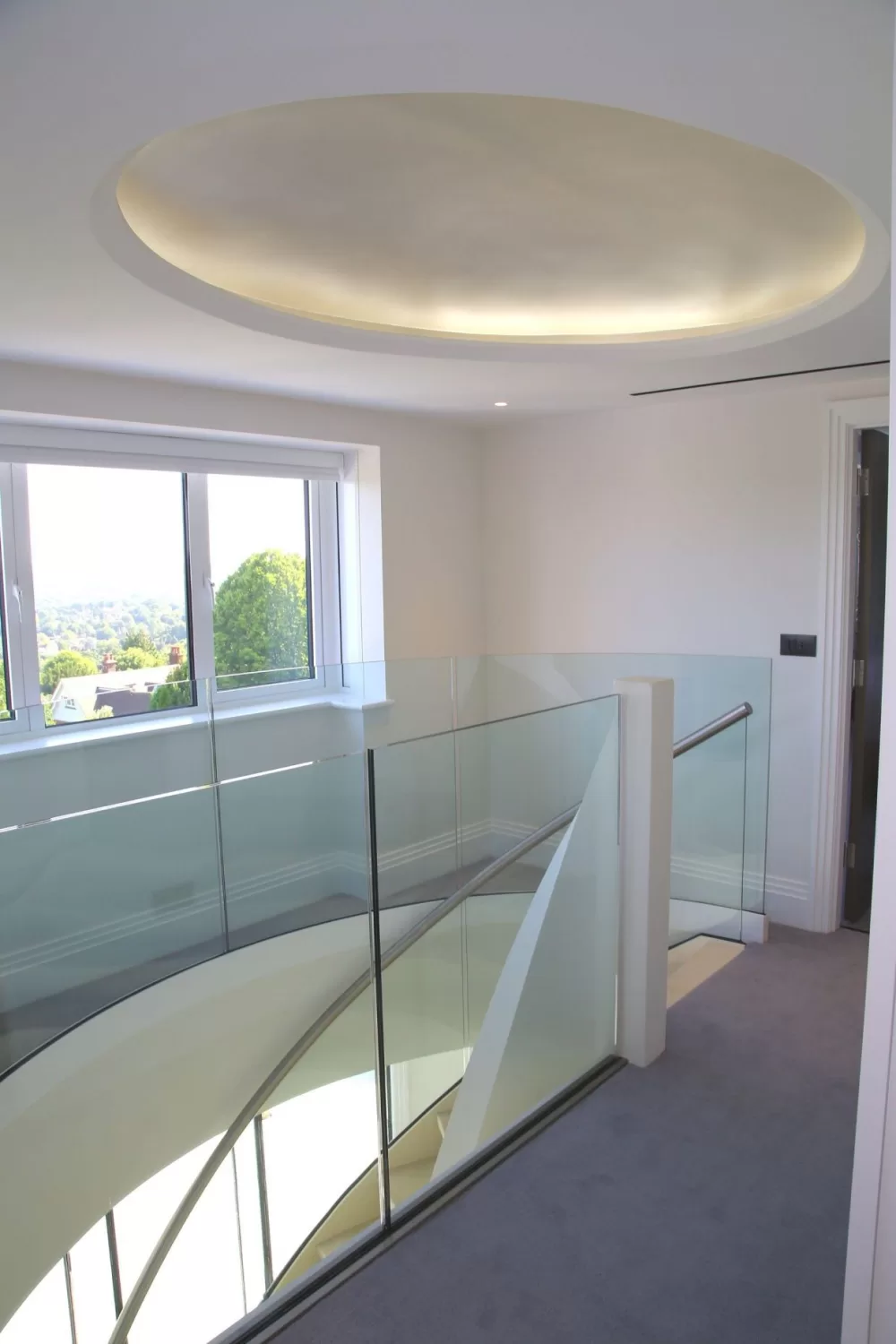

Glass balustrade to landing

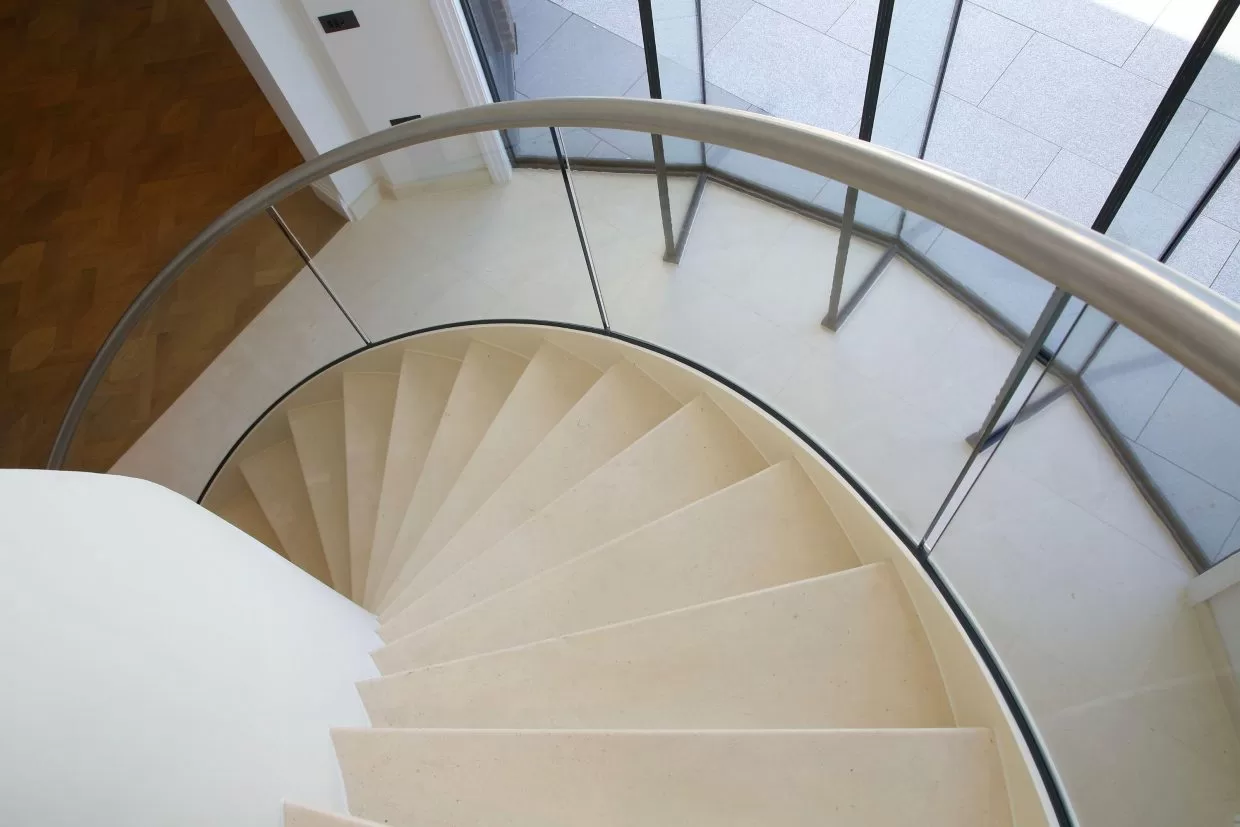

Descending curved staircases

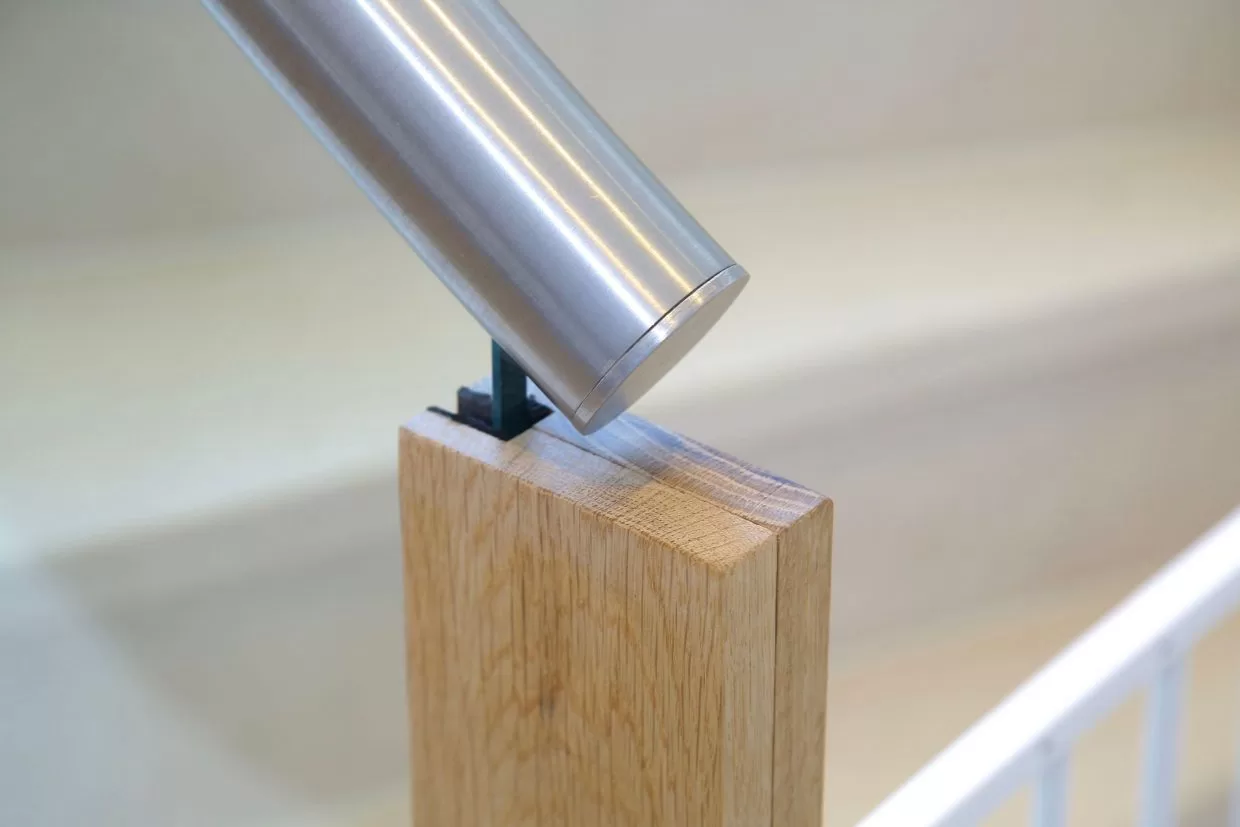

Satin polished stainless steel handrail

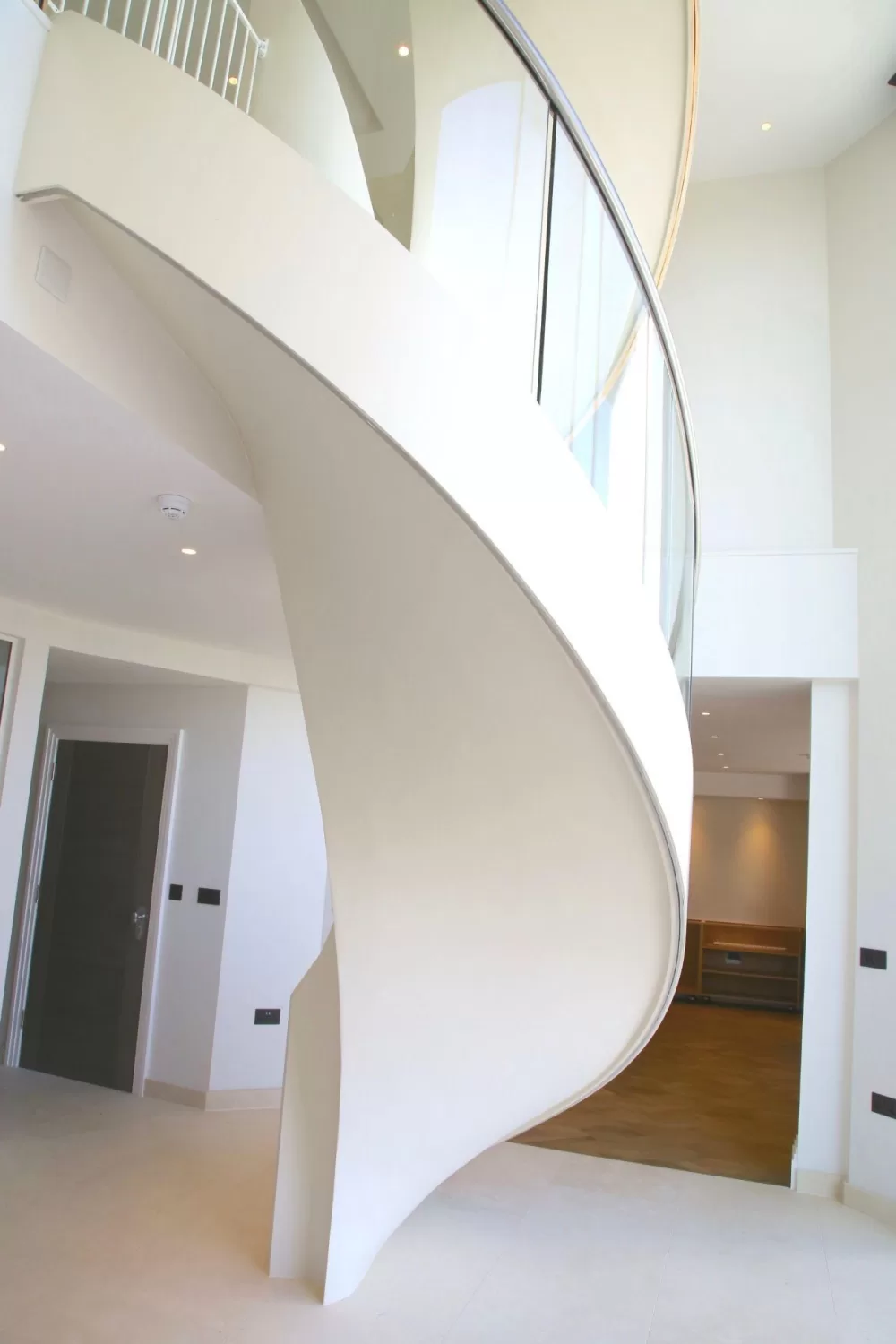

Underside elliptical stairs

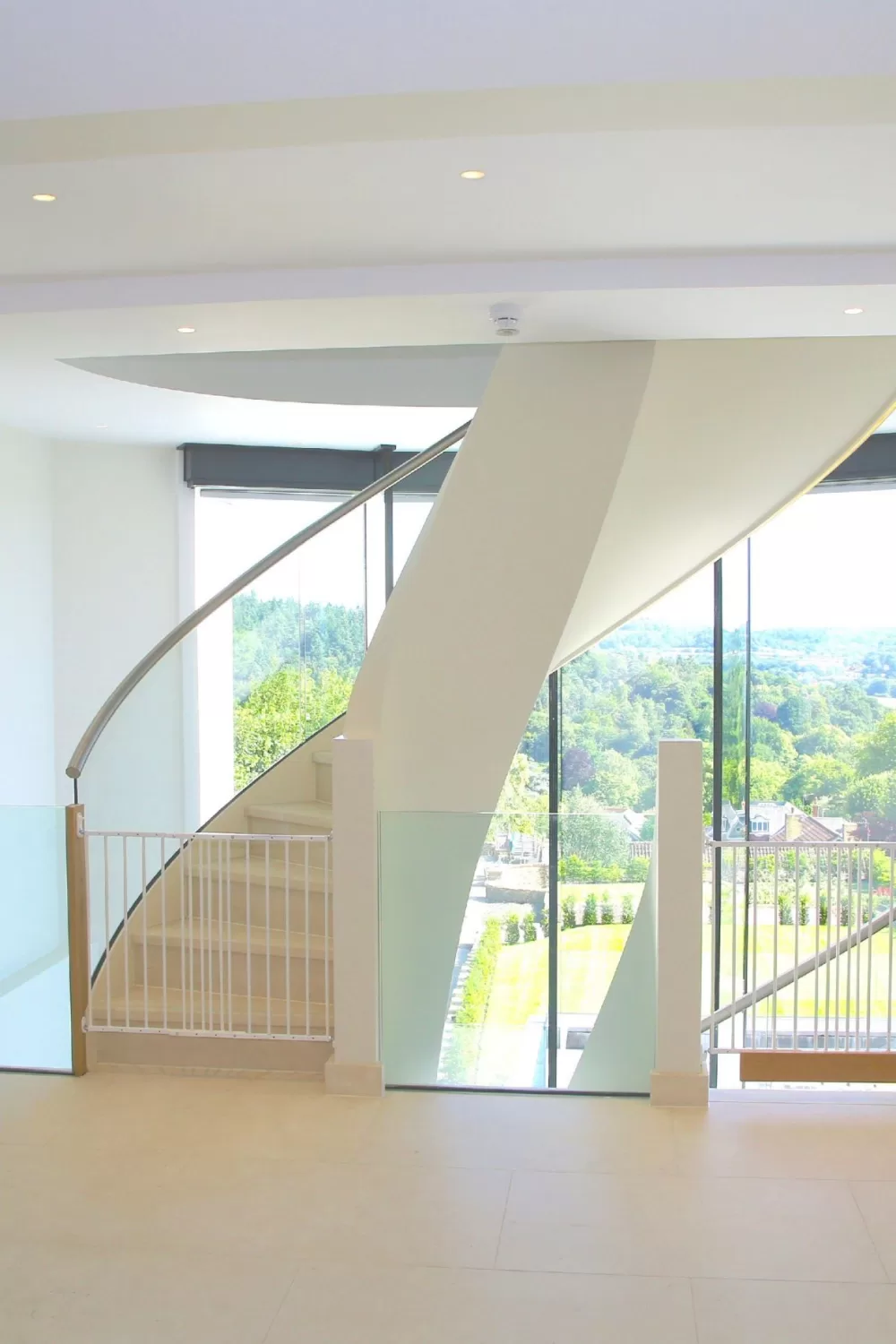

Curved stairs with glass balustrade
