Green Park, Reading

Green Park is a 79 hectare business park in Reading, Berkshire, developed by Prudential and adjacent to the Madejski Stadium.

We were commissioned by ISG Fit Out for a refurbishment project at offices on South Oak Way. ISG selected us for our exceptional experience in working on office fit outs. The helical staircase formed a ground floor feature in the offices entrance area.

Helical office fit out staircase
Project:
450 South Oak Way, Green Park, Reading
Requirement:
Helical Staircase
Architects:
Barr Gazetas
Contractor:
ISG Fit Out
Client:
Oxford Properties

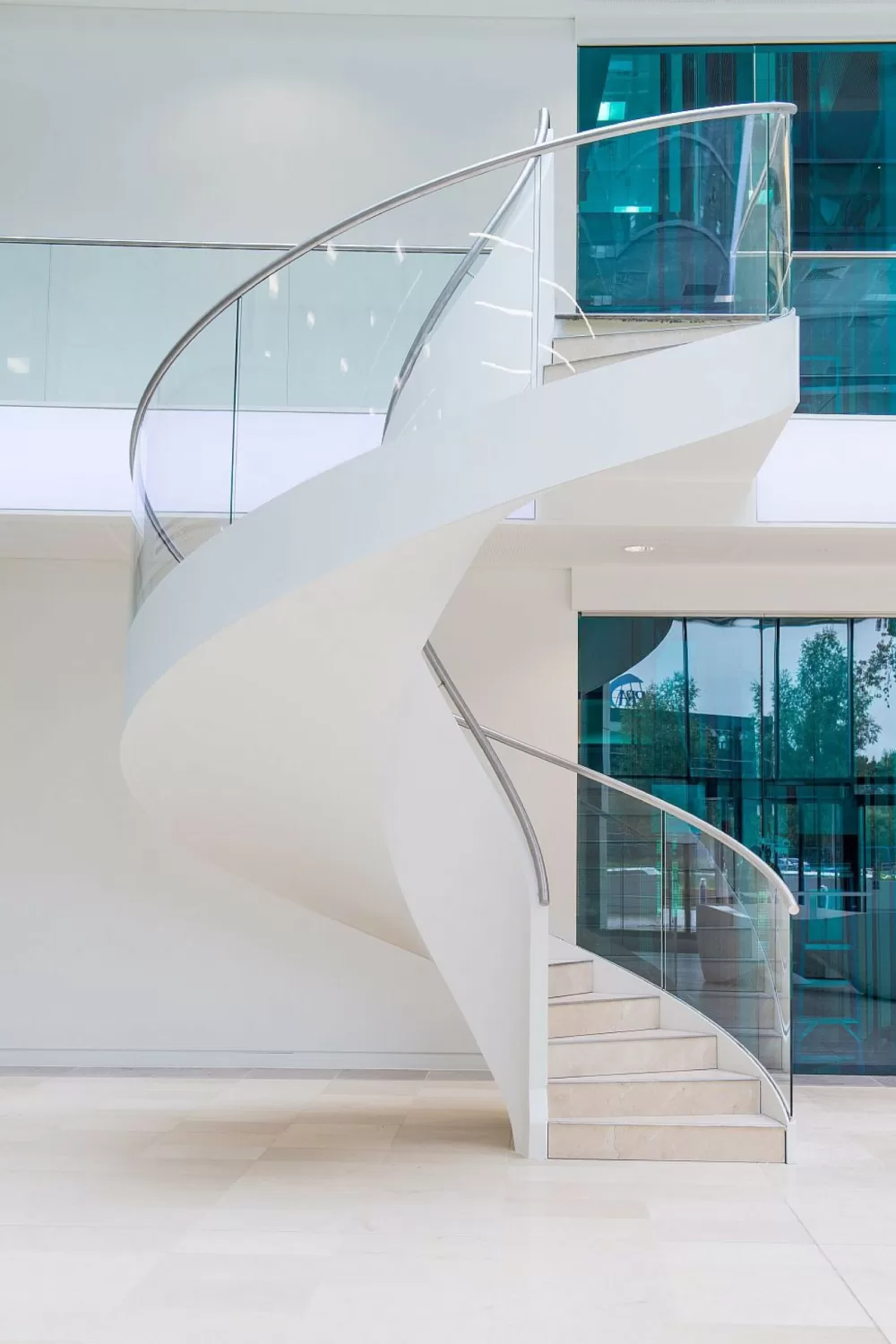

Helical entrance stair

This helical staircase design was built to provide an elegant, well-designed showpiece, while also providing office stairs that were practical, robust and easy to maintain. The stair was fabricated from mild steel with closed risers and stone treads.

At a glance

Floor to Floor Height: 4235mm
Risers: 24 @ 176.5mm closed
Tread width: 1150mm
Tread type: stone clad with closed riser
Stringer: Outer: fabricated channel approx. 300mm x 50mm
Inner: approx. 300mm x 12mm
Balustrade: Outer: radiused toughened glass
Inner: RHS uprights with flat bar top and intermediate rails then clad with boarding to form curved wall.
Handrail: 50mm diameter polished stainless steel
