Falmouth University, Penryn Campus

Spiral UK were commissioned to carry out the design, manufacture and install of a striking entrance stair at Falmouth University's Penryn Campus.

Anne Carlisle the Vice-Chancellor of Falmouth University was looking for a striking feature to draw the eye upon entering the new Creative Bridge building in Penryn. Our commercial staircase certainly met this brief and fitted seamlessly with the overall interior design.

Commercial helical staircase

The building, which connects the AIR building (Academy of Innovation and Research) and the new Launchpad building, was created as a welcoming space for visitors with a look and feel that reflected the University’s innovative and creative brand. Our beautiful helical staircase worked well in such a design led place of study. We were very pleased to show members of the project team around our premises so they could check on the progress of the staircase during its manufacture. Spiral UK managed the staircase design process ensuring a smooth transition from technical drawings through to manufacture and finally install. We undertake this in house to ensure a timely delivery.

Project:
Falmouth University, Penryn Campus – The Link Building
Requirement:
Eye catching helical staircase
Contractors:
EBC Ltd
Architects:
BDP Architects
Interior Design:
20/20 Projects

Commercial helical staircase

The bespoke staircase acts as a focal point in the entrance and leads visitors up to the Vice Chancellor’s office and boardroom.

The helical stair was fabricated from a mild steel base and clad with hard wearing porcelain tiles. Curved glass balustrade was installed to the outside with a white plaster inner balustrade and stainless steel handrail to both sides.

At a glance

Floor to floor height: 4040mm
Risers: 21 @ 1150mm closed risers
Tread width: 1150mm
Tread type: Tray treads in mild steel with porcelain tile infill
Balustrade: Outer: radiused toughened glass Inner: SHS uprights with flat bar rails clad in plasterboard
Handrail: Satin polished stainless steel
Stringer: 300mm x 12mm flat plate
Additional: Stair category E, public stair

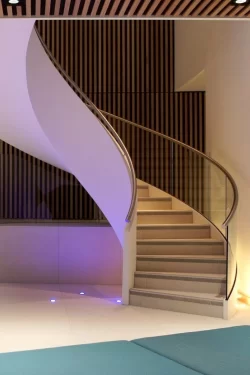

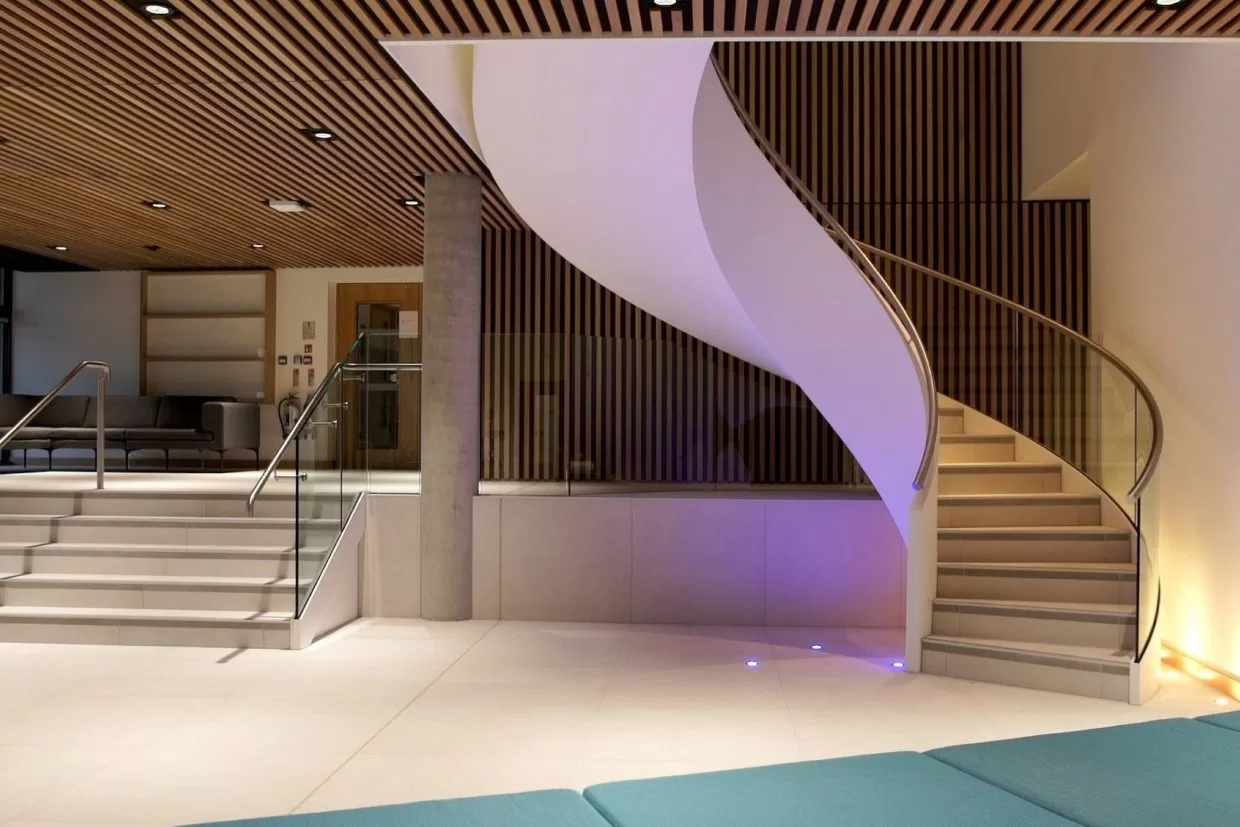

Helical entrance staircase

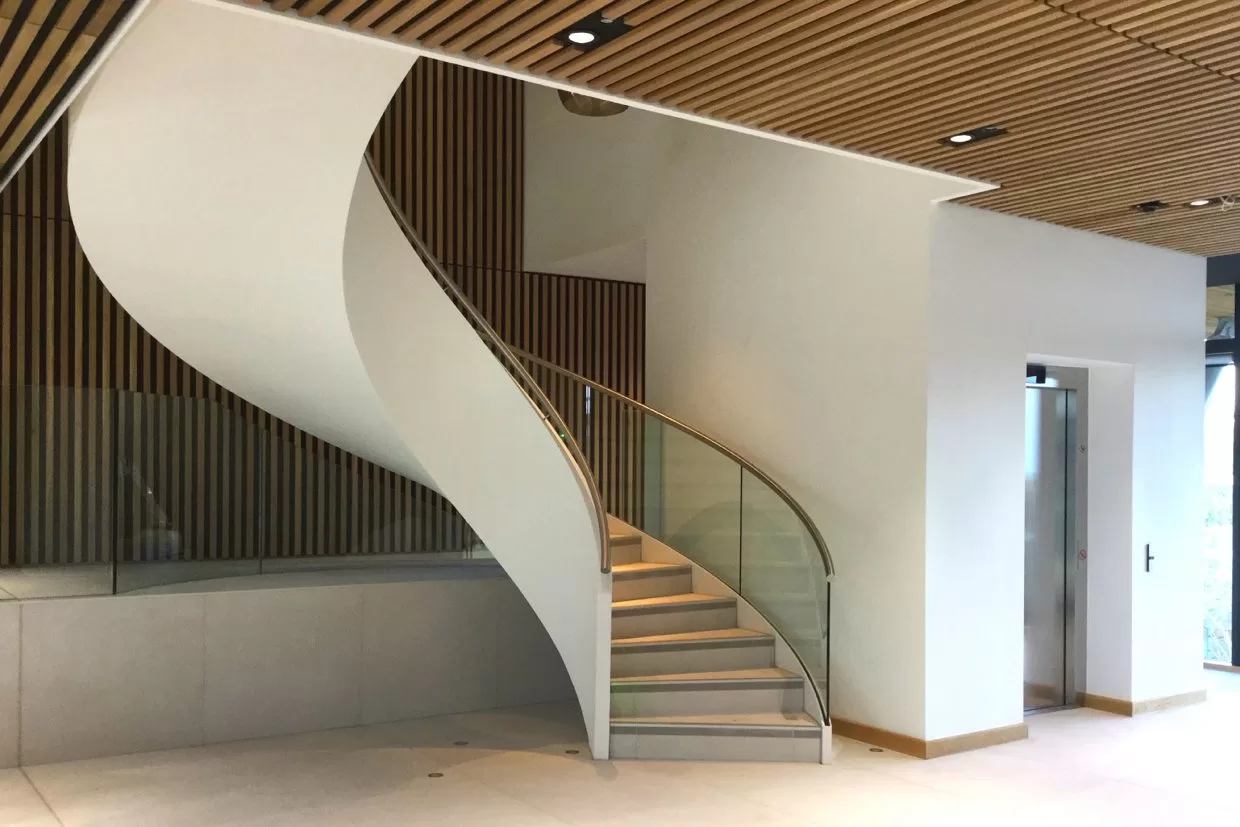

Beautiful commercial helical staircase

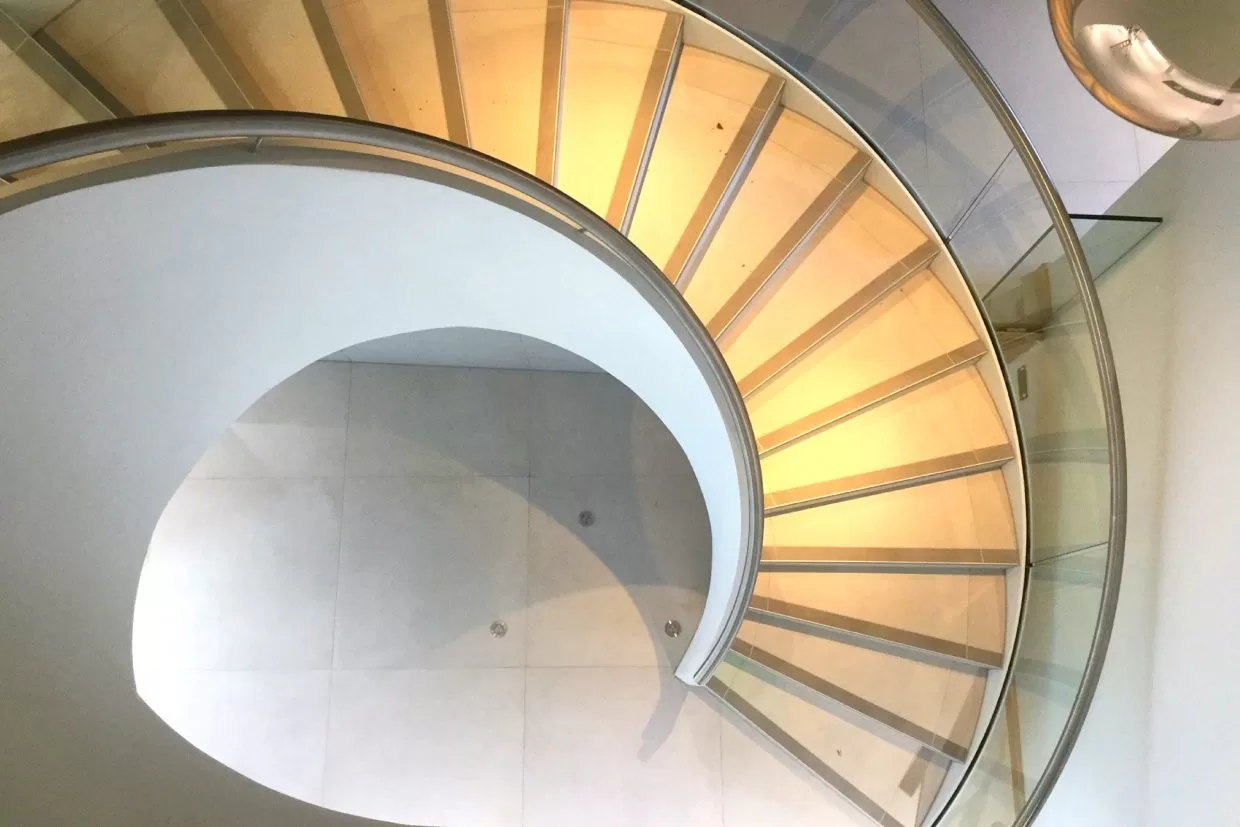

Curve of a commercial helical stair
