Bespoke Staircases

Case Studies

Dunhill Wood, near Bristol

This inspiring project for Spiral UK called for the design and installation of two bespoke staircases for a large new build high-end residence near Bristol.

The outstanding property enjoys beautiful natural light through tower windows and Spiral UK rose to the architect’s challenge to maximise this feature.

light falling on curved staircase

Spiral UK created a bespoke helical staircase to the main entrance, spiral stairs leading to the swimming pool (which has a lifting floor) and an attractive balustrade in the pool area and to the external balconies.

Project:
Dunhill Wood, Bristol
Requirement:
Helical Staircase, Spiral Staircase and Balustrade
Architects:
Elcock Associates
Contractors:
Habourview Construction

Main Entrance Helical Stair

The main stair to the property is a bespoke luxury helical stair leading off from the entrance lobby and designed to capture the light from the tower windows. The bespoke staircase makes a stunning statement feature and is the ultimate in luxury staircase design. The steel treads and risers were clad in stone, with, curved glass balustrade and a leather clad handrail, this bespoke staircase is a masterpiece.

Guide price

£40-60,000

At a glance

Floor to floor height: 3672mm
Risers: 20 @ 183.6mm
Tread width: 19 @ 1200mm wide
Tread type: Smooth steel plate with stone overlay
Balustrade: Curved toughened laminated glass 17.5mm thick
Handrail: 60mm glass mounted timber handrail with leather cladding
Stringer: Mild steel channel stringer
Additional: LED lighting strip to outside stringer

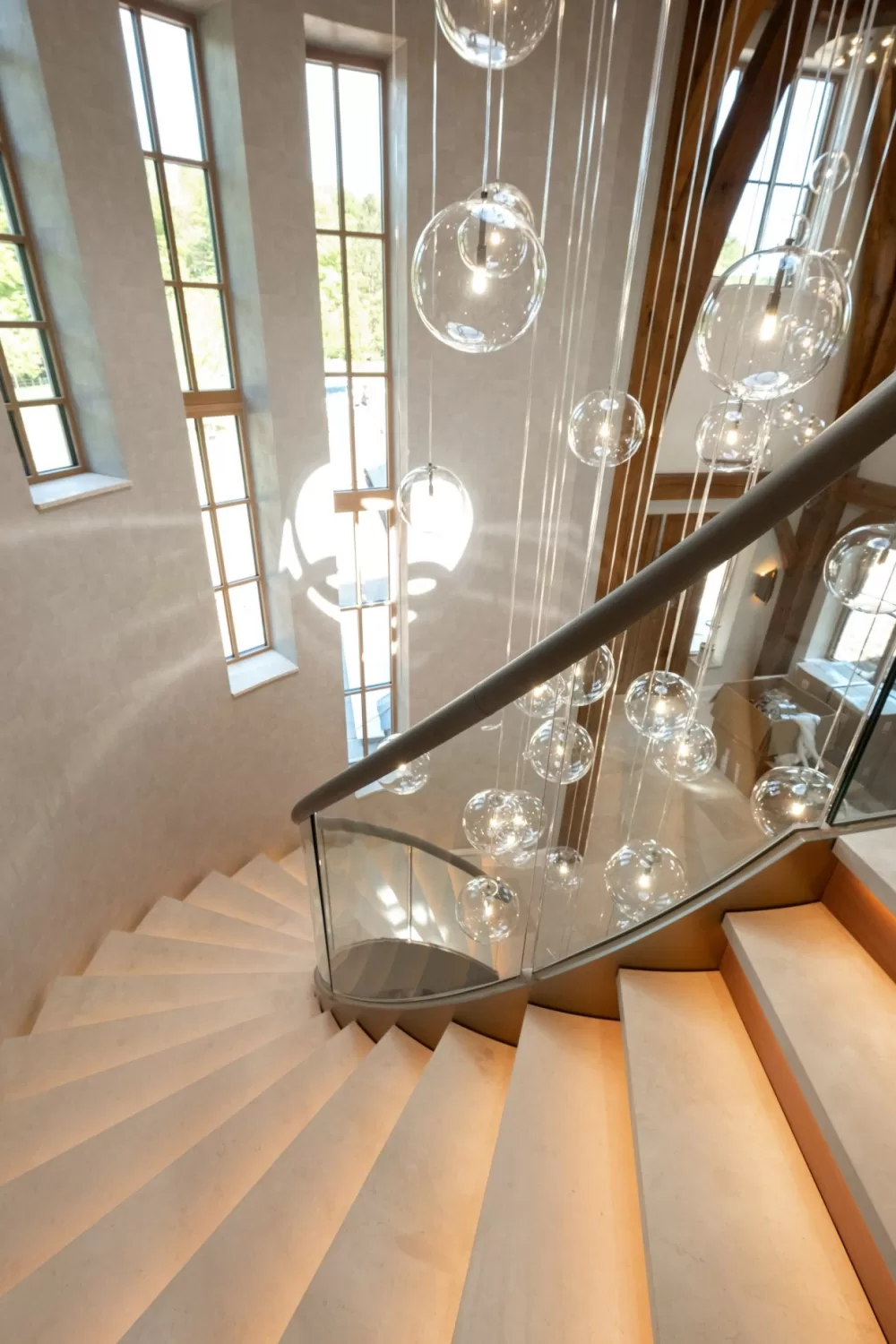

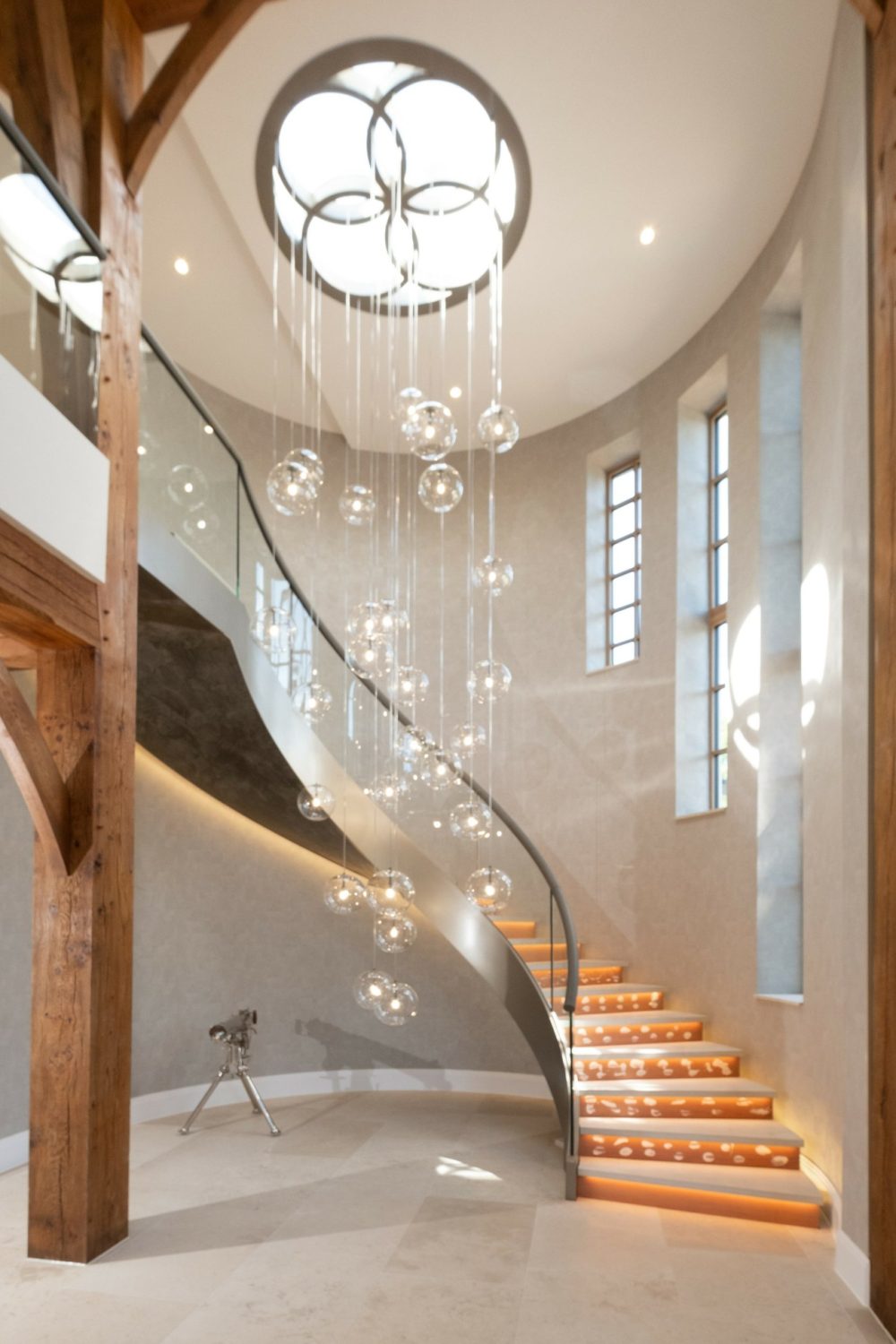

Luxury helical staircase

Poolside Spiral Stair

The concrete spiral staircase was installed over two floors. Leading people from the first floor balcony into the pool area and then down to the ground floor, this bespoke staircase is a great example of contemporary staircase designs, combining functionality with aesthetic appeal. The balustrade is curved glass with a special curved stringer in a high gloss finish, oozing elegance and style.

Guide price

£40-60,000

At a glance

Floor to floor height: Over two floors
Spiral Diameter: 1840mm
Risers: 14 @ 203.2mm, then 18 @205mm
Tread width: 736mm
Tread type: Polished pre-cast concrete treads with white fair face finish
Balustrade: Curved toughened laminated glass 925mm high, 17.5mm thick
Stringer: Mild steel channel stringer with high gloss finish

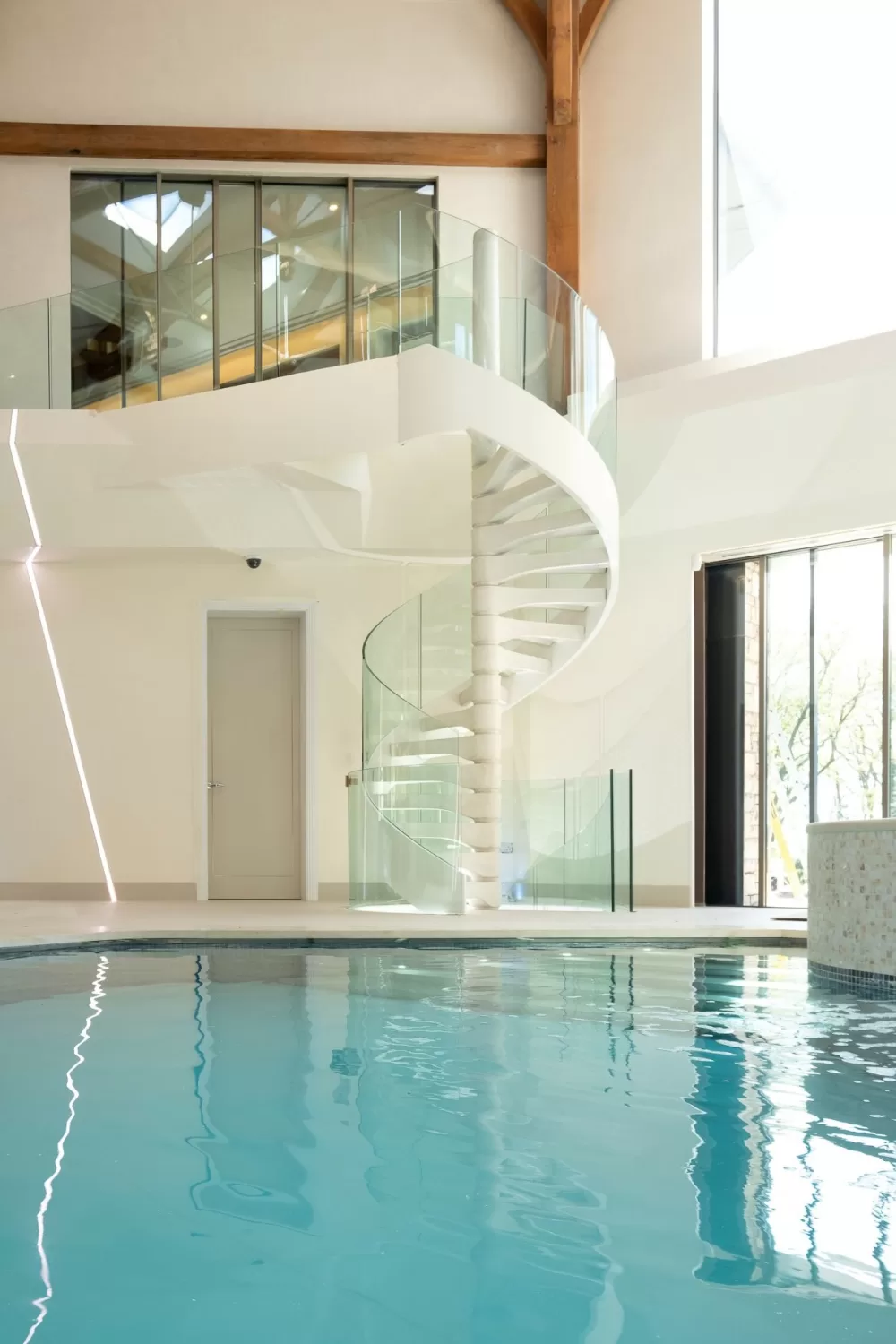

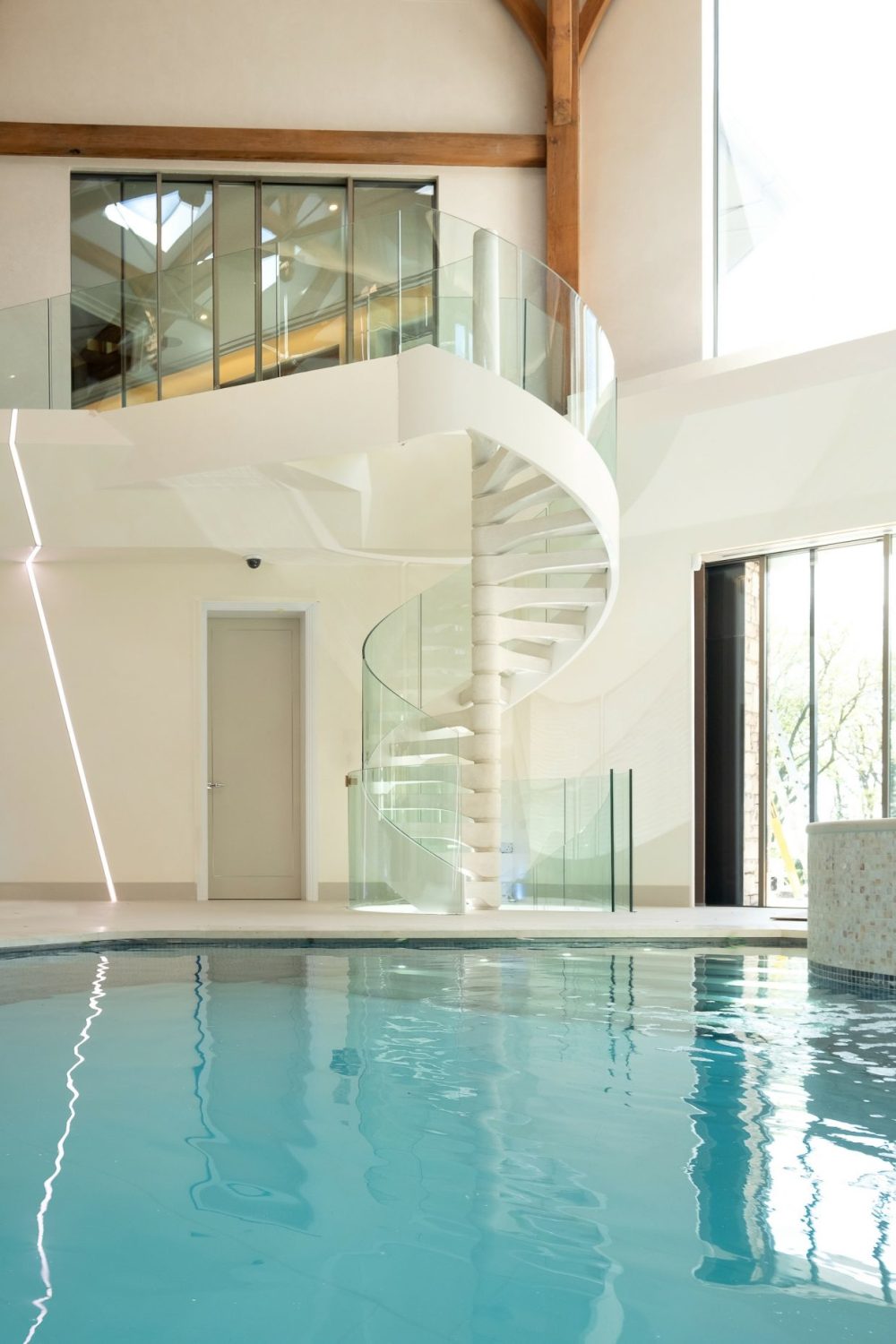

Concrete spiral staircase by pool

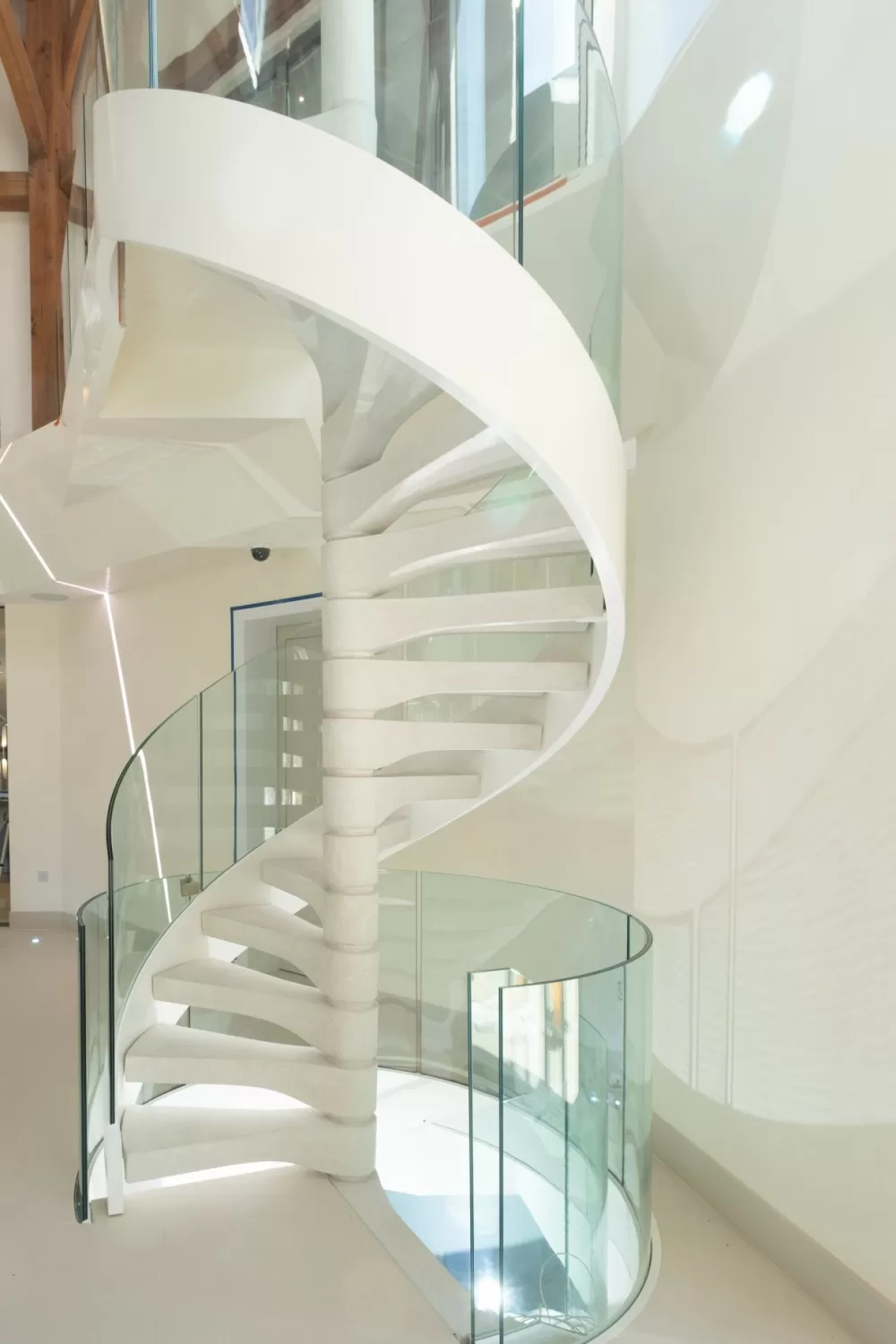

Concrete spiral staircase

External and Internal Balcony Balustrade

Spiral UK installed glass balustrade to highlight a viewing point on the first floor overlooking the pool area. This feature balustrade is made of 17.5mm laminated toughened safety glass panels supported by a glazing channel.

Externally, Spiral UK installed glass balustrade with powder coated handrails to the bedroom balconies. These lovely glass balustrades are the perfect finishing touch.

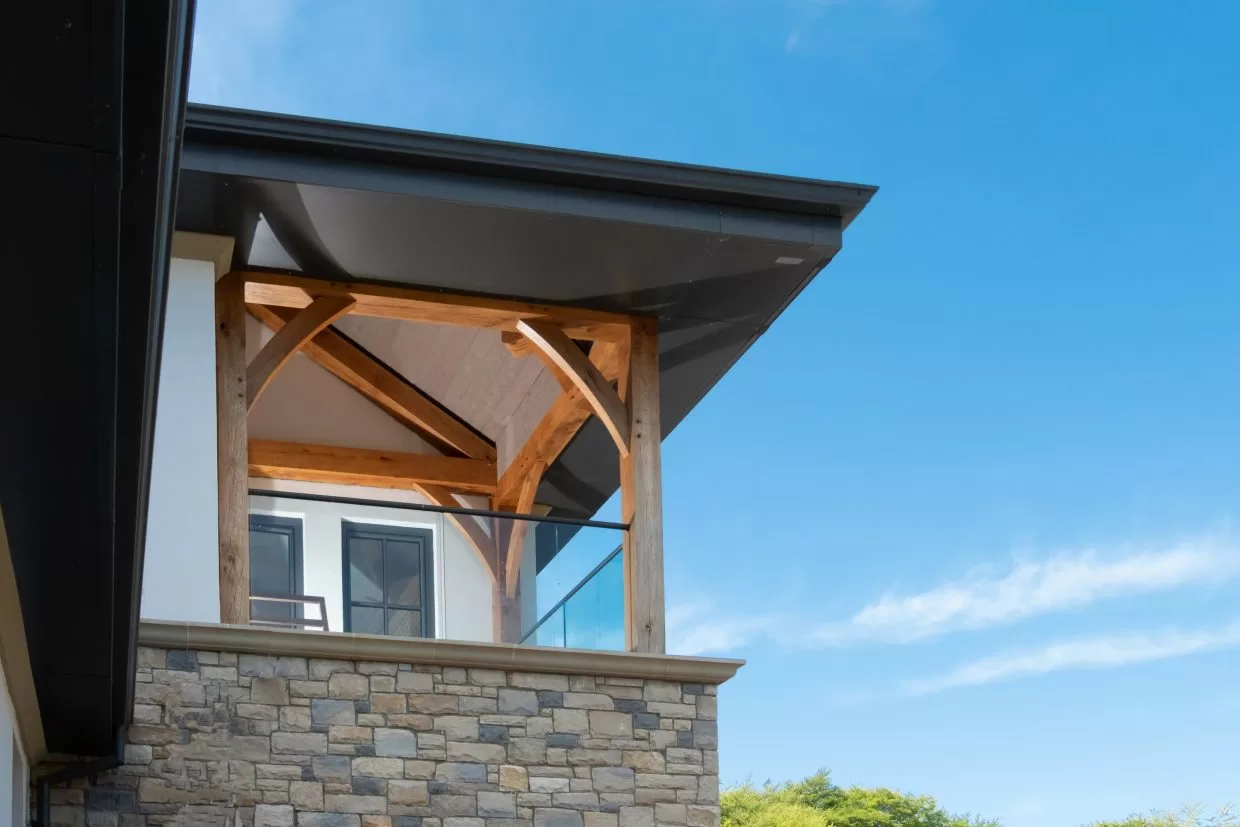

External glass balcony

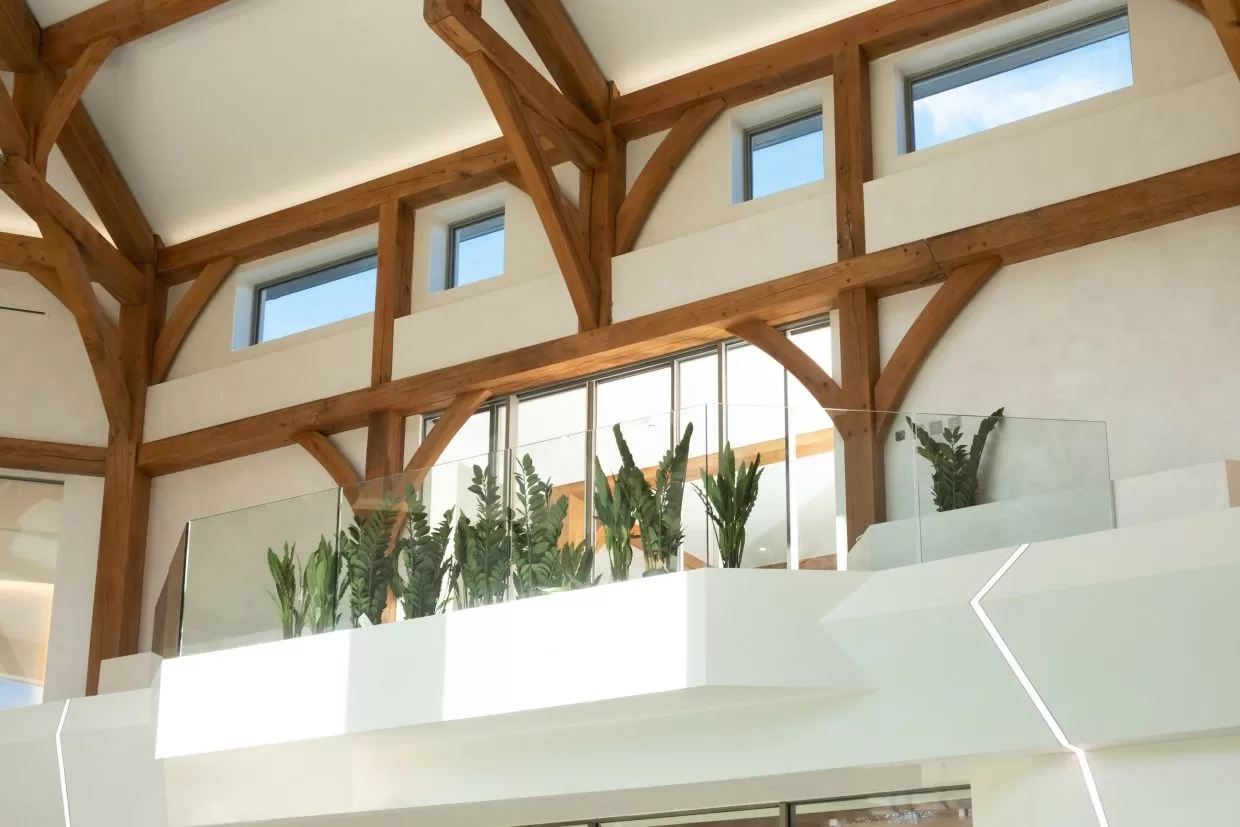

Internal glass balcony
