Cummins UK, Daventry

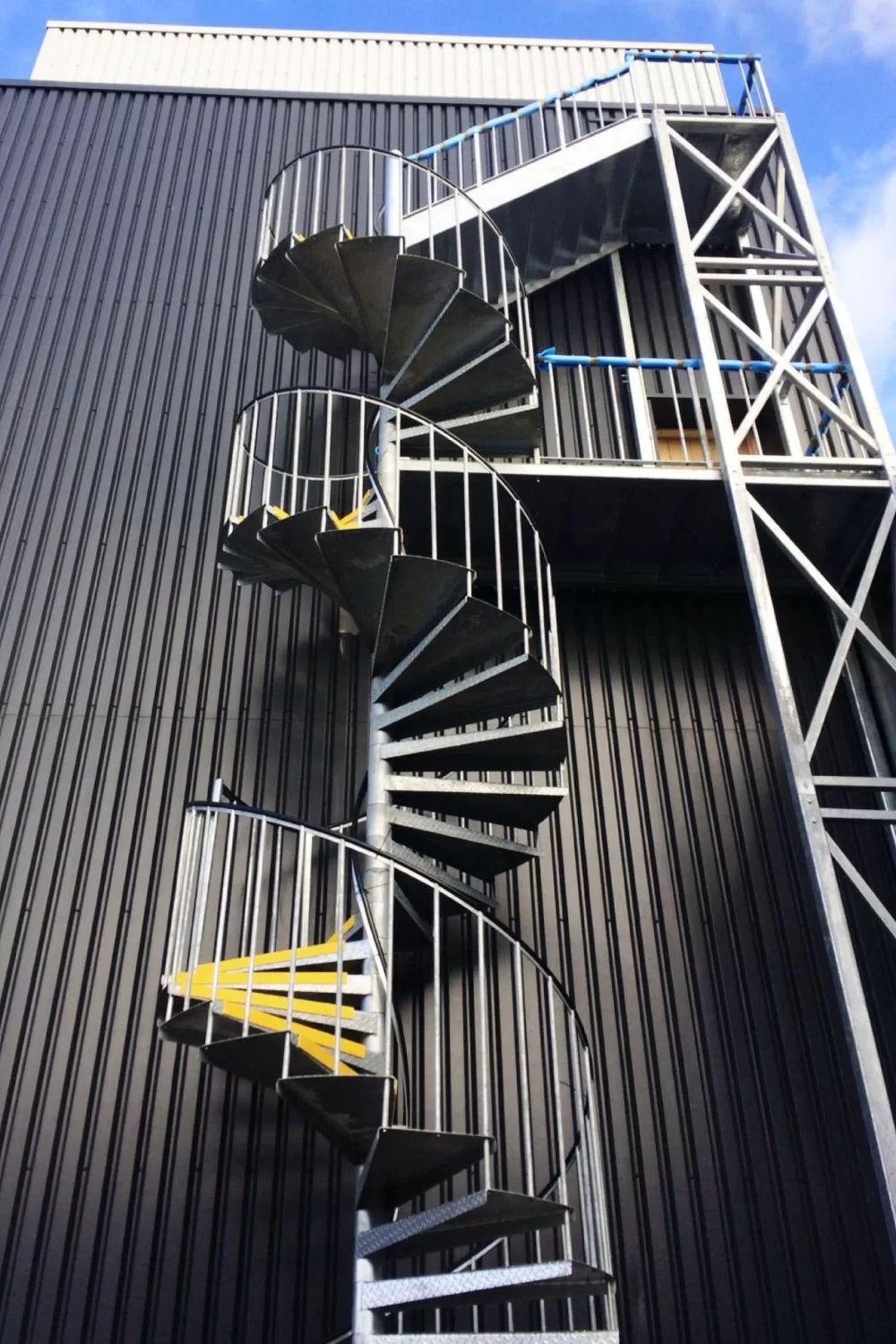

This external spiral staircase really demonstrates that we can produce spiral fire escape staircases of any shape and size. This was one of a range of external escape stairs created for Cummins UK in Daventry, a leading manufacturer of diesel engines.

Working with SDC Builders, we designed and manufactured this large external spiral stair which had a security enclosure at the base, a rest landing, middle landing and a top landing that incorporated a section of straight treads right at the top.

External spiral staircase
Project:
Cummins UK, Daventry
Requirement:
External spiral escape staircase
Contractors:
SDC Builders
Client:
Cummins UK

Steel Spiral Staircase

This imposing external spiral staircase was fabricated in mild steel galvanised to ISO EN1461. All our fire escape stairs are compliant with British Standard BS5395 Part II (Code of Practice for the design of helical and spiral stairs 1984).

At a glance

Floor to Floor Height: 7625mm + 4334mm
Spiral Diameter: 349.4mm
Risers: 40 @ 190.63mm, 22 @ 197mm, Open
Tread Radius: 50 @ 1050mm
Clear Tread Width: 828.2mm
Tread type: Durbar plate
Balustrade: 2 x 22m diameter uprights per tread with 40mm x 6mm flat handrail with PVC capping
Landing: 3500 x 1200mm landing in durbar plate
Additional Info: Perforated sheet panel security enclosure to the base of the stair with outward opening gate.
