Case Studies
Carbis Bay Hotel Lodges, Cornwall
This project, for a development of luxury beach lodges and suites at Carbis Bay Hotel, overlooking St Ives Bay in Cornwall, was made up of spiral staircases to the beach lodges and straight spine beam stairs to the suites.
All the bespoke staircases serve two levels leading up to the sundecks and in order to keep the rooms as bright and sunny as possible, the stairs have open risers to let light flow through.
The treads are pre-cast concrete in a white fair face finish. This complements the light airy feel of the rooms and enhances the muted coastal tones of the interior design.
- Project:
- Carbis Bay Hotel - luxury beach lodges
- Requirement:
- Spiral stairs and straight spine beam staircases
- Contractors:
- FMW Construction
- Client:
- Carbis Bay Hotel

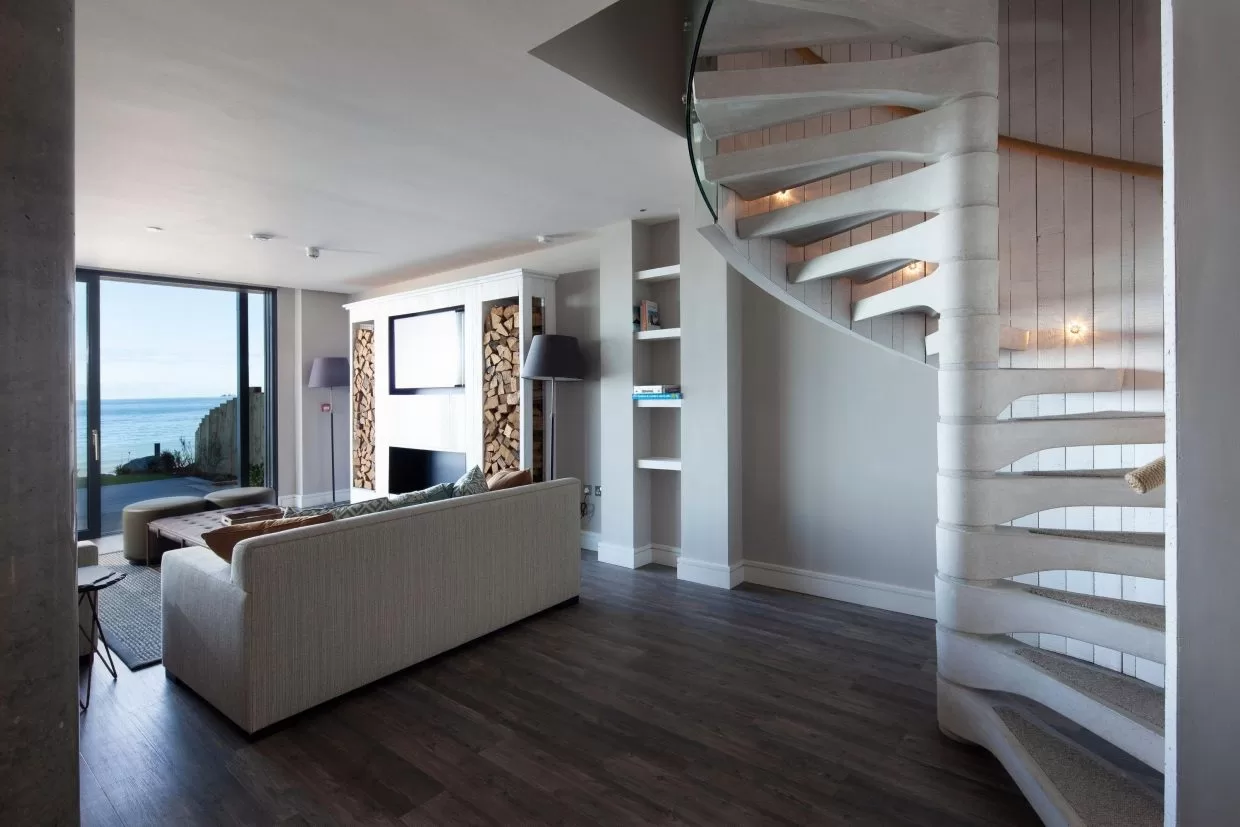

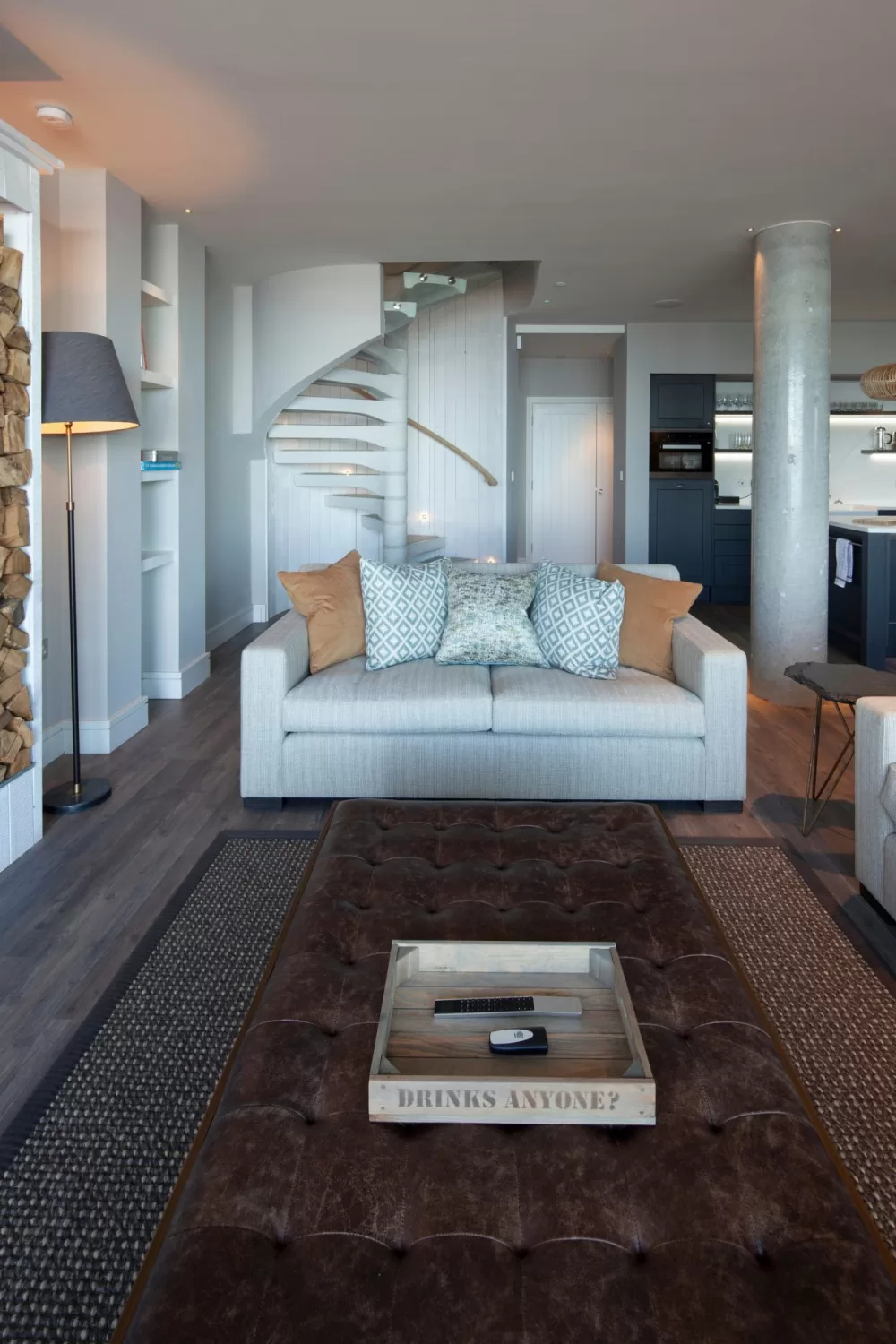

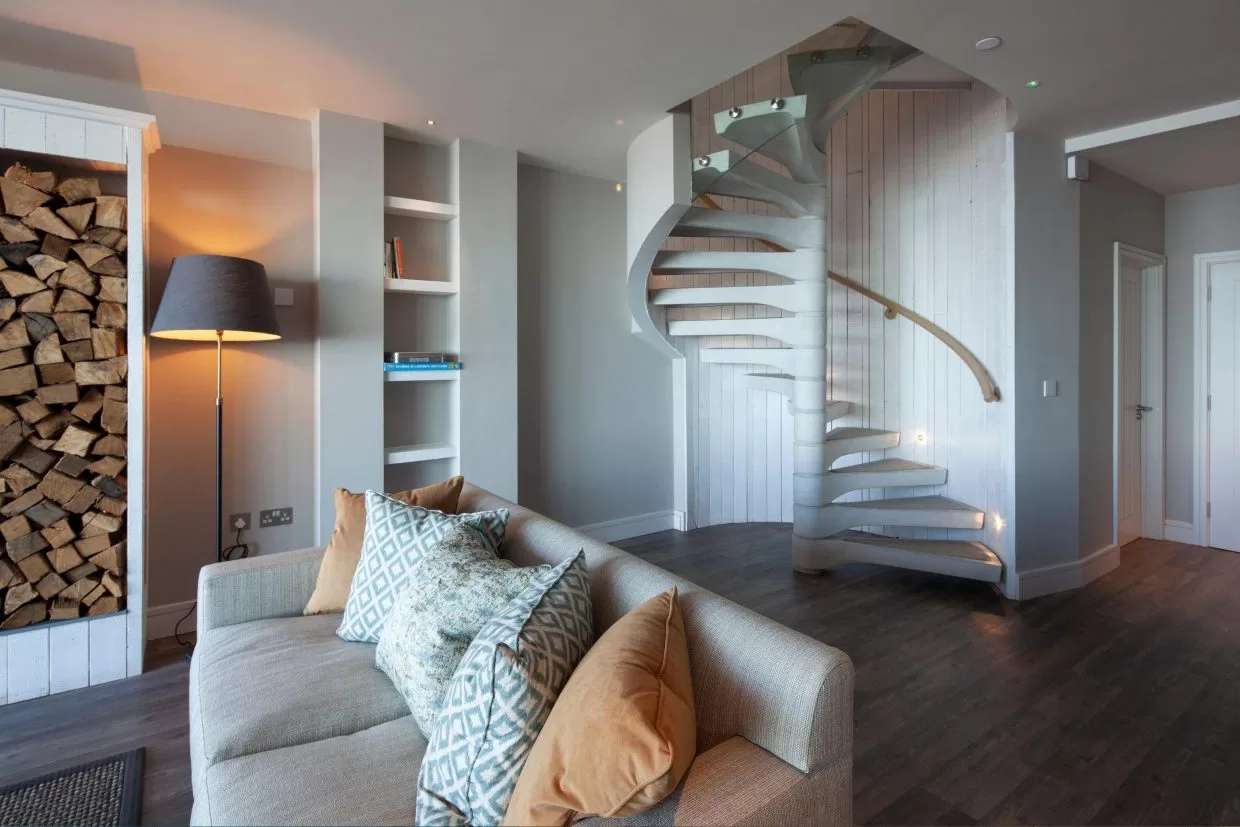

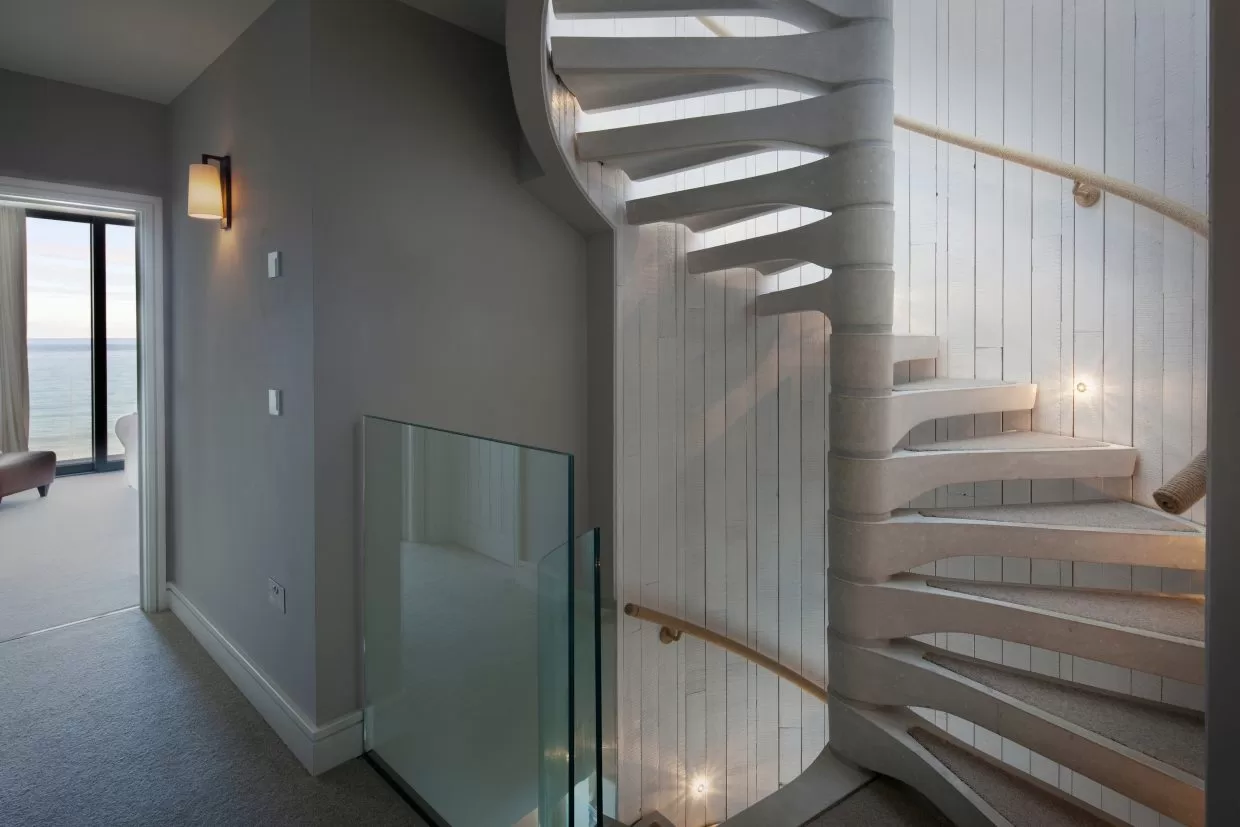

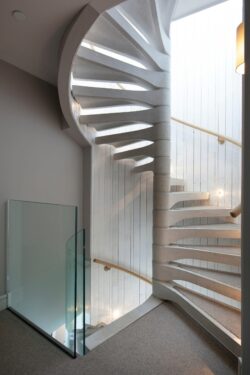

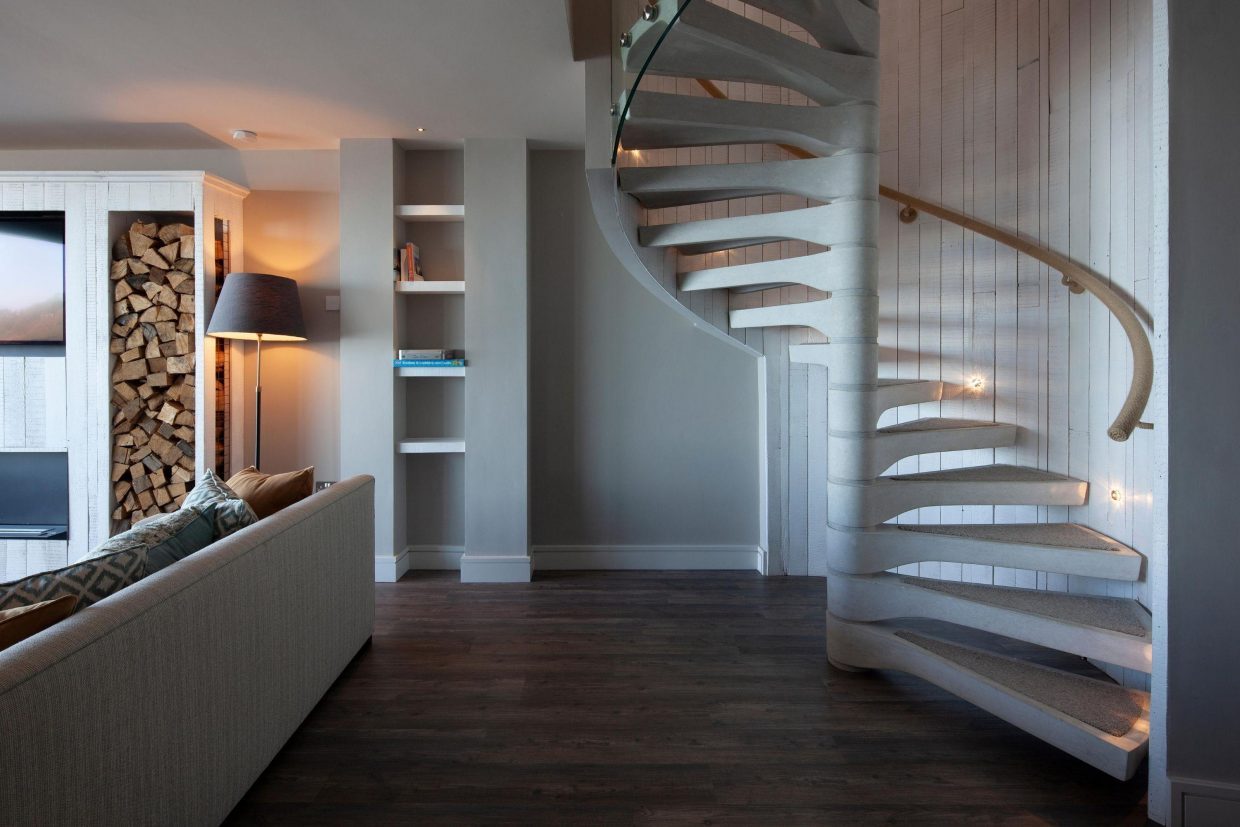

Concrete Spiral Staircase
When it comes to staircase design, concrete staircases are becoming a popular choice. The material is hardwearing and can help reduce noise as well as look stunning. We developed five concrete spiral staircases for this project which suited the design of the building perfectly.
Guide price
£10,000
At a glance
| Floor to floor height: | 3190mm + 3340mm |
| Spiral Diameter: | 2040mm |
| Risers: | 16 @ 199.4, 17 @ 196.5mm, Open |
| Tread Radius: | 31 @ 1050mm |
| Clear Tread width: | 850mm |

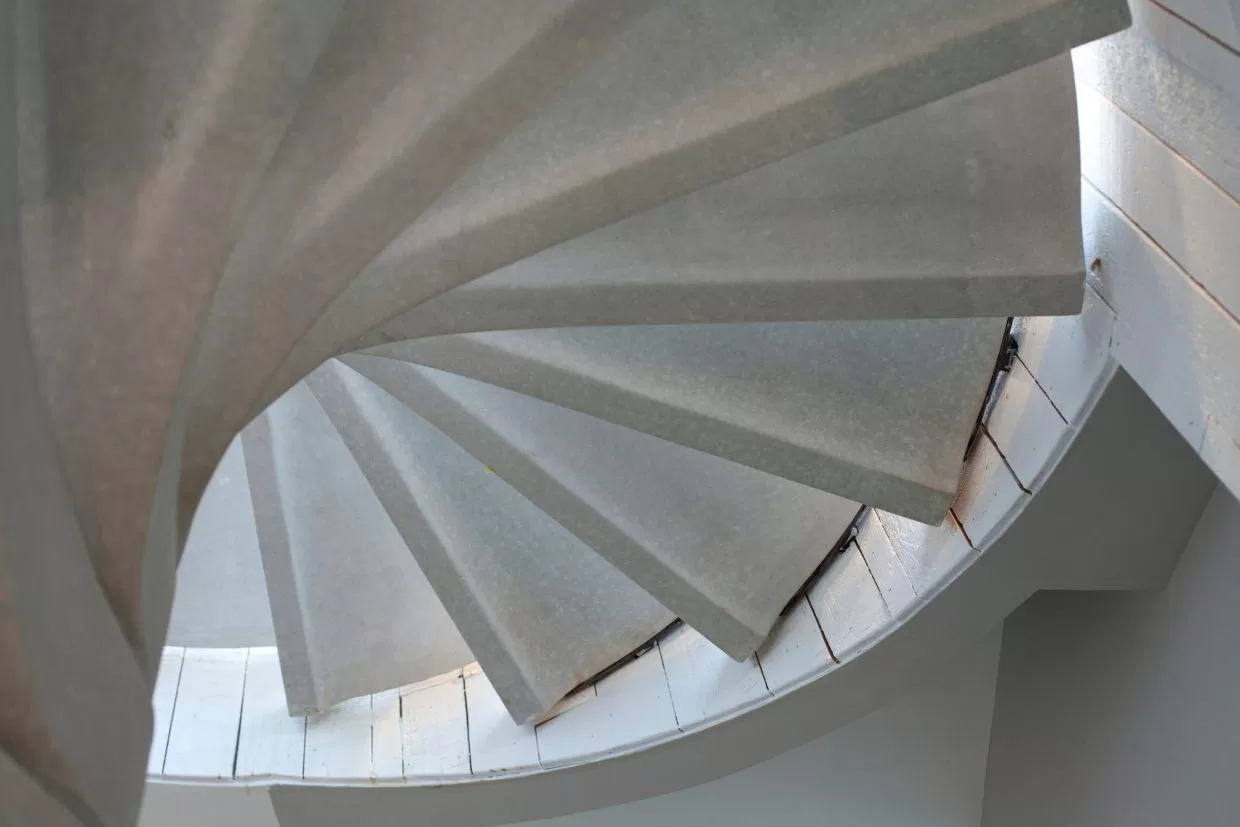

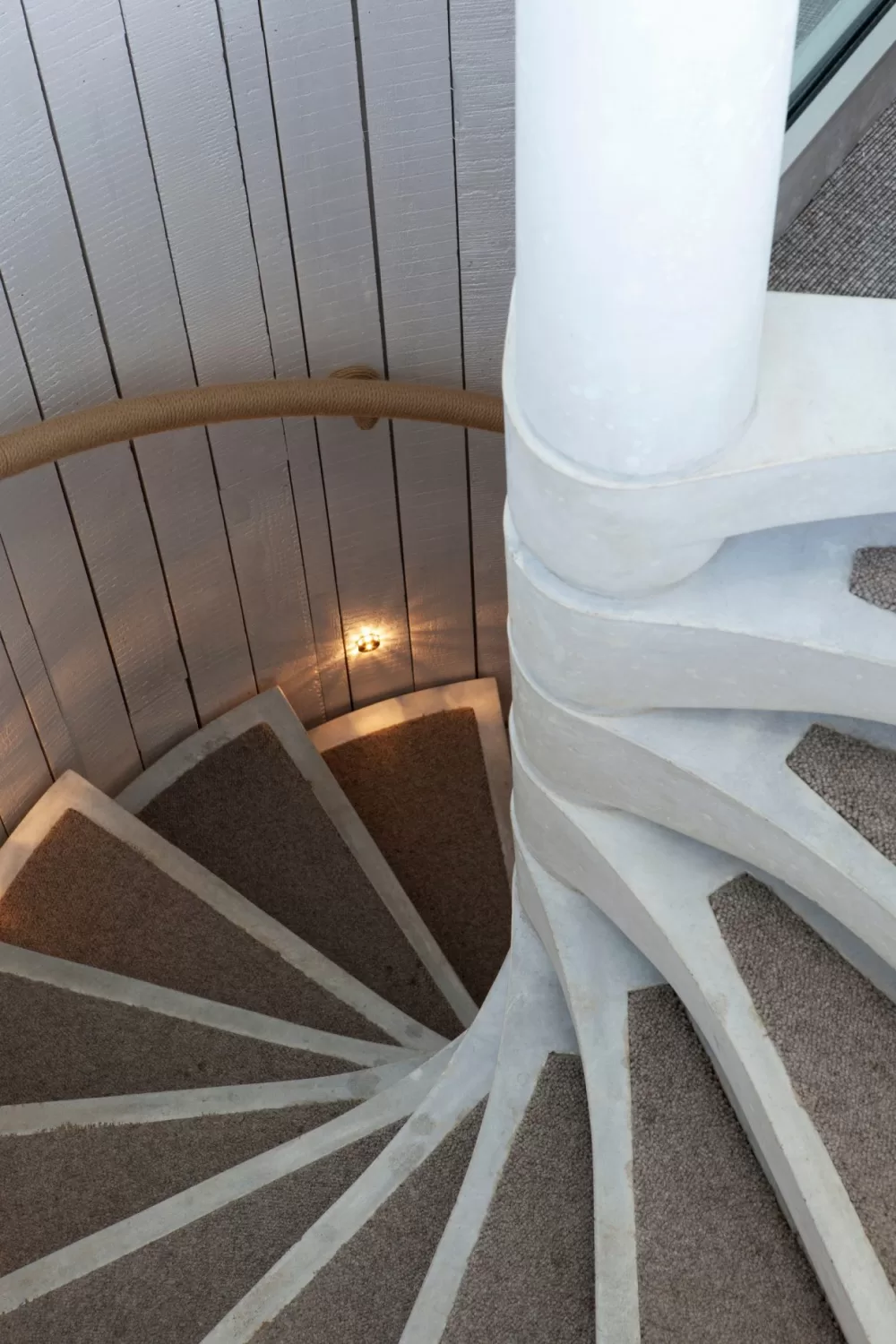

| Tread type: | Pre cast concrete with a white fair face finish and a 12mm recess at the top for carpet |

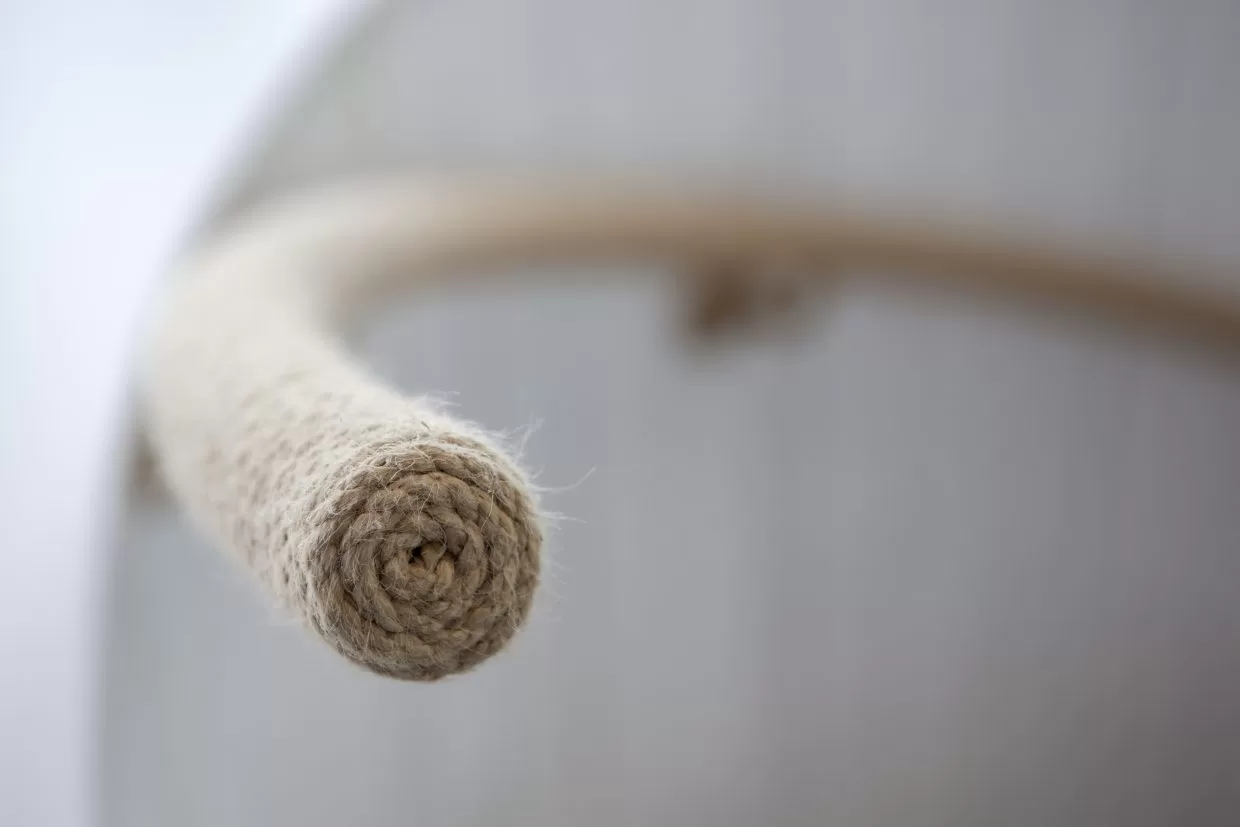

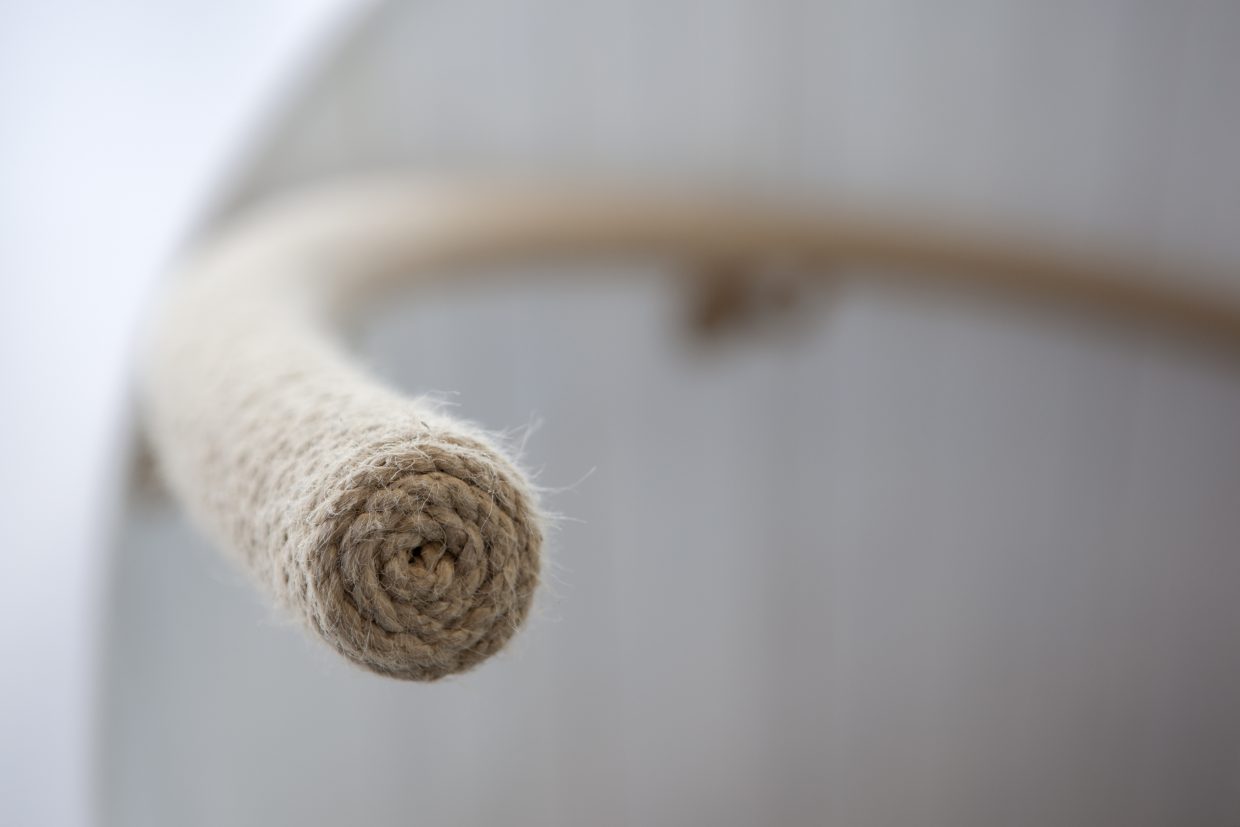

| Balustrade: | Toughened laminated glass wall with rope clad handrail |
| Additional Info: | Matching glass balustrade to landing. |
Straight Spine Beam Staircase
The powder coated spine beam going up the centre of the underneath of the treads adds to the contemporary design of these high-end bespoke staircases. We created three straight staircases for the suites in this project. They add to the luxury feel of the accommodation.
Guide price
£20-30,000
At a glance
| Floor to floor height: | 3175mm + 3320mm |
| Risers: | 15 @ 211.7mm, 16 @ 207.5mm, Open |
| Tread Radius: | 17 @ 800mm, 8 angled, 2 intermediate landing treads and 2 with a reduced depth |
| Clear Tread width: | 800mm |
| Tread type: | Pre-cast concrete with a white fair face finish and a 12mm recess at the top for carpet |
| Stringer: | RHS mild steel |
| Balustrade: | Structural glass with a handrail |
| Additional Info: | Toughened glass balustrade to landing. |
