Alconbury Weald Enterprise Campus, Huntingdon

We manufactured and installed an eye-catching external spiral staircase for the flagship Incubator building at Alconbury Weald Enterprise Campus in Cambridgeshire, a business space for small and start-up businesses.

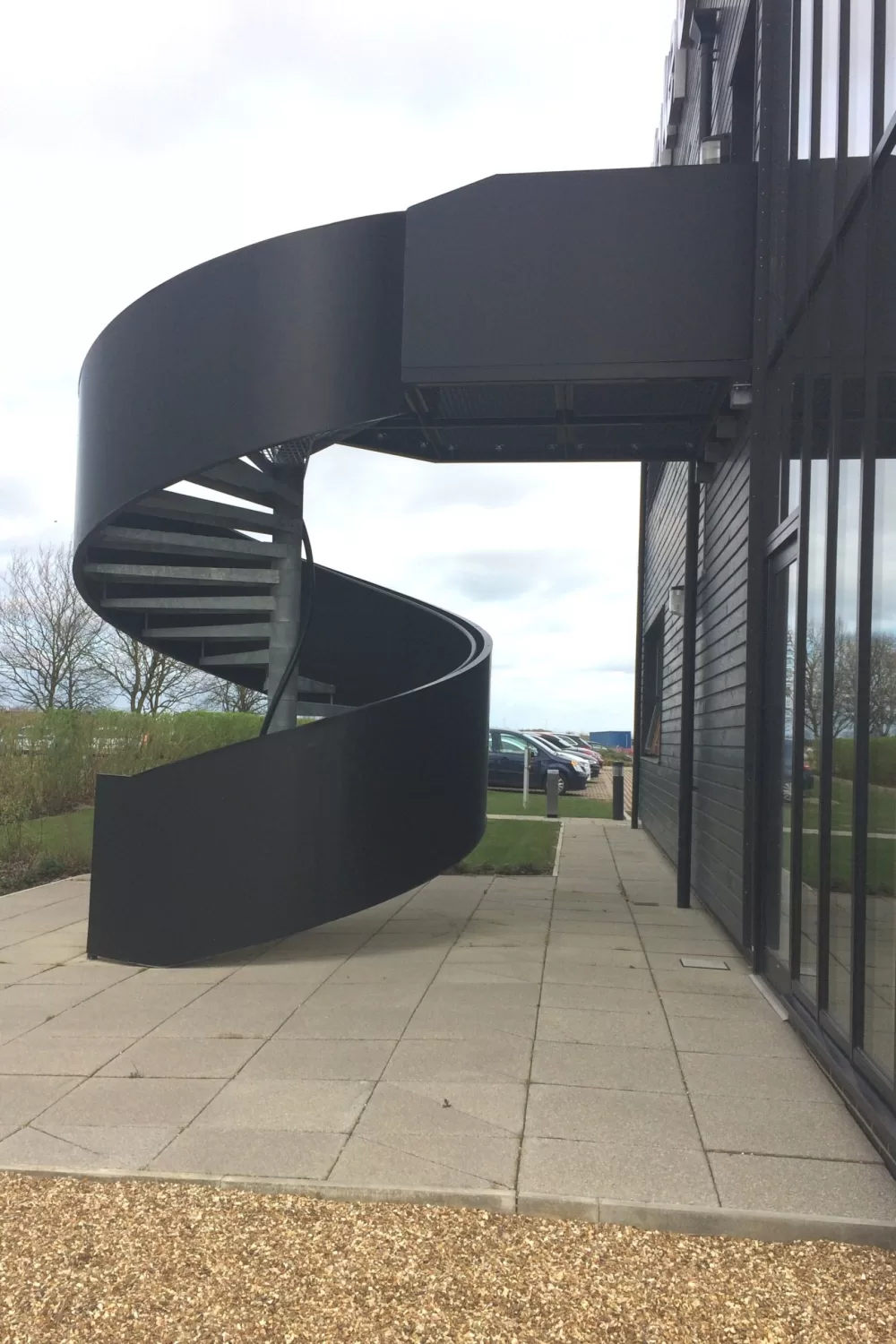

External spiral staircase with black balustrade
External spiral staircase with black balustrade
Alconbury Weald Enterprise Campus, Huntingdon
External spiral staircase
Kier Construction
Allford Hall Monaghan Morris

External spiral staircase

These were no ordinary fire escape stairs. The black clad steel balustrade enhanced the curve of the staircase and matched the colour and style of the building design. The shape of this steel spiral staircase makes a striking feature on the side of the Incubator building.

This project demonstrates our unique skills at designing and building spiral fire escape stairs.

At a glance

Floor to floor height: 3600mm
Spiral Diameter: 2210mm
Risers: Open
Tread Radius: 19 @ 1500mm
Clear Tread width: 1105mm
Tread type: Open mesh, mild steel galvanised to BS729
Balustrade: SHS framework with 2mm thick cladding to inner and outer sides powder coated to RAL 9017
Landing: 3200mm x2200mm open mesh incorporating wheelchair refuge area

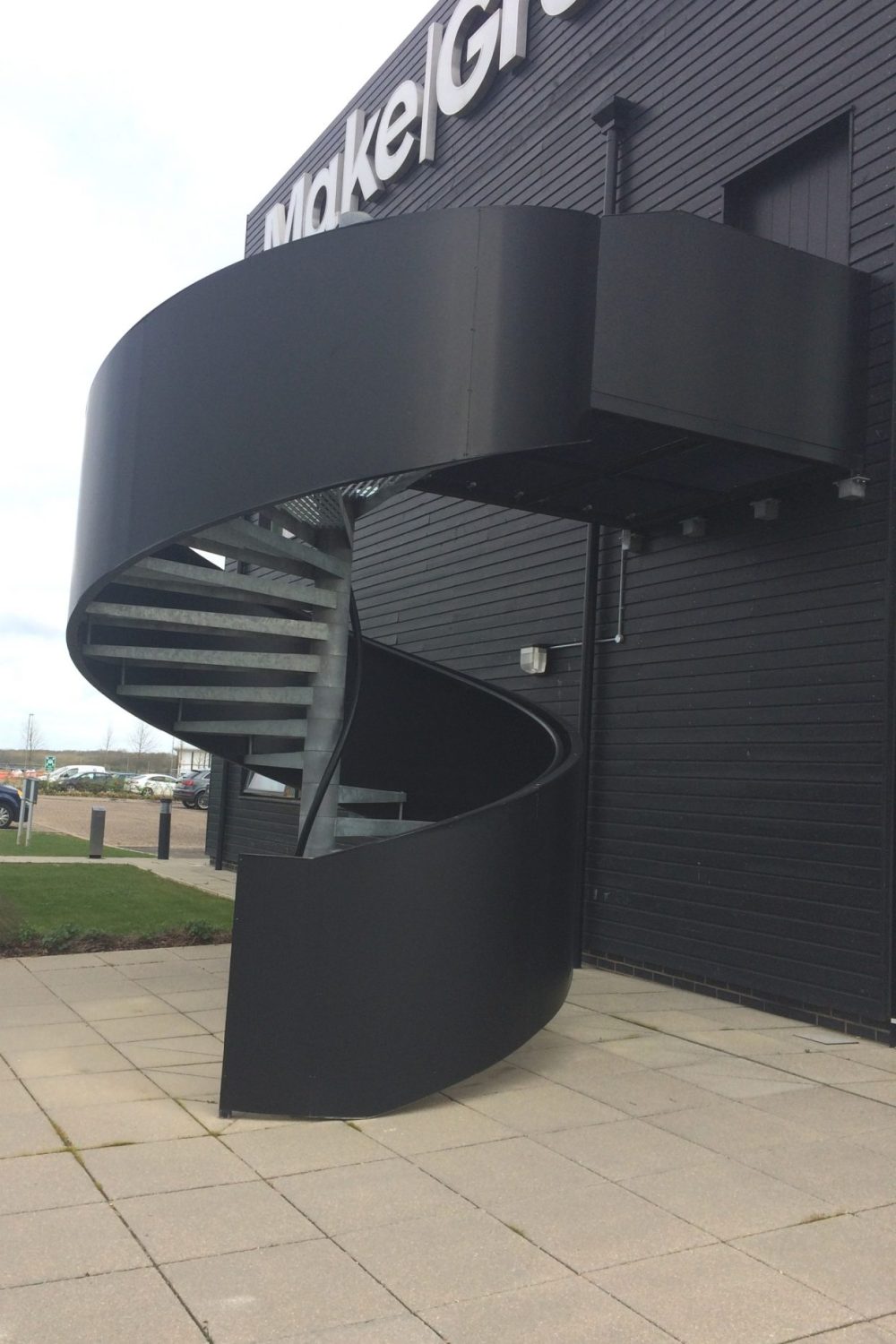

Black external fire escape staircase
