Case Studies
Victorinox, Oxford Street

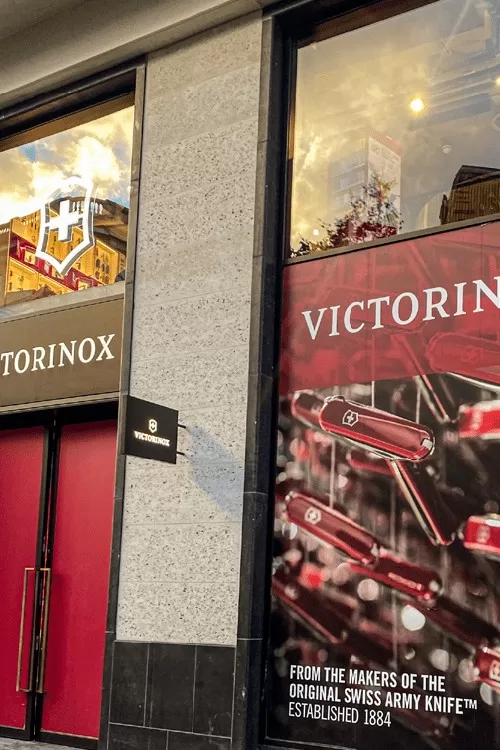

Celebrating the 125th anniversary of the iconic Swiss Army knife, Victorinox recently unveiled its brand-new London flagship store on 388 Oxford Street.
Spiral UK were contracted to design, manufacture and install a feature helical staircase. With brushed steel used across key fixtures and fittings, the staircase was designed with this in mind.
The helical stair was fabricated from mild steel with closed risers and stone treads by the client’s team.

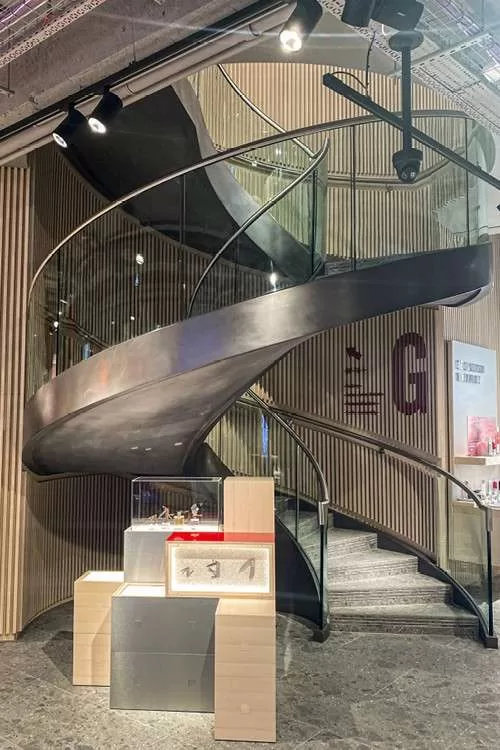

The staircase position and the clever mirrored ceiling in the shop enhances the spiralling glass and stainless-steel feature enticing shoppers towards it.
- Project
- Victorinox, Oxford Street
- Requirement
- Helical staircase for a shop
- Client
- Kiwi Build & Design
- Architect
- DB3

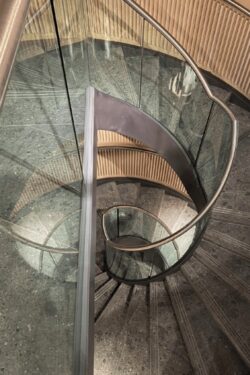

Helical Commercial Staircase

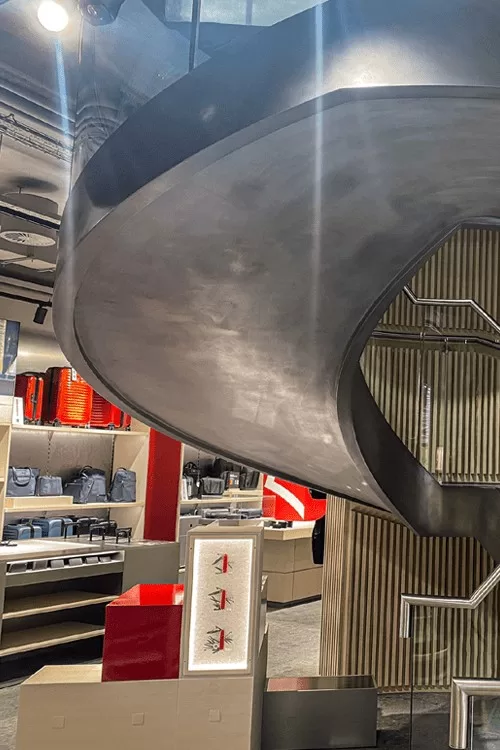

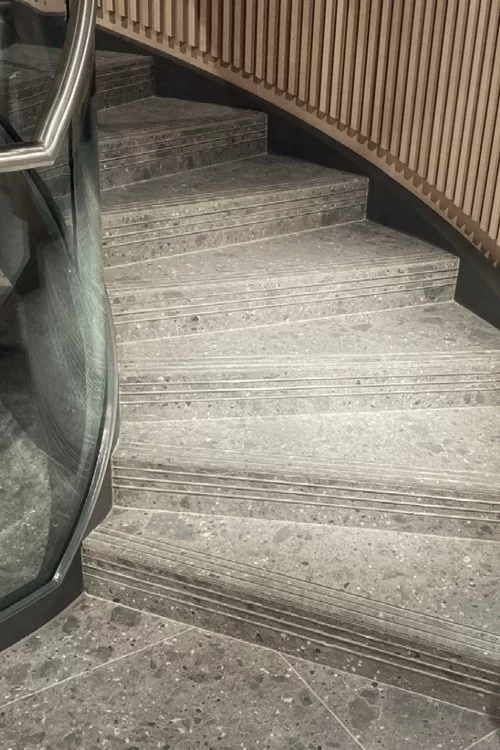

This feature helical staircase was manufactured in steel with closed risers and treads with stone treads added by the client's team.

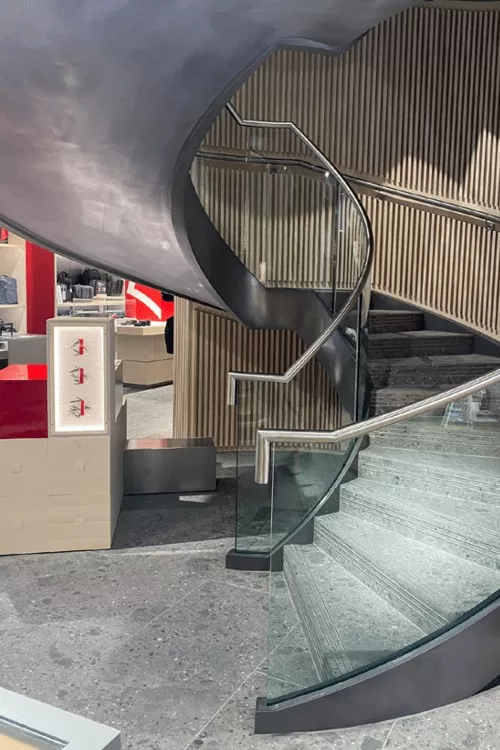

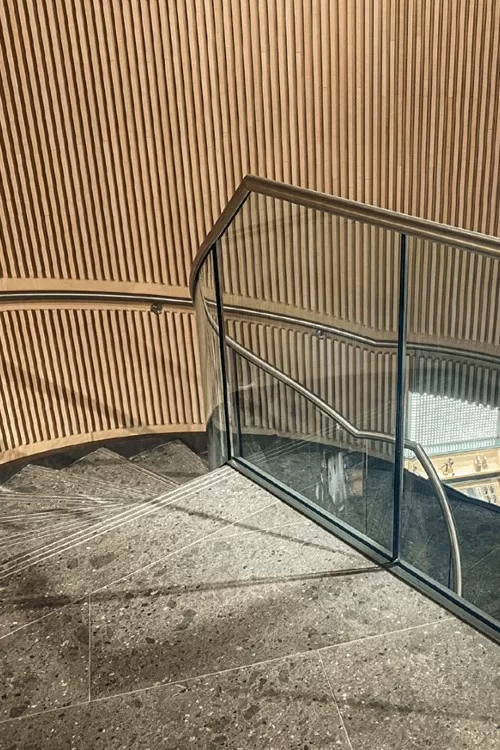

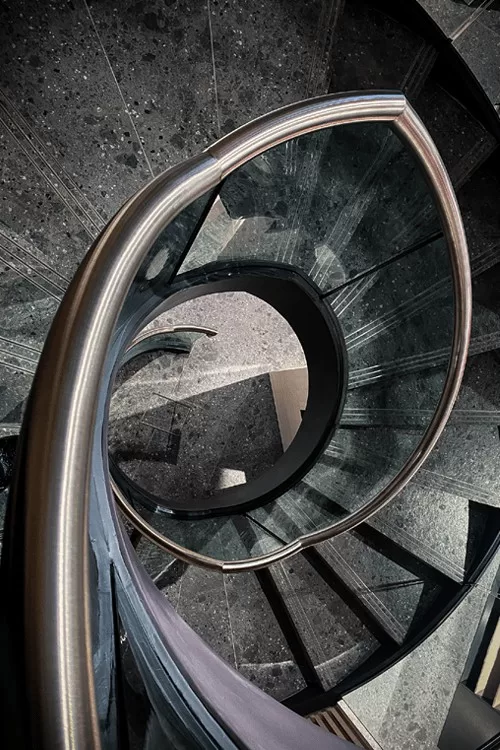

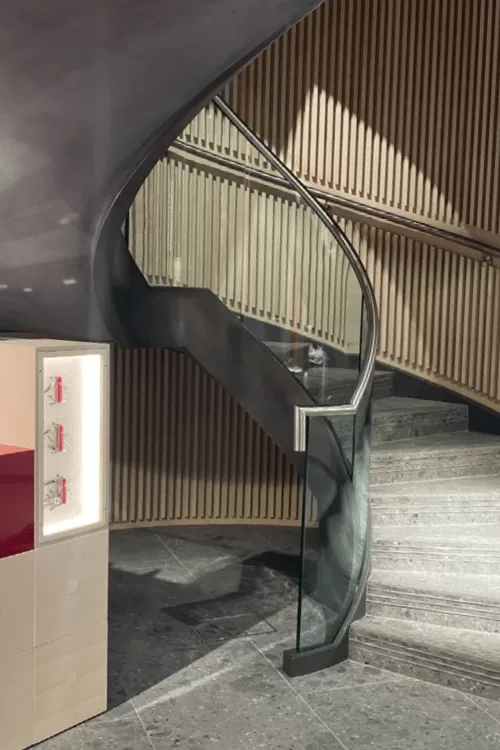

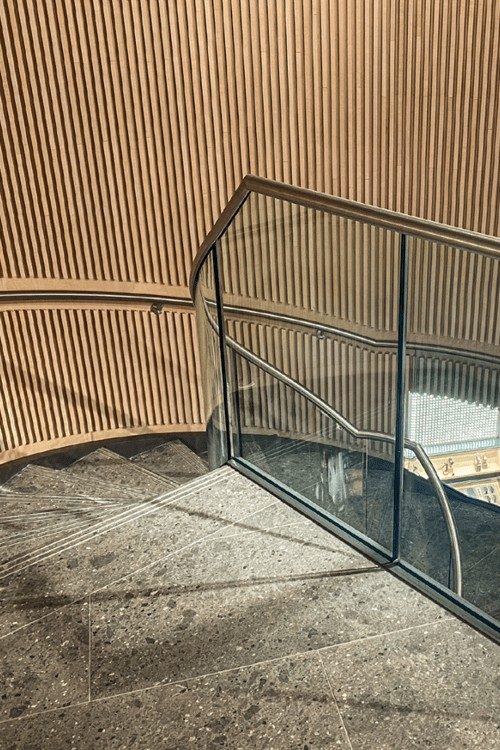

The frameless glass balustrade was installed with a stainless steel capping handrail to complement the mirrored ceiling in the shop.
At a glance
| Floor to floor Height: | 4518mm |
| Risers: | 30 @ 151mm |
| Tread Width: | 1200mm |
| Tread Type: | Folded plain plate treads |
| Balustrade: | Frameless Glass |
| Handrail: | Stainless Steel |
| Stringer: | 300mm x 40mm mild steel fabricated channel |
