Spiral escape stair for Stowe School

This steel spiral staircase was for the historic eighteenth-century Temple Boarding House at Stowe School, near Buckingham.

The school required a fire escape staircase as part of alterations to the living accommodation. We dismantled and replaced an existing fire escape and extended it to a newly installed door giving a means of escape.

The spiral staircase we installed was over 10 metres high and designed to BS 5395 Part II. As a Category C Small Semi-Public Stair. This type of stair is intended for use by a limited number of people, some of whom may be unfamiliar with the stair e.g. in factories, offices, shops.

Steel spiral fire escape stairs
Steel spiral fire escape stairs
Requirement:
Spiral fire escape stairs
Contractor:
Redfield Construction

Fire escape spiral stair

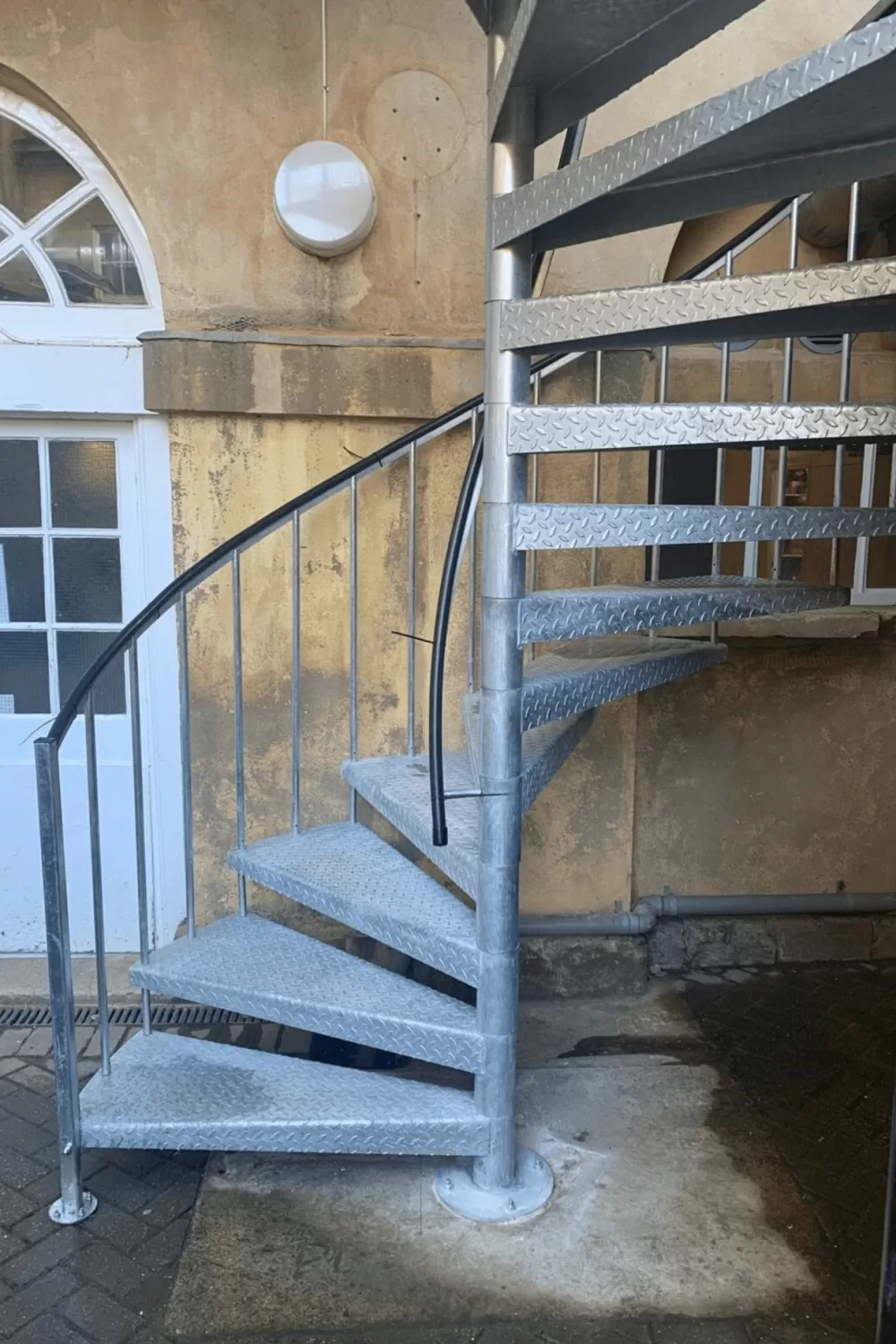

The stair was a huge steel spiral which gave a means of escape from two floors of the Temple Boarding house. Fabricated in mild steel and galvanised to prevent corrosion and increase durability the external escape stair had a non-slip pattern to the tread plate with 2 vertical balusters on each and a black PVC capping to the handrail.

At a glance

Floor to floor height: 10465mm
Spiral diameter: 2100mm
Risers: 17 @ 211.9mm, 38 @ 182.4mm
Tread radius: 51 @ 1050mm
Clear tread width: 828mm
Tread type: durbar plate
Balustrade: 2 x 22mm diameter vertical balusters per tread with black PVC capping to the handrail.
Landings: Top landing 3000mm x 1100mm, First floor landing 6000mm x 1,100mm plus two rest landings
Additional info: Decorative gallows brackets to top and first floor landings

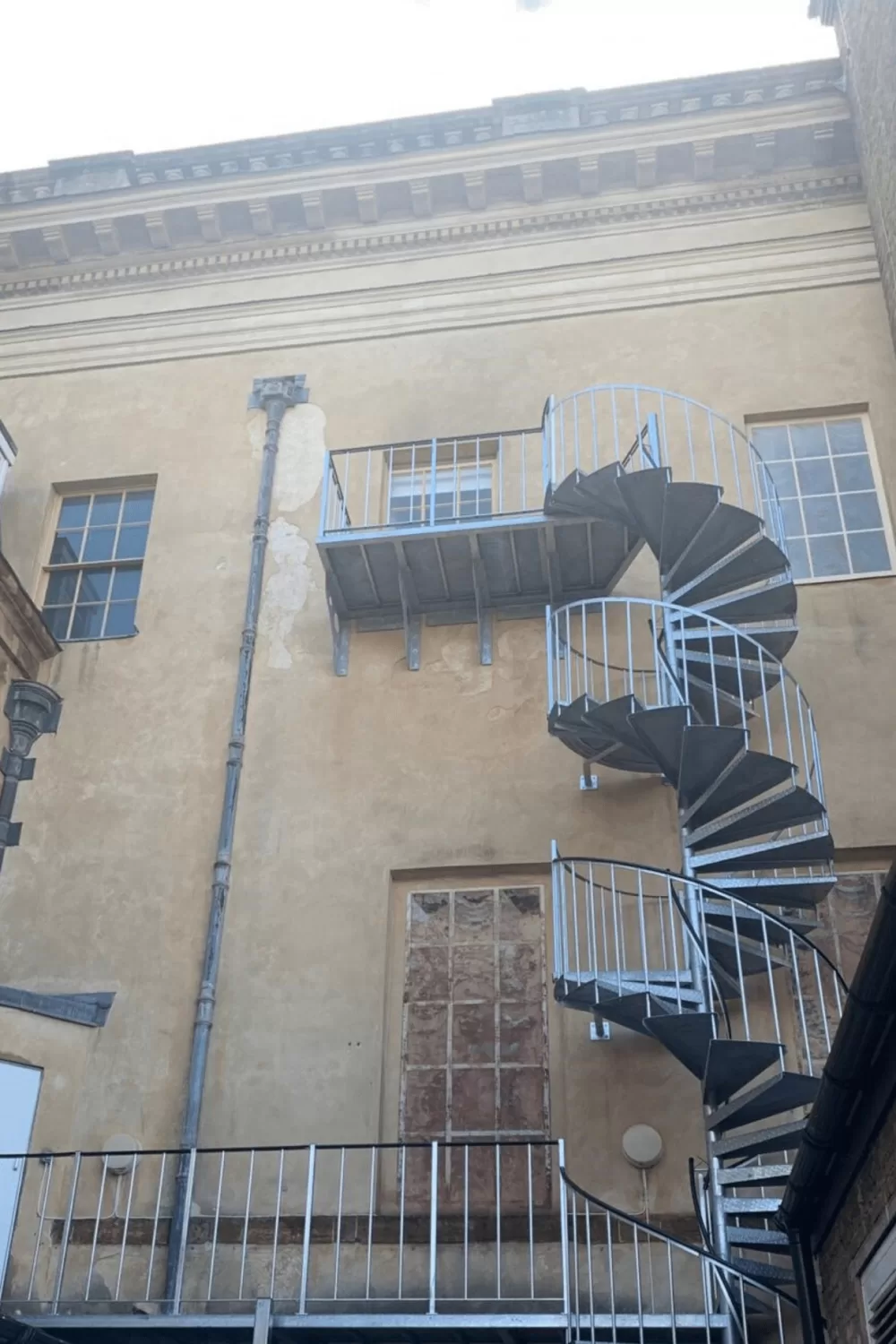

Galvanised external fire escape stair

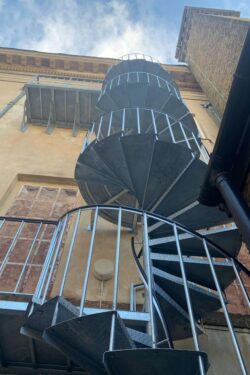

External spiral fire escape stairs
