Fit Out

Nottingham One

Spiral UK were thrilled to work with Overbury Plc on this feature front of house elliptical staircase with concrete treads.

It was for the design and fit out of a financial software company’s new office within Nottingham One. A development of apartments and office space close to the city centre of Nottingham, on Canal Street.

Call: 0330 123 2447

Email: info@spiral.uk.com

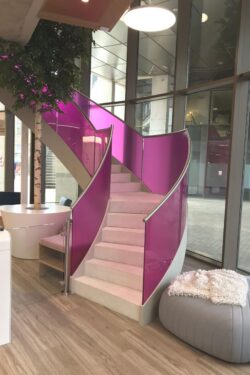

Finastra web 2000 x 3000 scaled

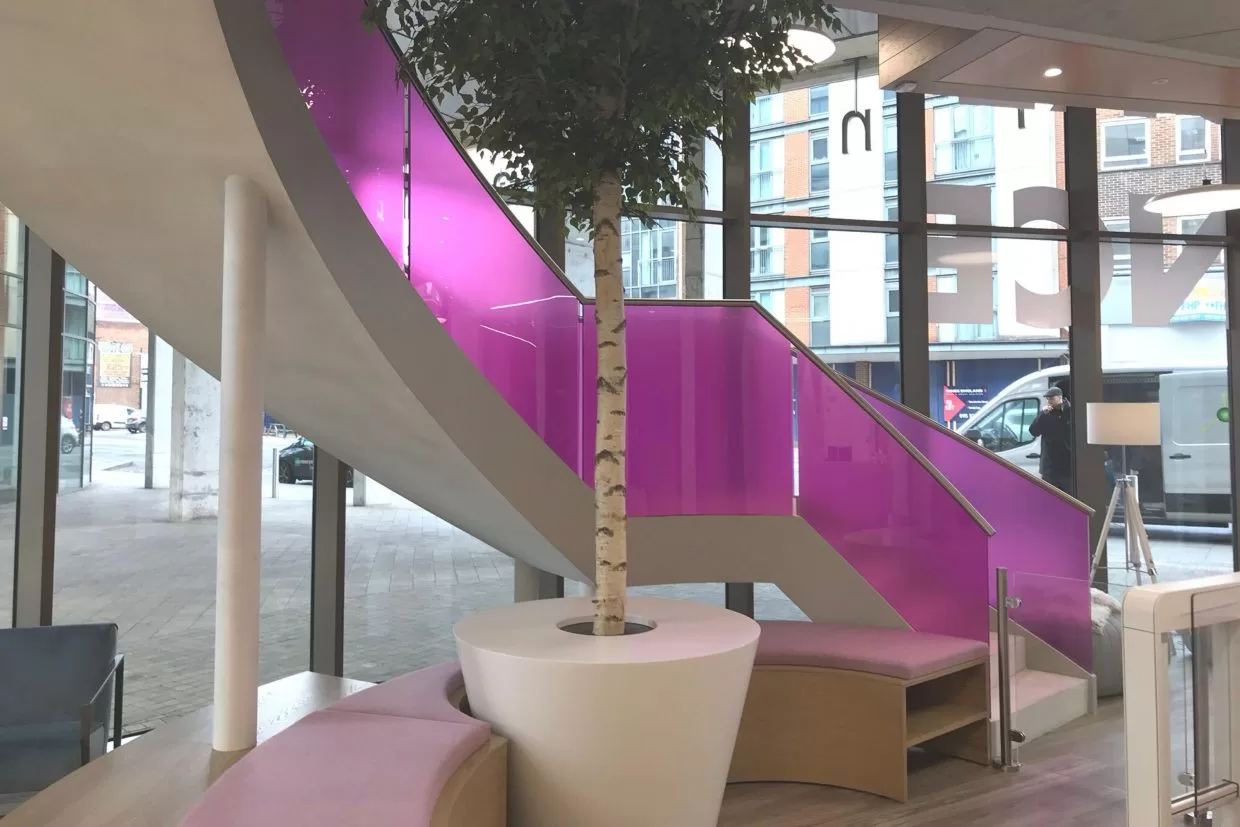

The office space was over two floors and our commercial office stairs proved an imposing feature leading from the ground floor entrance to the first floor. The company used an unusual colour palette, with the structured glass on the balustrade being given a pink finish to reflect the business branding. The contrasting concrete treads having a white fair face finish. Installed alongside the external glass windows of the building the staircase makes quite an impact as you walk towards the building.

Project

Nottingham One, Canal St, Nottingham

Requirement

Commercial staircase for office fit out

Contractor

Overbury Plc

Elliptical staircase

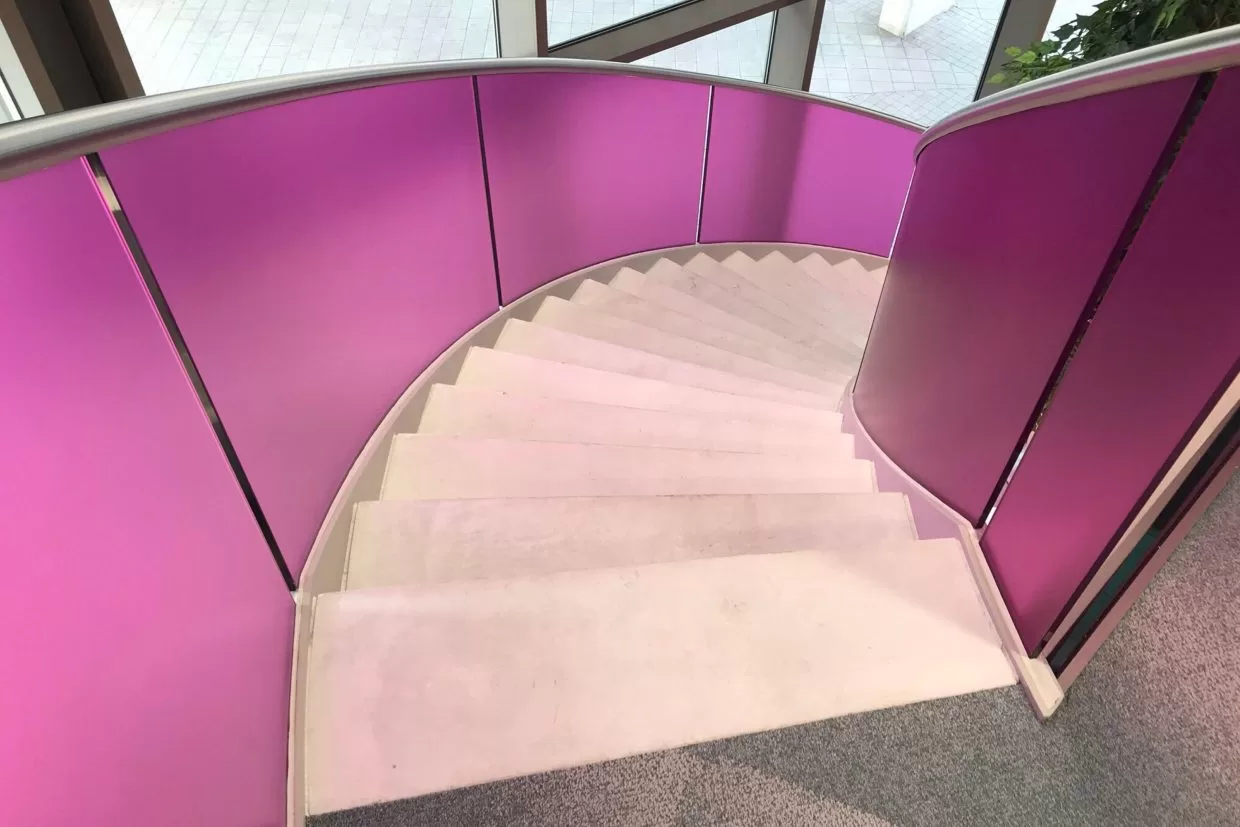

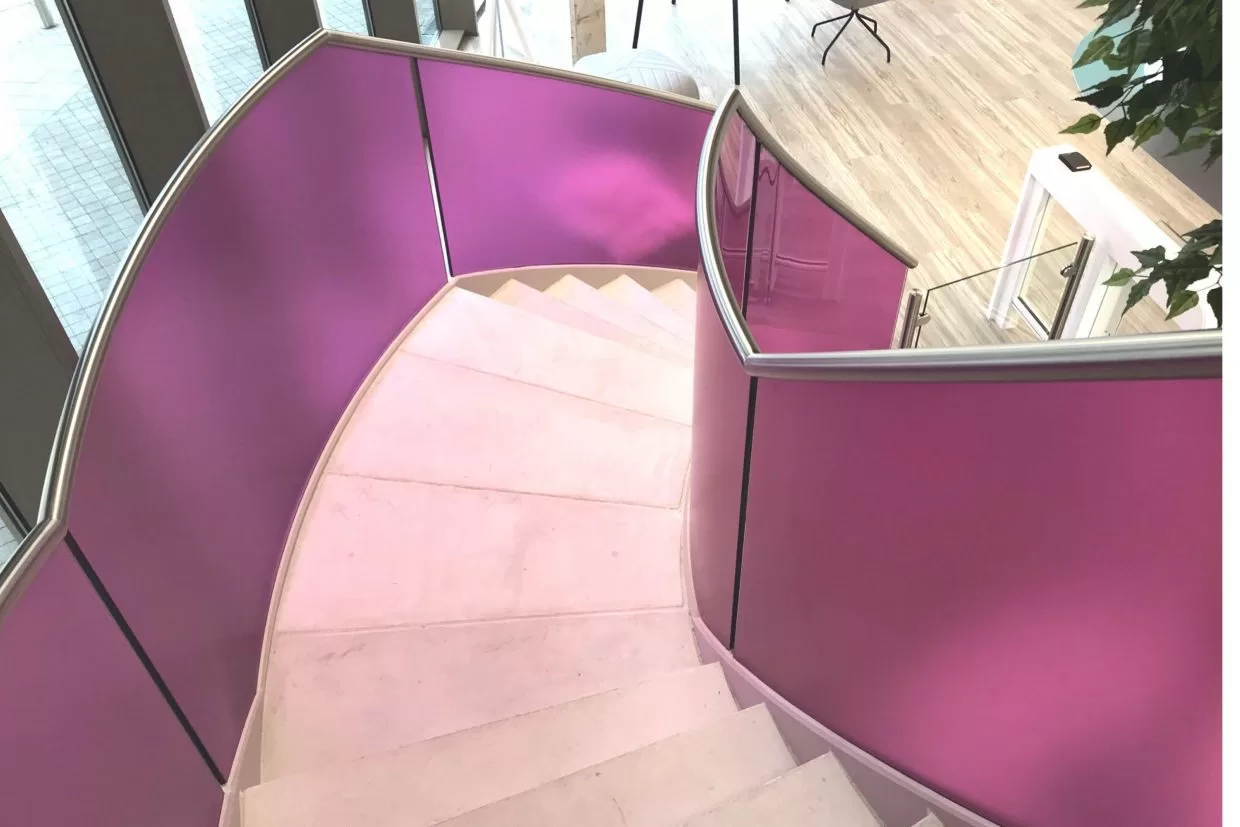

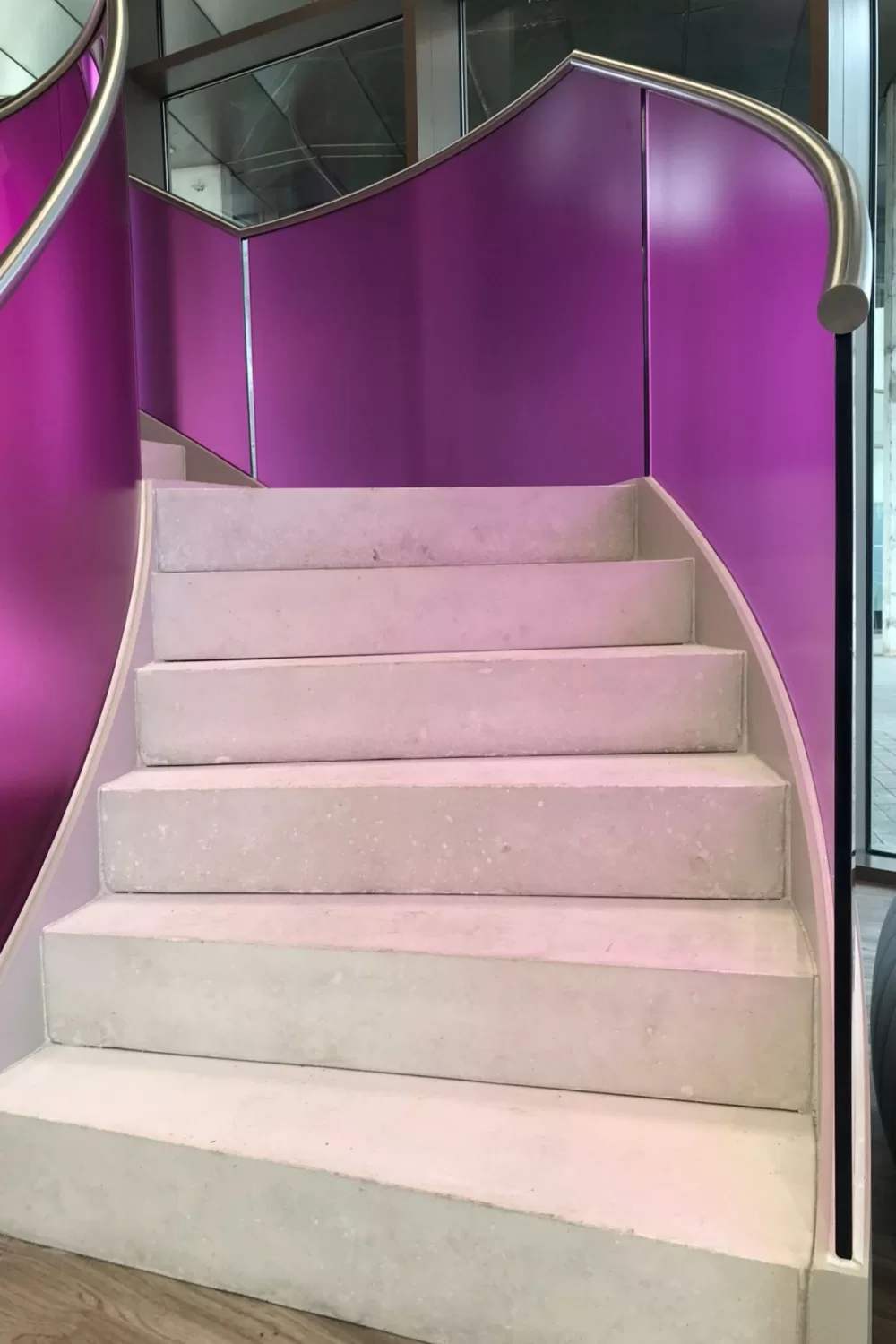

This office staircase was a double helix or elliptical design changing radius part way down. As expert bespoke staircase manufacturers we created the staircase as a steel construction with concrete treads and risers overlaid. The frameless glass balustrade was finished with a satin polished stainless-steel capping handrail.

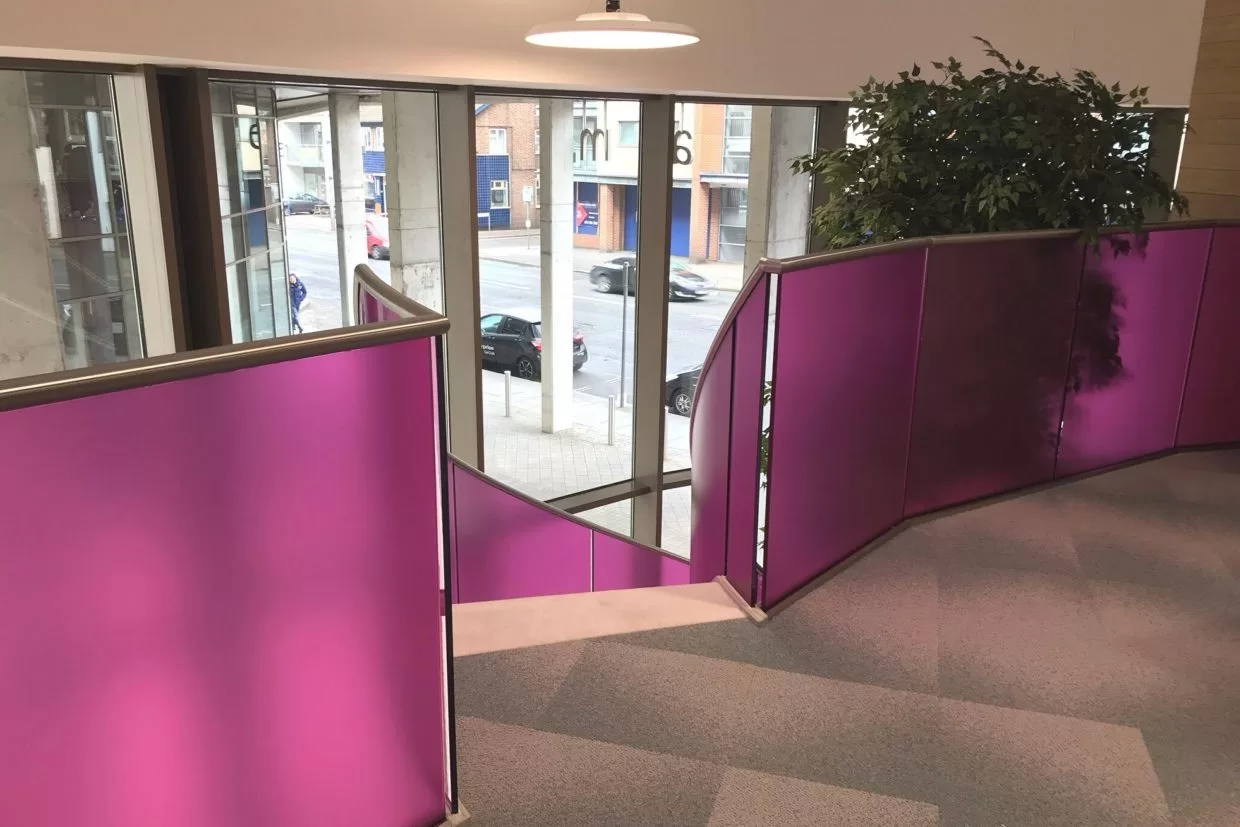

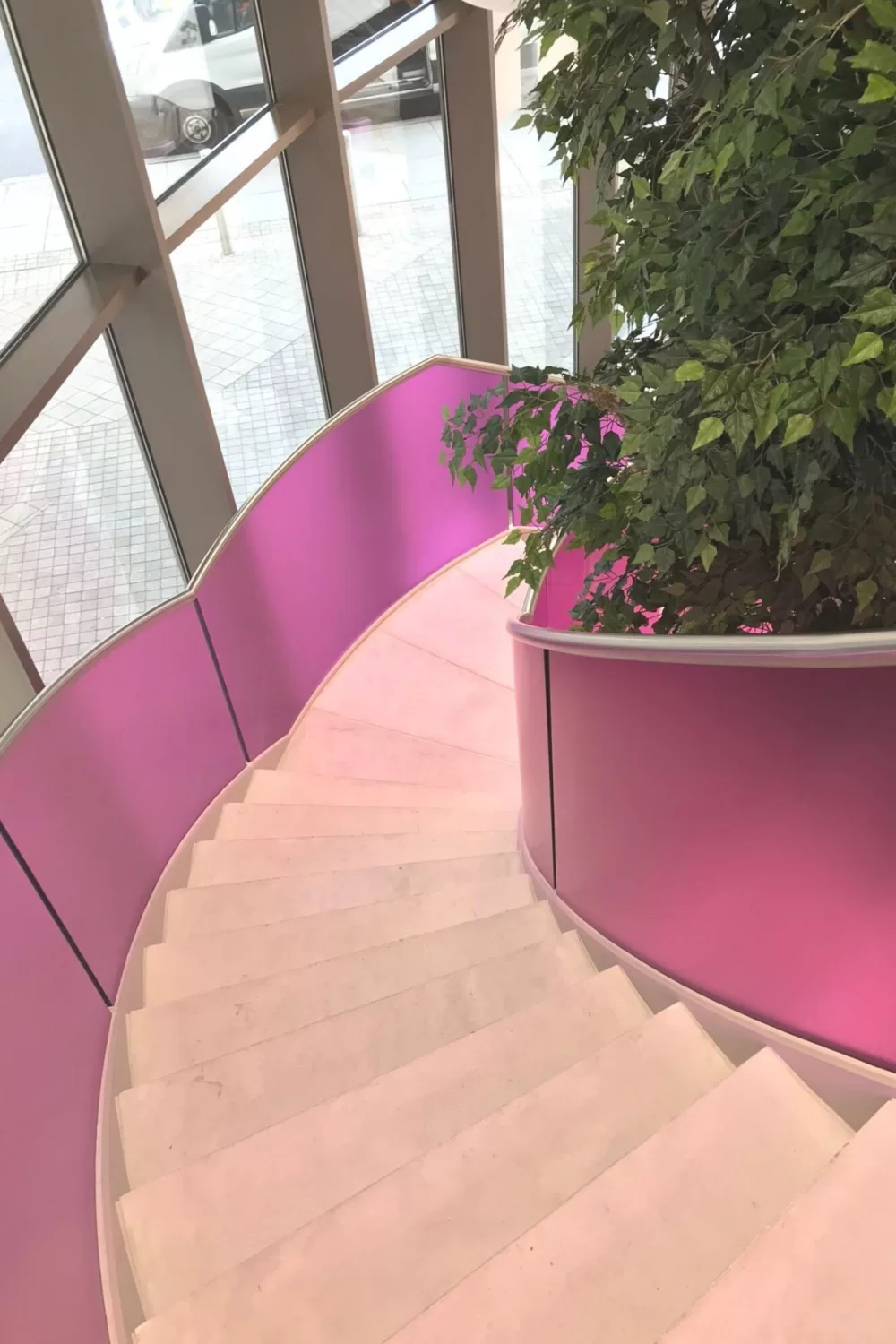

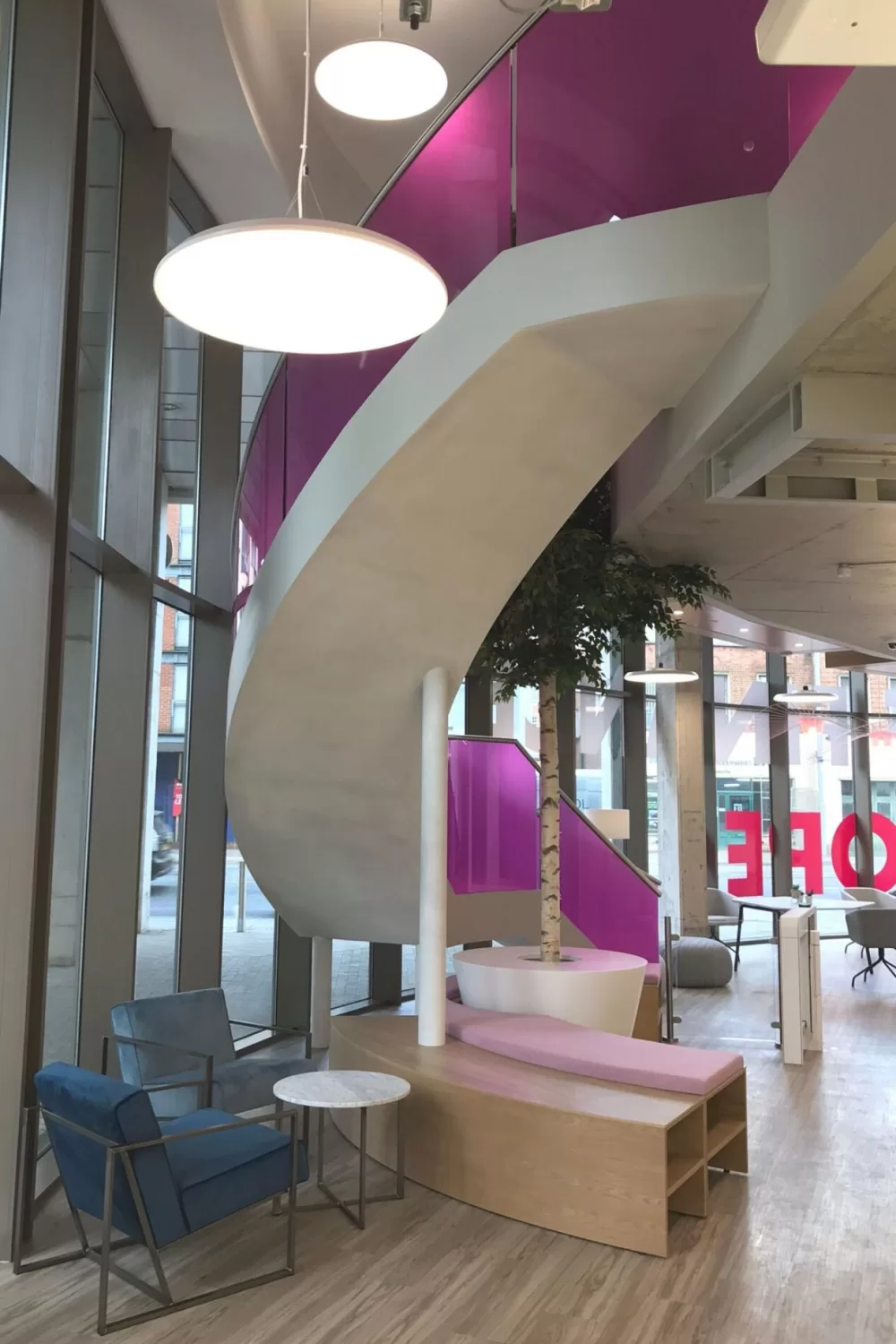

The elliptical stair shape created a beautiful arc leading up to the first-floor balcony with the underside site sprayed to a concrete effect to match the treads. The pink effect on the glass of the balustrade was a film manifestation by the contractor. We also installed matching balustrade to the stairwell and landing.

At a glance

Floor to floor height

3620mm

Risers

20 @ 181mm in concrete

Treads

19 fabricated in steel with white fair face concrete tread and riser overlay

Clear Tread Width

1112mm

Balustrade

Frameless glass with pink window film manifestation by others

Handrails

42mm diameter stainless steel capping

Additional

Intermediate curved landing and matching balustrade to the first-floor landing area
