Halesowen College, Birmingham
- Halesowen College, Birmingham
- Steel spiral staircase
- Fuselek Ltd
- BPN Architects

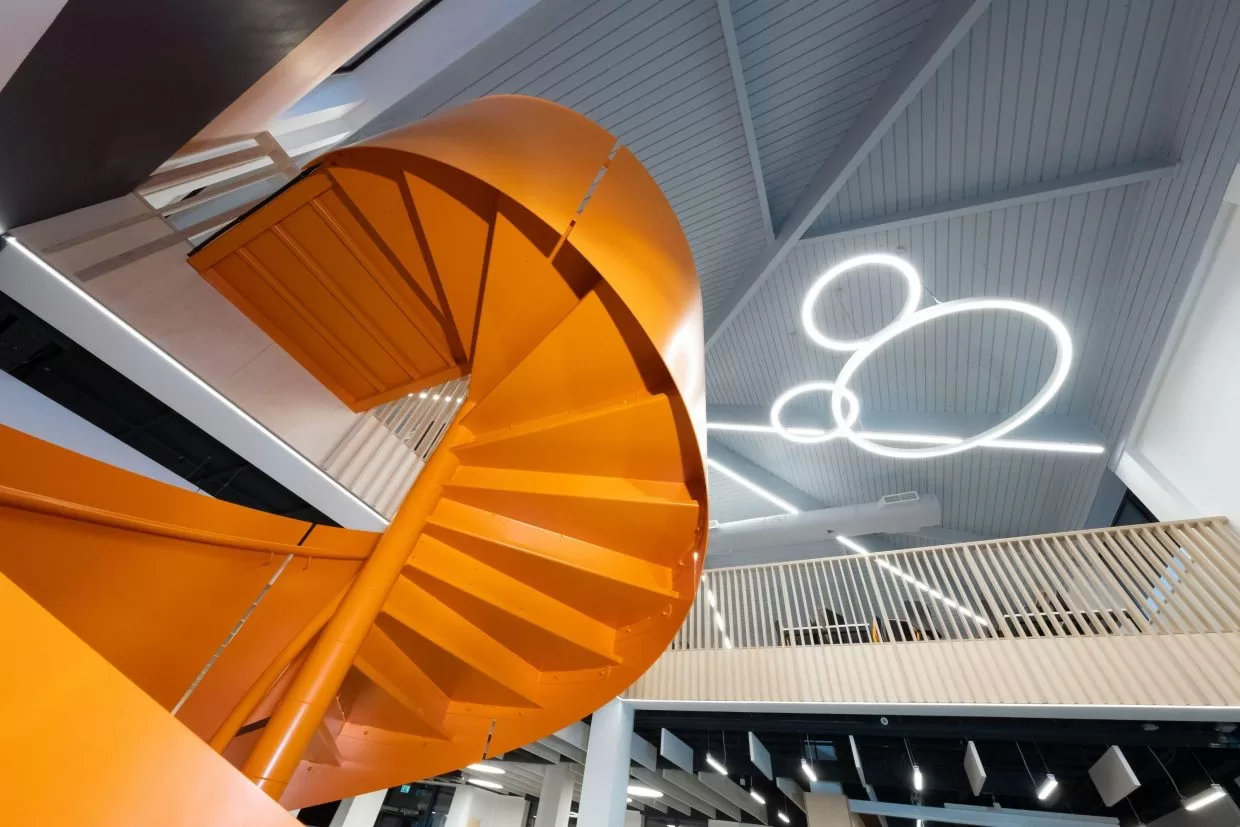

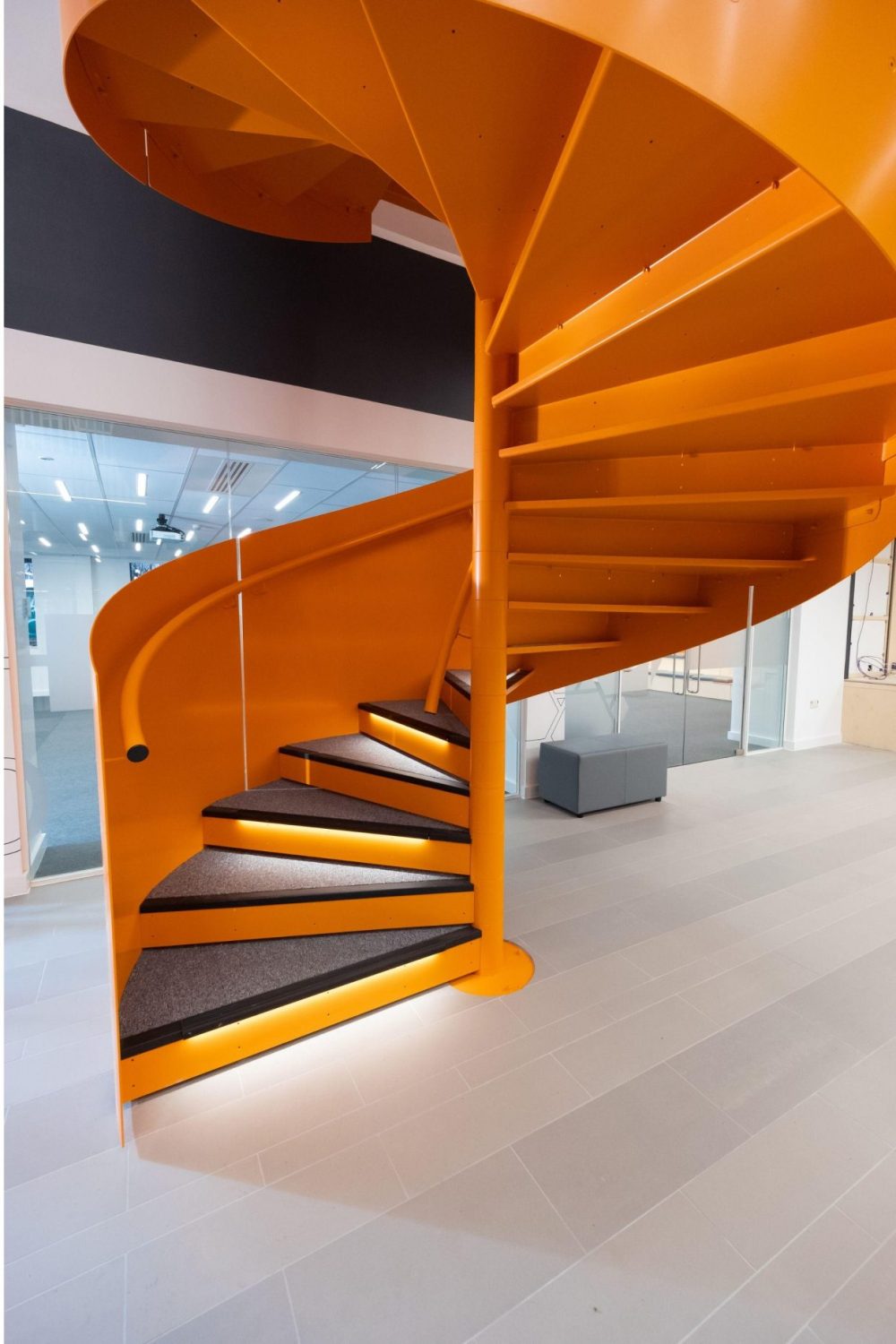

This large bespoke spiral staircase was designed to be compliant with a Category E public stair.

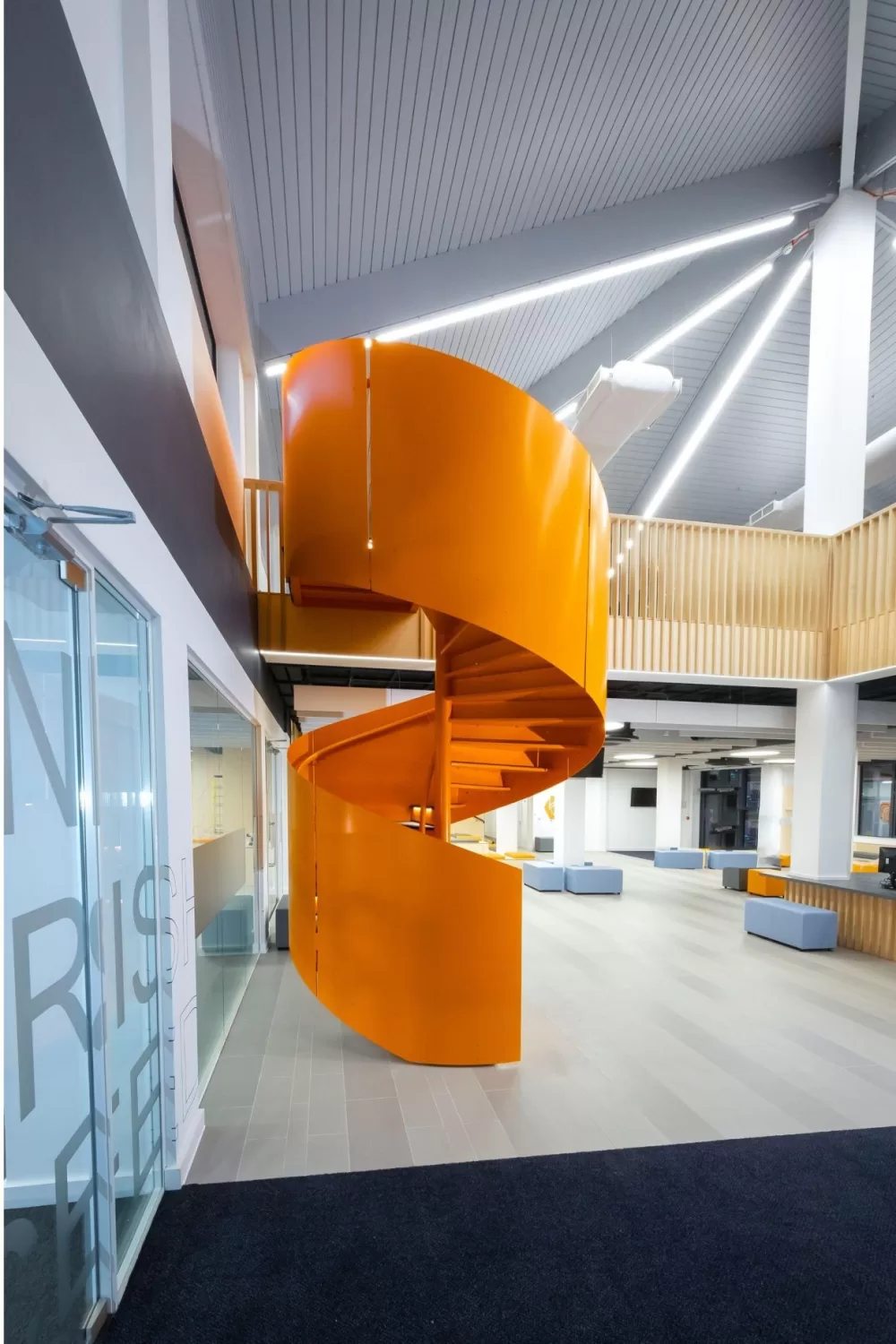

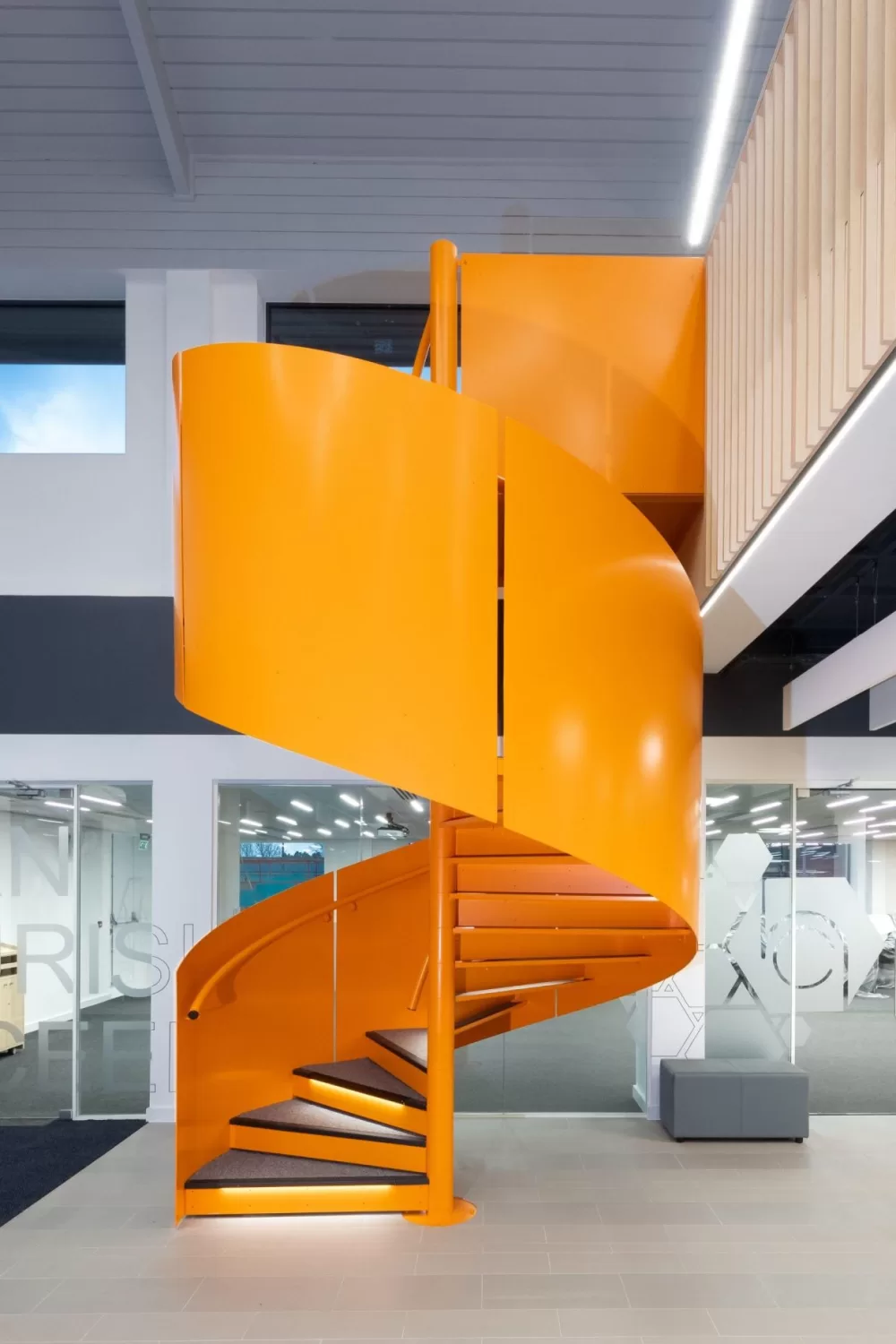

Full height steel plate balustrade is a very popular staircase design at the moment because it creates seamless curves. In bright orange this commercial staircase really makes an impact.

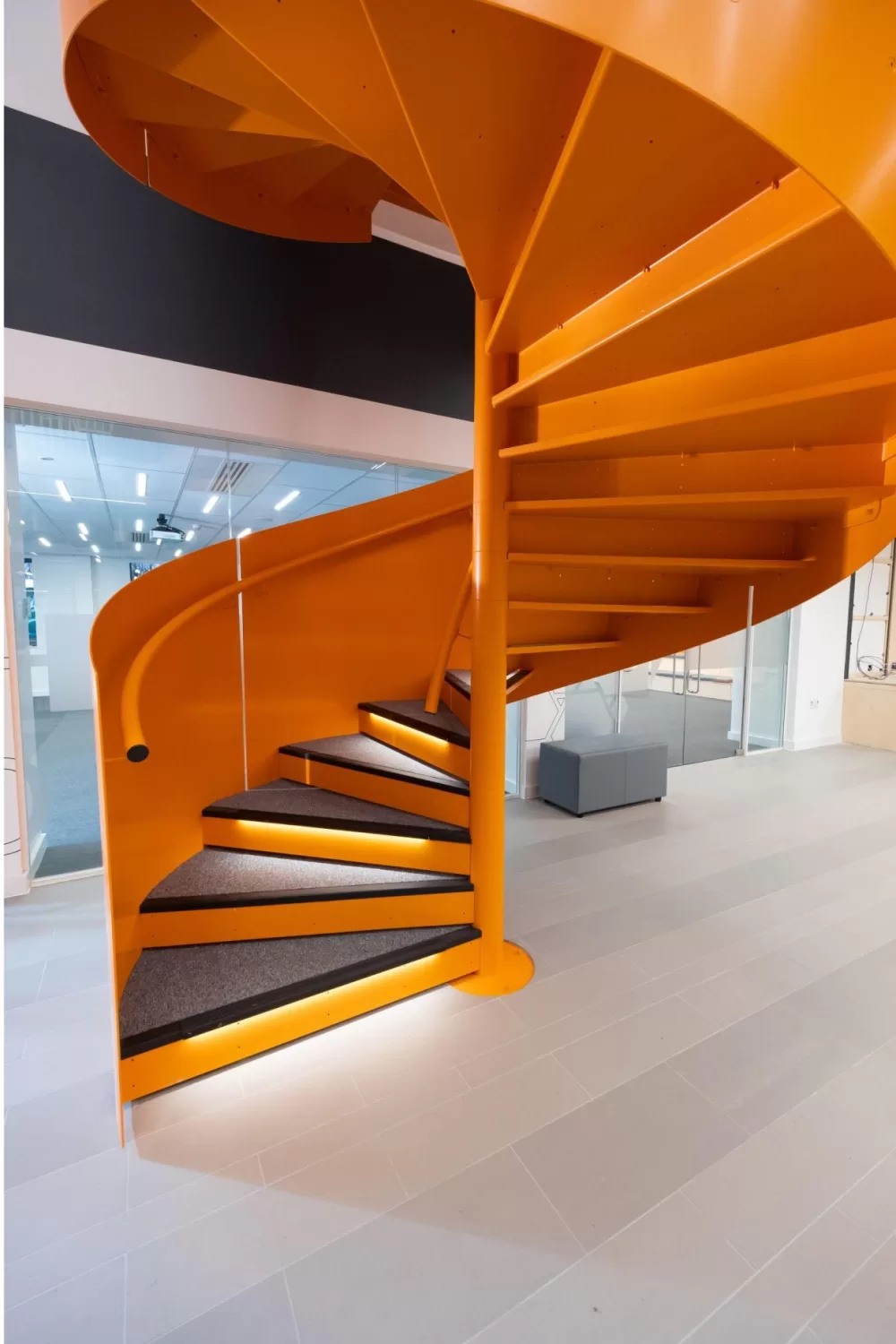

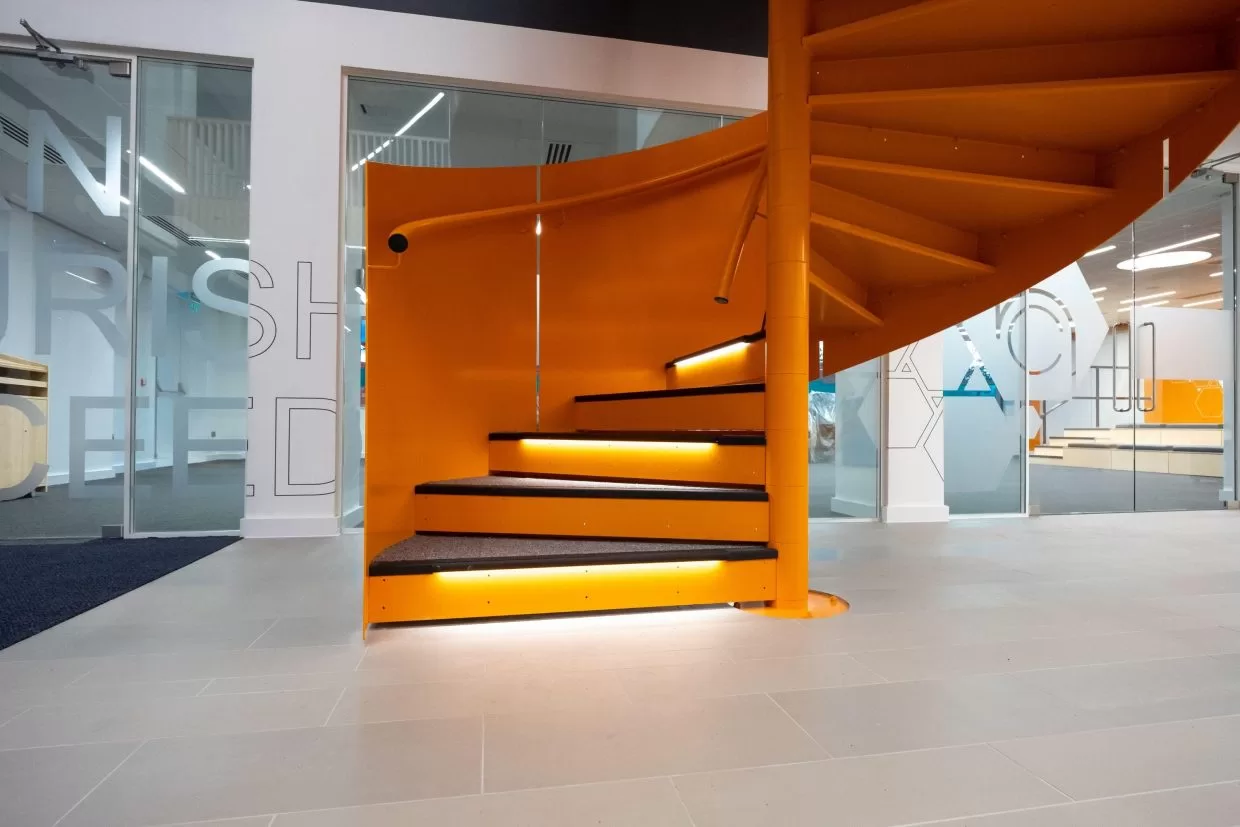

The stairs also had carpet on the treads along with LED lights.
At a glance
|Floor to floor height:||3960mm|
|Landing:||1300mm x 1400mm steel plate|
|Treads:||20 @ 1300 radius in steel|
|Clear tread width:||1099mm|
|Risers:||Closed. 21 @ 182.76mm|
|Balustrade:||5mm solid steel plate extending to 1000mm above the pitch line|

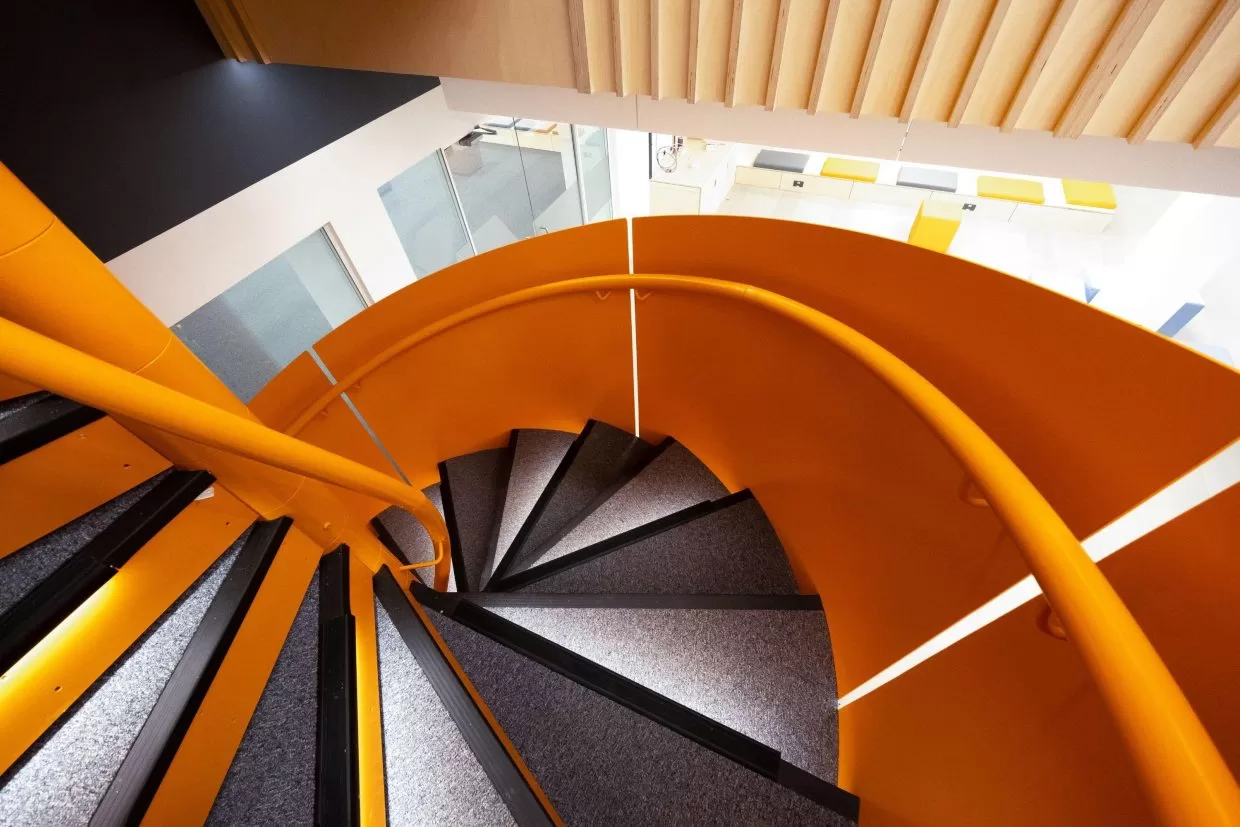

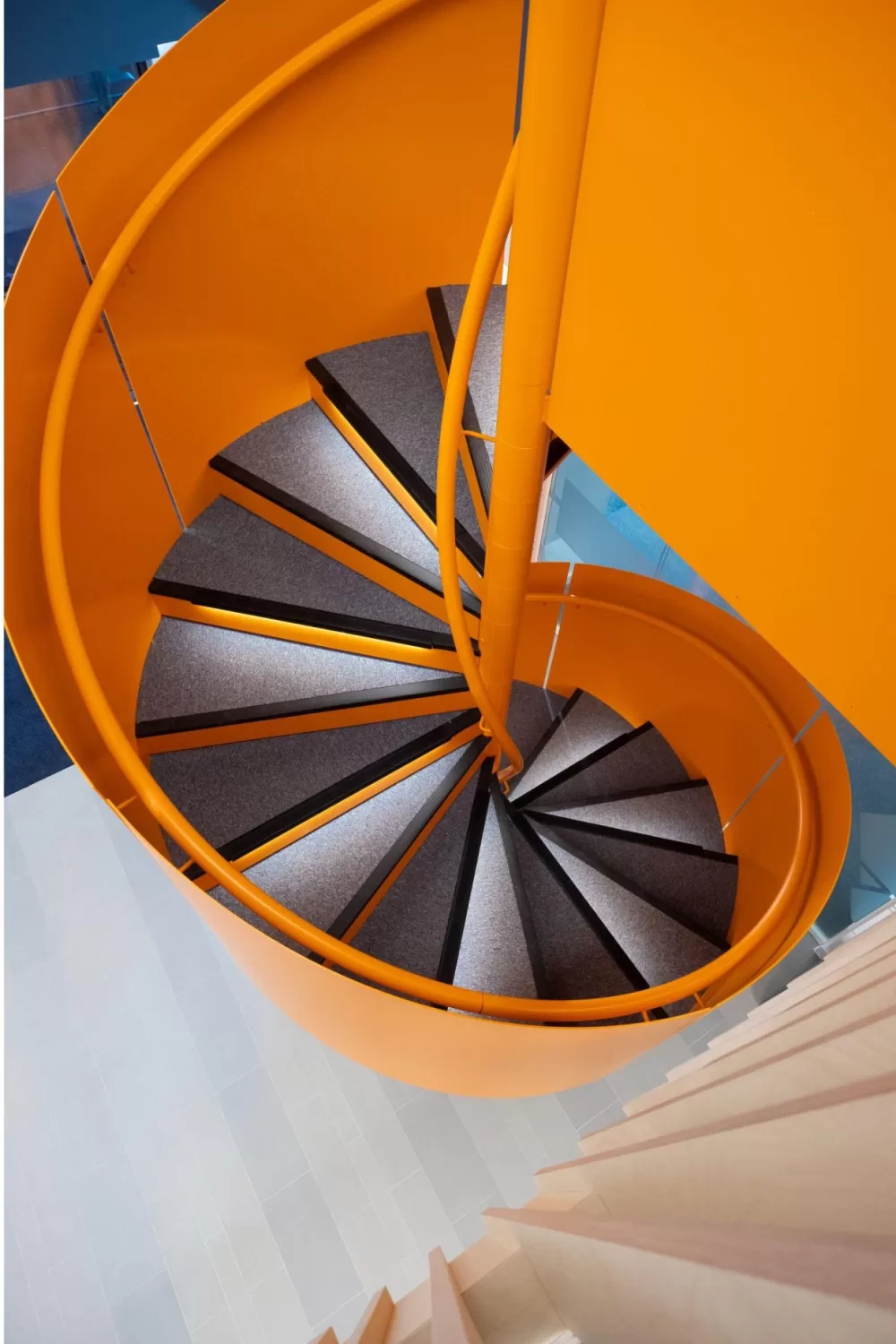

|Handrails:||Mild steel fixed to balustrade and core pole|
|Additional:||Powder coated in standard orange with LED lighting on treads|
