Goodison, North Wales
We worked directly with our client for this project, which required an external spiral staircase to give access to the garden of a residential coastal property in North Wales.
The steel spiral stairs worked well as a space-saving device, preventing unnecessary loss of space in what was a bright and sunny rear courtyard garden. The glass balustrade gave an extra touch of style to the finish and the opportunity to enjoy countryside views.
At Spiral UK we make a wide range of external spiral staircases and fire escape stairs. Not only are they robust and functional but they can make a nice external design feature too.
- Project:
- Goodison, North Wales
- Requirement:
- Spiral fire escape stairs
- Architect:
- Hamon Design Ltd
- Contractor:
- Private Client

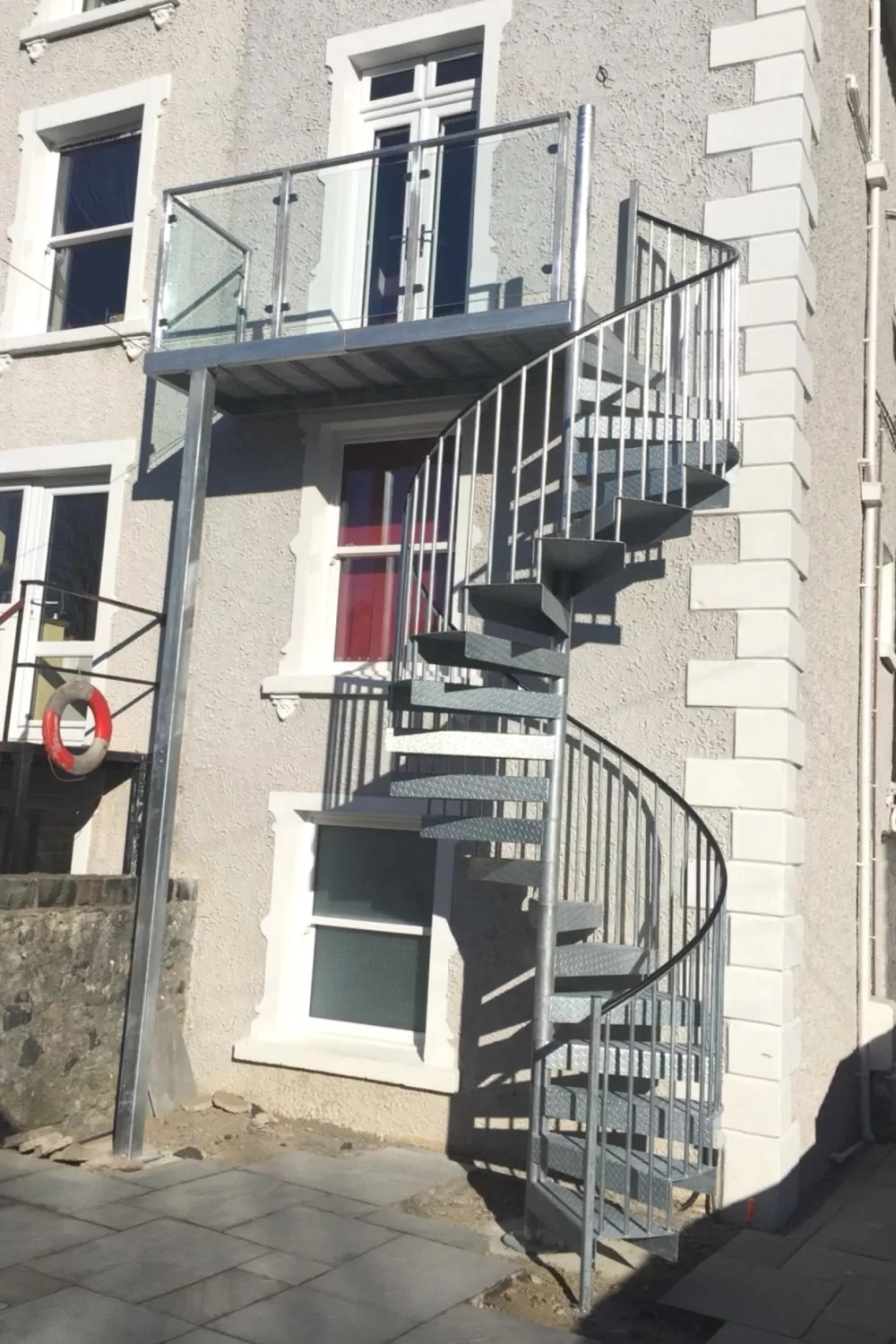

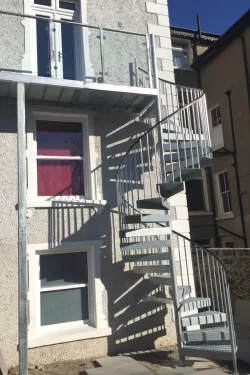

Steel spiral staircase
This external spiral staircase served the dual purpose of being both fire escape stairs and access stairs. It was fabricated in mild steel galvanised to ISO EN1461 and compliant with British Standard BS5395 Part II (Code of Practice for the design of helical and spiral stairs 1984).
Galvanising is a cost-effective way of increasing durability and preventing corrosion on exterior spiral staircases.
The staircase balustrade handrail was flat bar with a black PVC capping and the landing balustrade consisted of toughened glass infill panels.
At a glance
| Floor to floor height: | 4800mm |
| Spiral diameter: | 1800mm |
| Risers: | 22 @ 218.18mm |
| Tread radius: | 21 @ 900mm |
| Clear tread width: | 801mm |

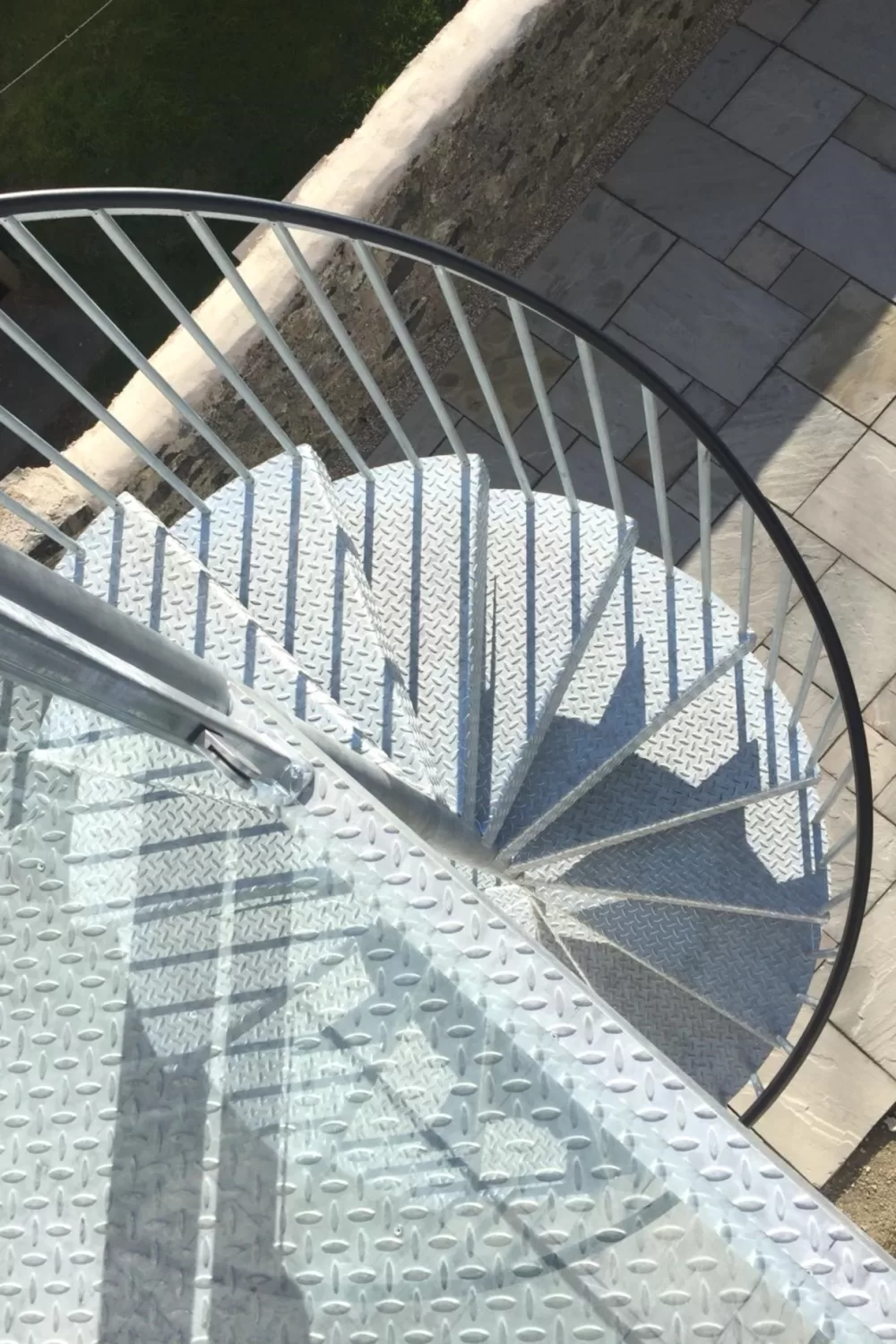

| Tread type: | 3mm durbar plate |
| Balustrade: | 3 x 22m diameter uprights per tread with 40mm x 6mm flat handrail with black PVC capping |

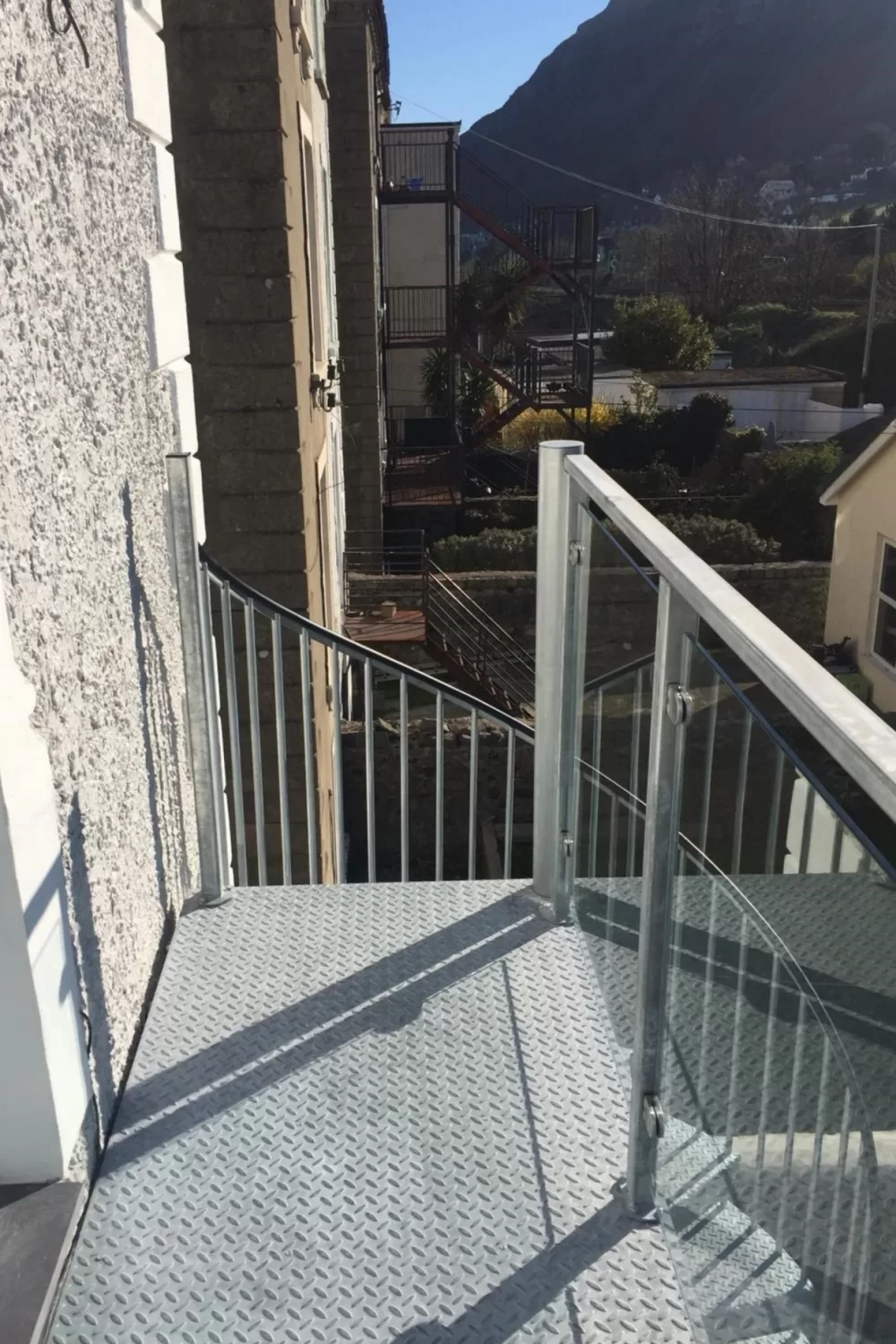

| Landing: | 3000 x 1000mm landing in durbar plate |
| Additional: | Landing balustrade included toughened glass infill panels. |
