Bespoke Staircases

Case Studies

Ancora, Residential Property, near Truro

This exquisite staircase is an integral part of the design of this new residential property, which has an open, airy feel, as it is flooded with natural light.

The oak tread cantilever straight stair reflects the feel of its surroundings and makes a striking focal point on entering this stunning family home. The bespoke staircase leads you to the open plan living area on the upper level of the building.

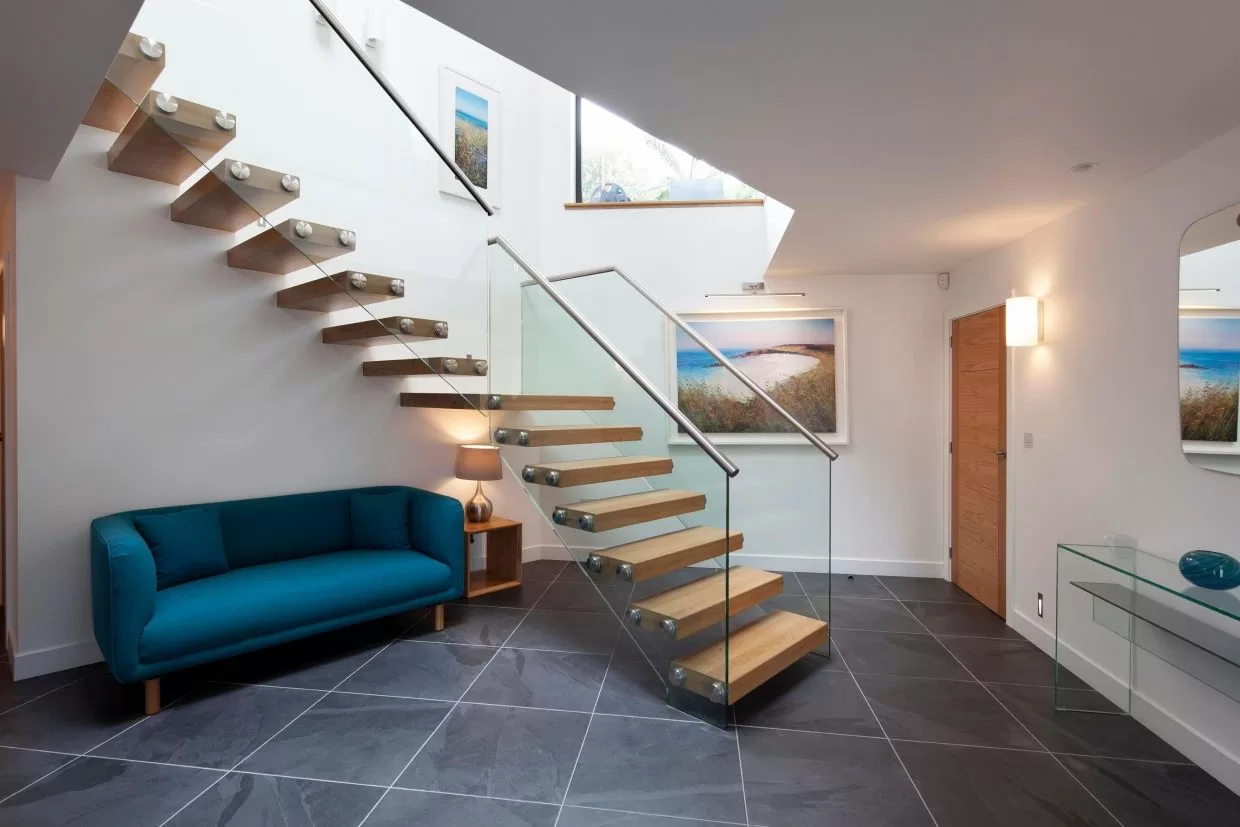

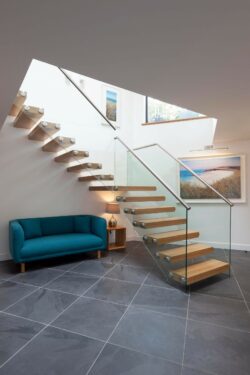

cantilever staircase with timber treads

The staircase itself is cleverly made and perfectly exemplifies why cantilever staircases are sometimes called ‘floating stairs.’ The bottom flight to the rest level is made of treads attached to a glass stringer on either side, whilst the upper flight stringer is concealed within the wall finishes.

The solid European oak treads add a subtle hue to the very light colour palette of the interior, and the glass balustrade and balcony helps deliver the architect’s vision to diffuse natural light around the home.

Project:
Ancora, Residential Property, near Truro
Requirement:
Oak tread cantilevered straight stair
Architects:
CAD Architects
Contractors:
HAT Construction

Entrance feature cantilever staircase

This luxury residential staircase is the centrepiece of the home. It is a straight cantilevered stair with a rest landing part way up. The cantilever style is ideal for ensuring light can filter through both levels of the building.

Guide price

£25,000

At a glance

Floor to floor height: 2971mm
Risers: 15 @ 198mm
Bottom flight
Tread width: 6 @ 950mm wide x 100mm thick oak treads
Clear Tread Width: 942mm
Stringer: Laminated toughened glass
Top flight
Tread width: 7 @ 975mm wide
Clear Tread Width: 943mm
Stringer: Mild steel plated concealed within wall finishes
Tread type: Solid European oak with clear lacquer finish
Balustrade: Toughened glass with stainless steel boss fittings
Handrail: Satin polished handrail to stair and upper balcony
Stringer: Mild steel plate
Additional: Matching glass balustrade to upstairs balcony

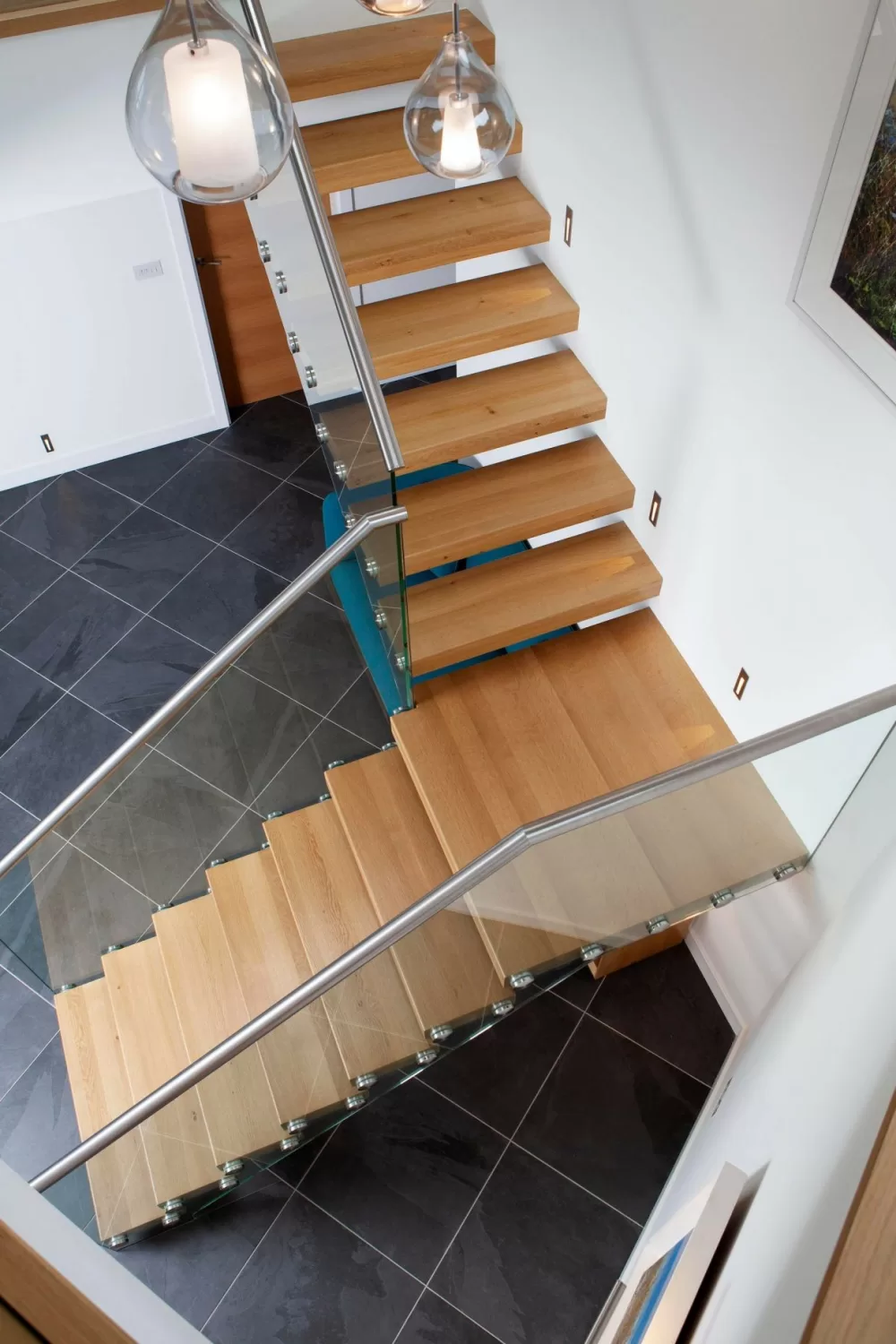

Looking down on timber tread cantilever stair

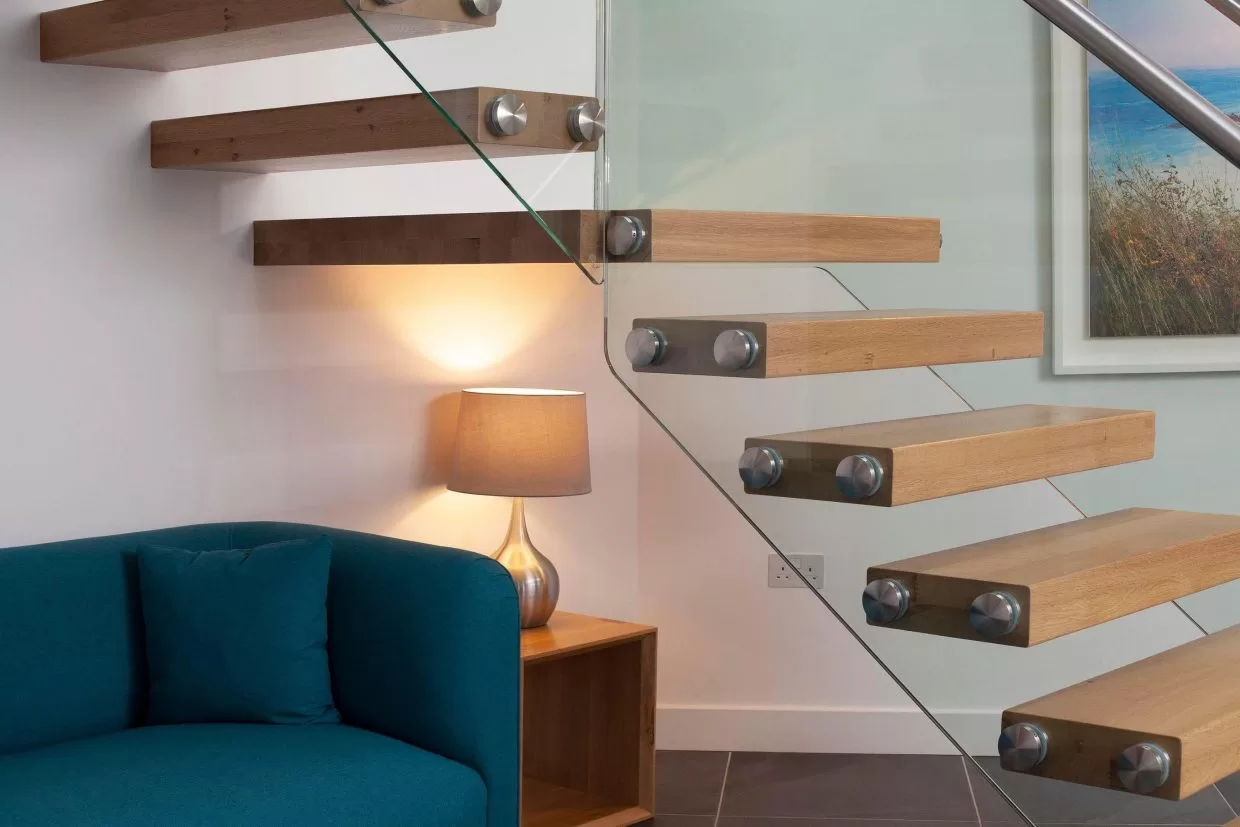

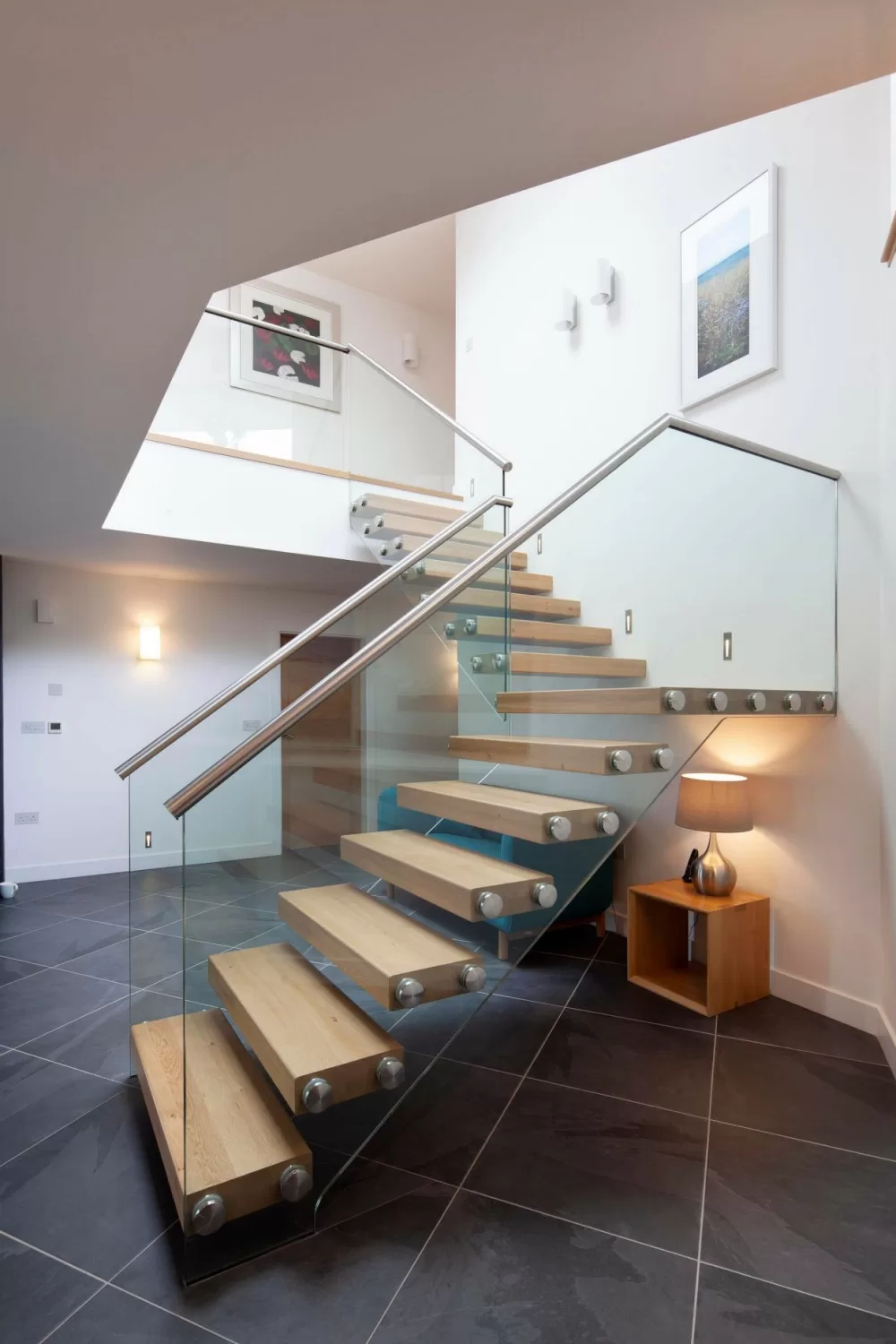

Timber tread and glass balustrade cantilever staircase

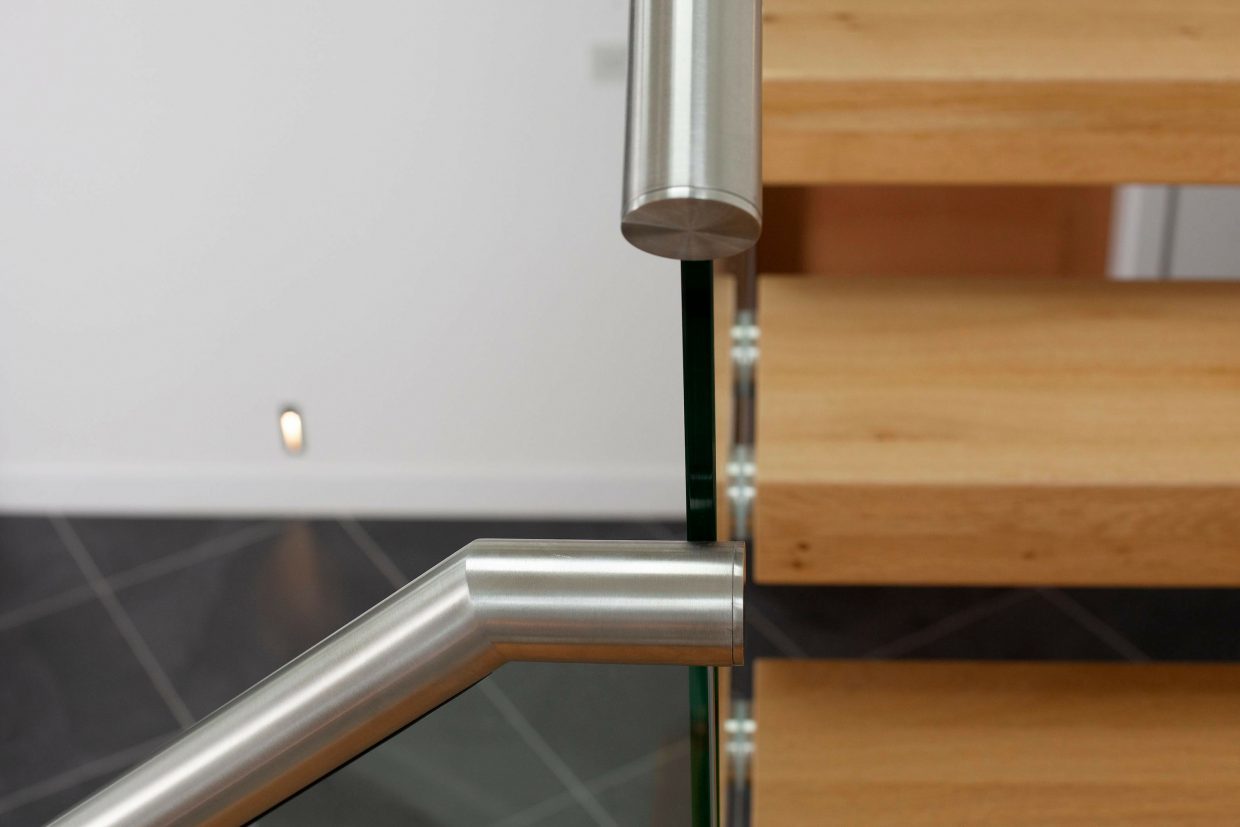

stainless steel handrail and timber tread

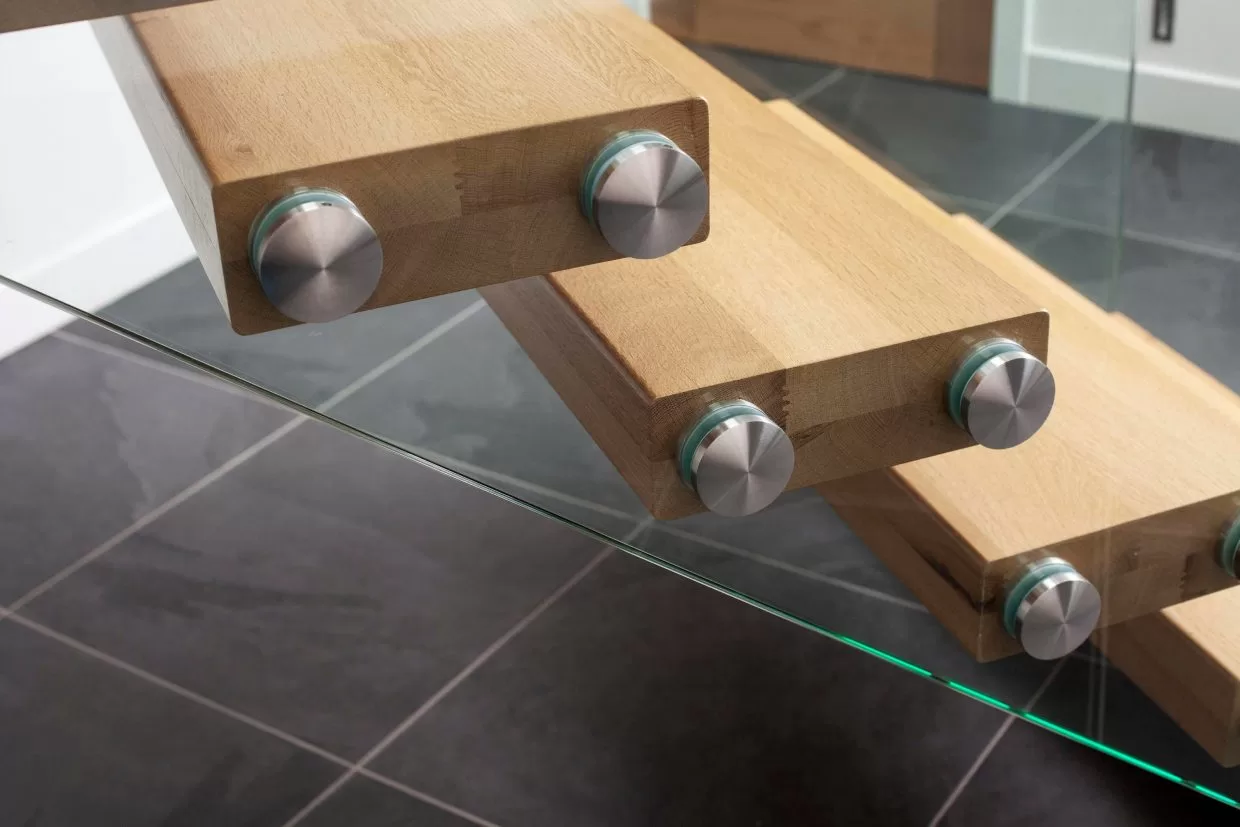

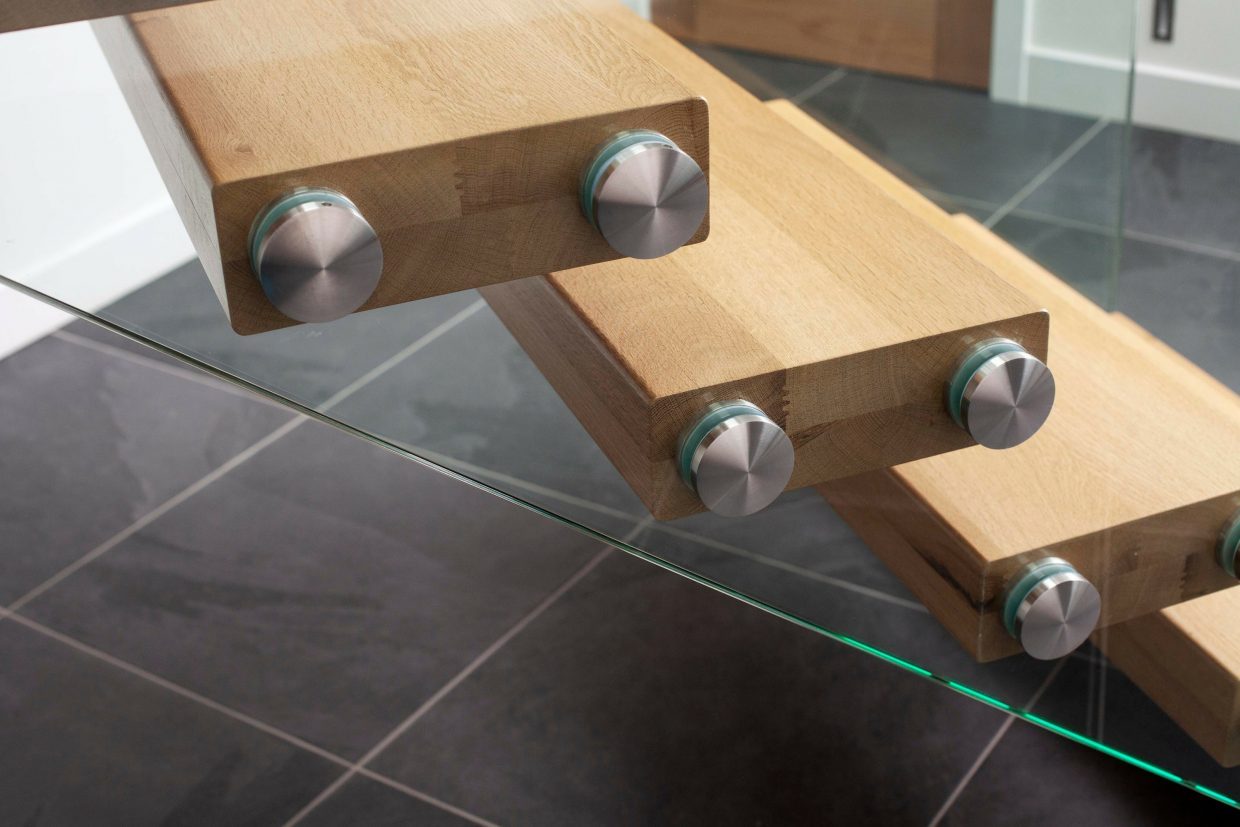

Oak treads on cantilever stair
1 of 4
