A bold industrial aesthetic meets architectural transparency.

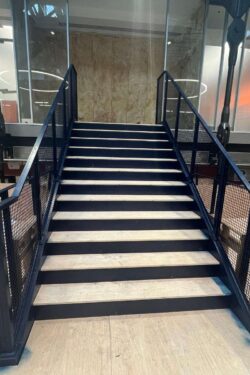

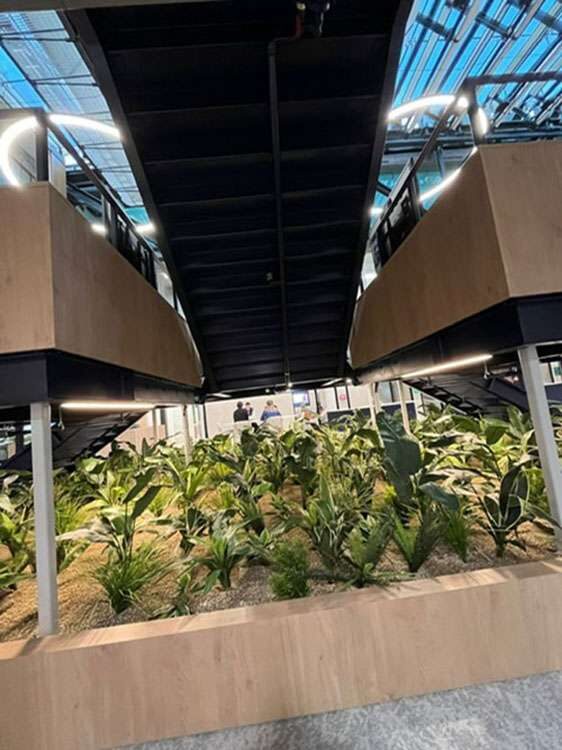

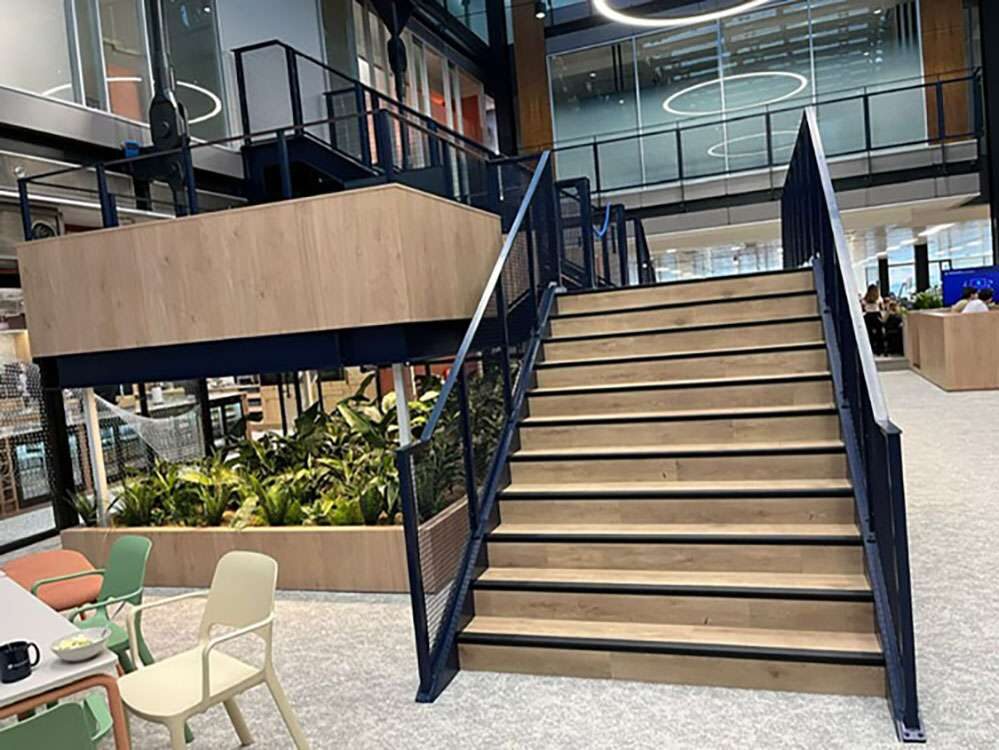

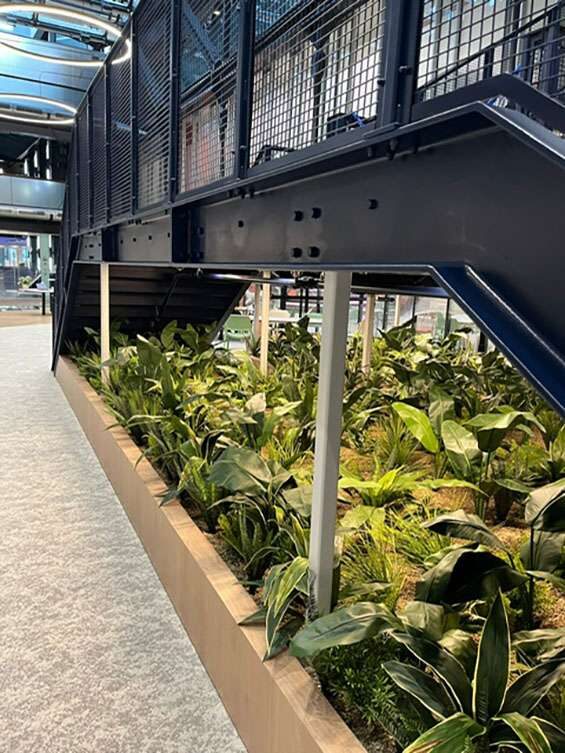

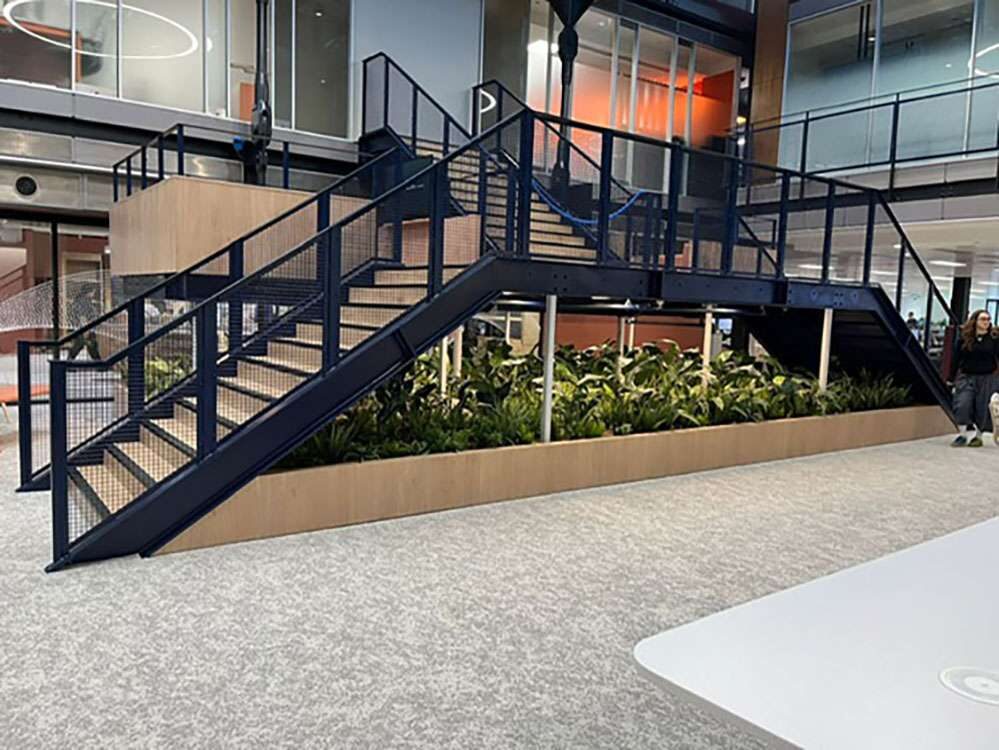

This feature dog-leg staircase is a masterclass in structural honesty, utilising a robust steel channel stringer configuration to define its sharp, geometric silhouette.

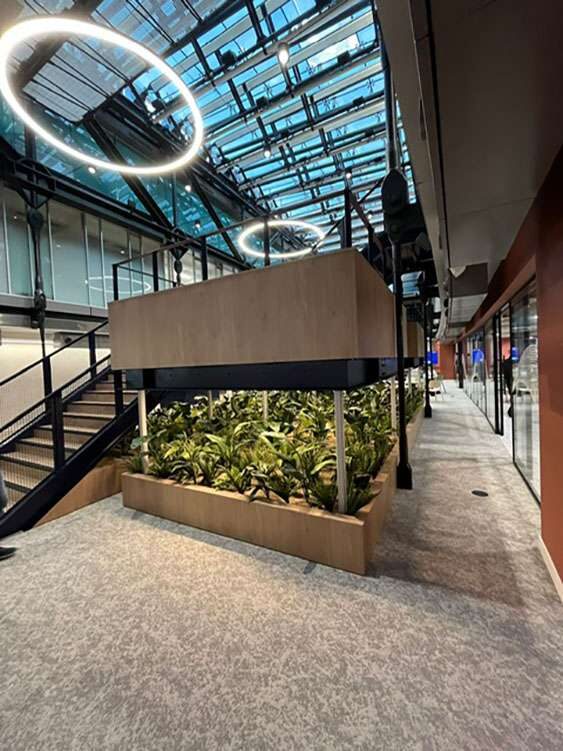

The design features mechanically connected flat plate closed riser treads that transition seamlessly into expansive intermediate and upper landings. To maintain a consistent visual language, the platform landings flanking the flights mirror the tread construction, creating a unified industrial aesthetic that celebrates the raw strength of the materials.
Project
AlphaSights London
Requirement
Commercial Dog-Leg Staircase
Client
AlphaSights
Industry
Commercial
Contractor
ODB Group
Floor to floor height
3230mm
Staircase Category
Commercial
Risers
10 @ 170mm
Treads
8mm thick
Tread Width
2000mm wide
Landing
Mid: 4000mm x 2000mm Upper: 4000mm x 4000mm
Balustrade
40x40 SHS uprights mechanically fixed
Stringer
PFC stringers
Handrails
70x8 flat bar handrail
Other
£150,923

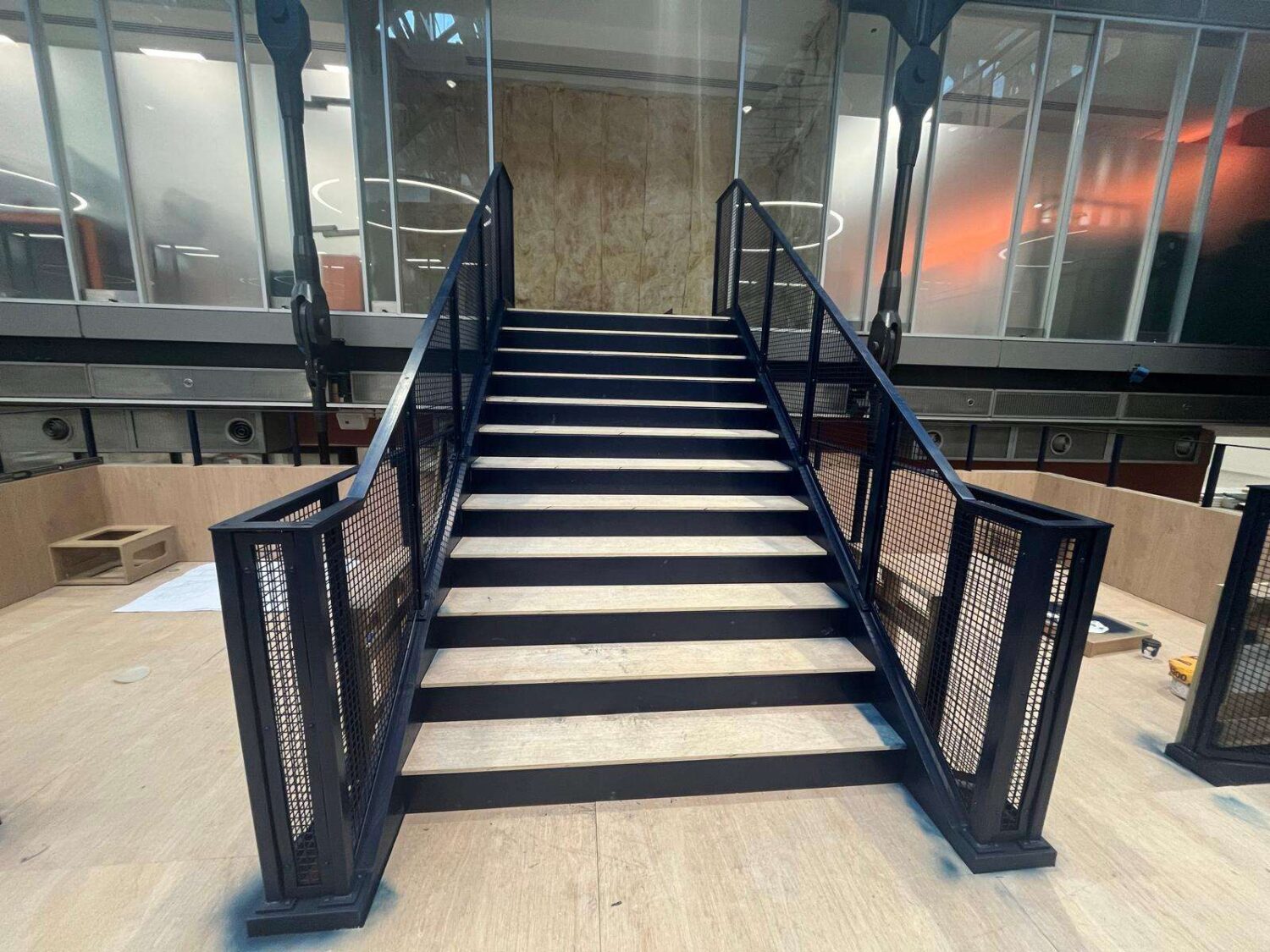

The balustrading reinforces the project’s engineered robust, functional character. Vertical square hollow section (SHS) uprights are precision-mounted to the top edge of the stringers, supporting side-mounted weld mesh panels that provide security while optimising light and airflow. This mesh detail is carried through to the upper floor edges and the low-level timber surrounds on the platform landings, ensuring a cohesive wrap-around effect. The result is a high-impact circulation core where the deliberate pairing of heavy-duty steelwork and perforated textures creates a striking, transparent focal point.
