A structural fusion of stone, glass and steel
This staircase provides a high-end circulation solution that maintains the bright, airy feel of the surrounding space.

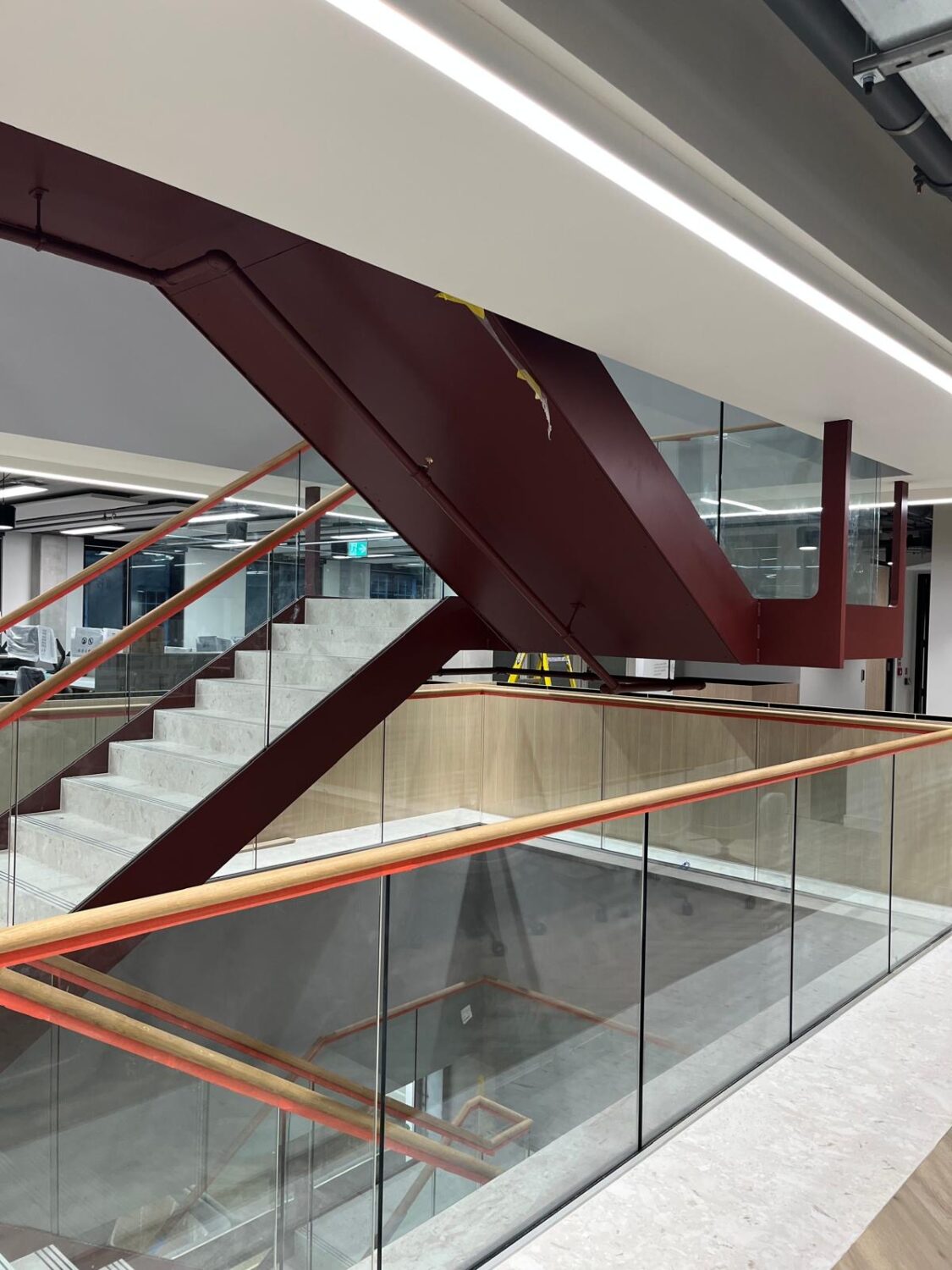

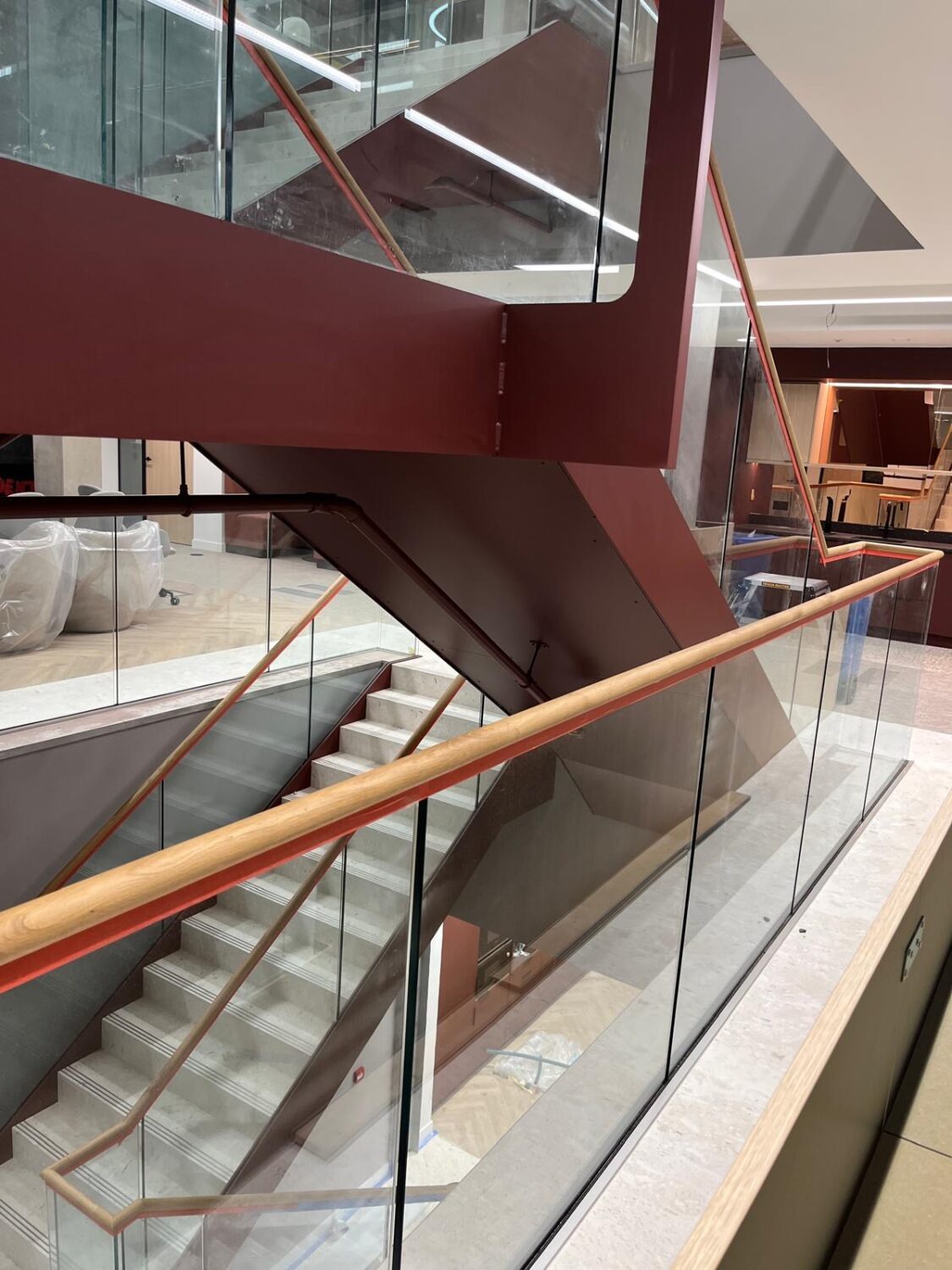

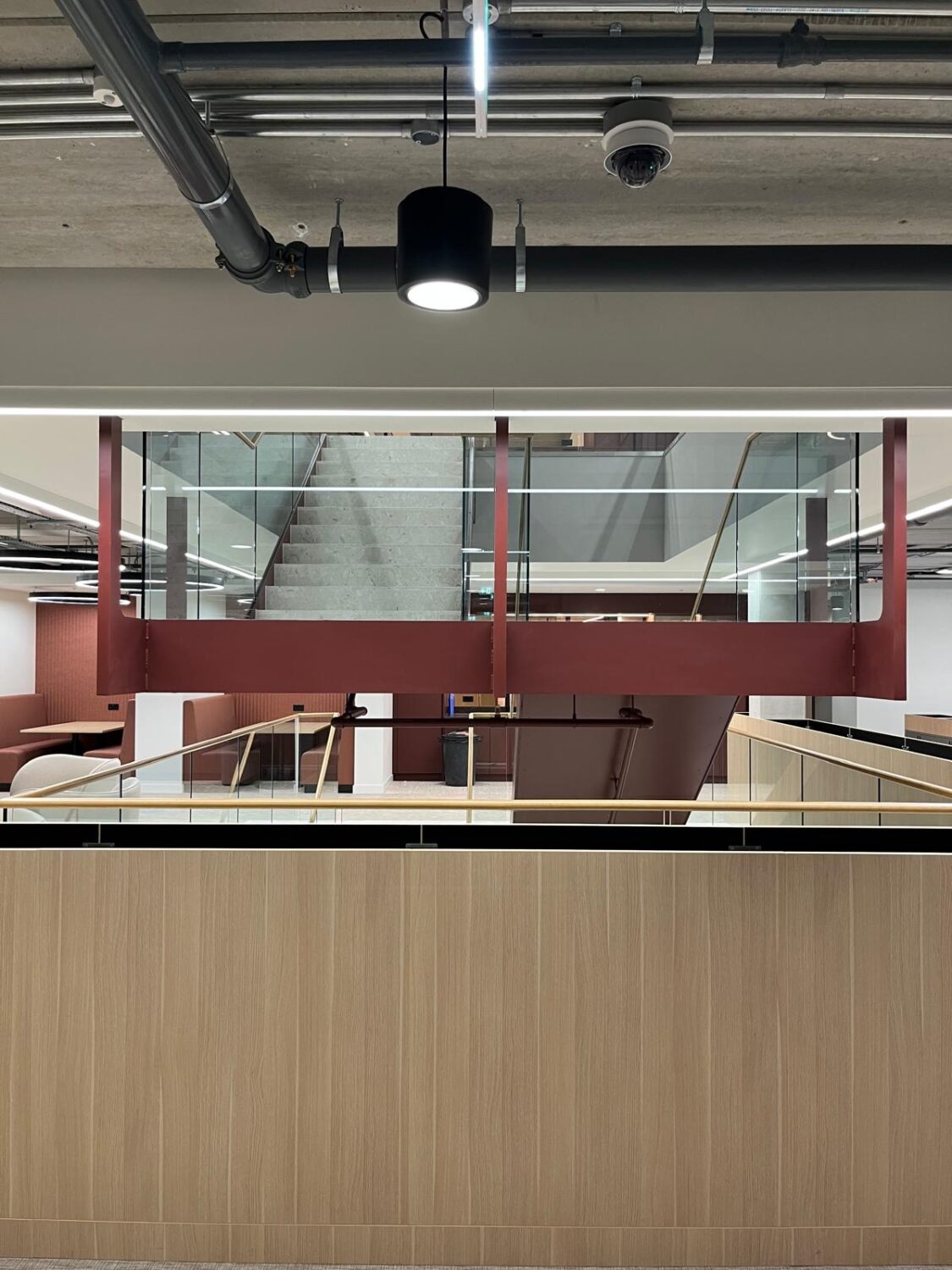

It’s a sharp dog-leg configuration, supported by a precision-fabricated steel channel structure and to keep the design feeling lightweight despite its robust engineering, the intermediate landing is suspended via architectural box-section hangers opening up the floor void below.
Project
ABF at The Fitzrovia, Tottenham Court Road, London W1T 7QX
Requirement
Dog-leg staircase
Client
ABF
Industry
Commercial
Materials
Mild Steel, stone treads, frameless glass & timber capping
Contractor
Denton
Floor to floor height
4310mm / 3500mm
Staircase diameter
1200mm
Staircase Category
Commercial
Risers
25@172mm & 21@166mm
Treads
Close riser fixed folded steel with stone overlay
Landing
2900mm x 1200mm
Balustrade
Frameless glass with timber capping
Stringer
290mm
Handrails
Timber capped

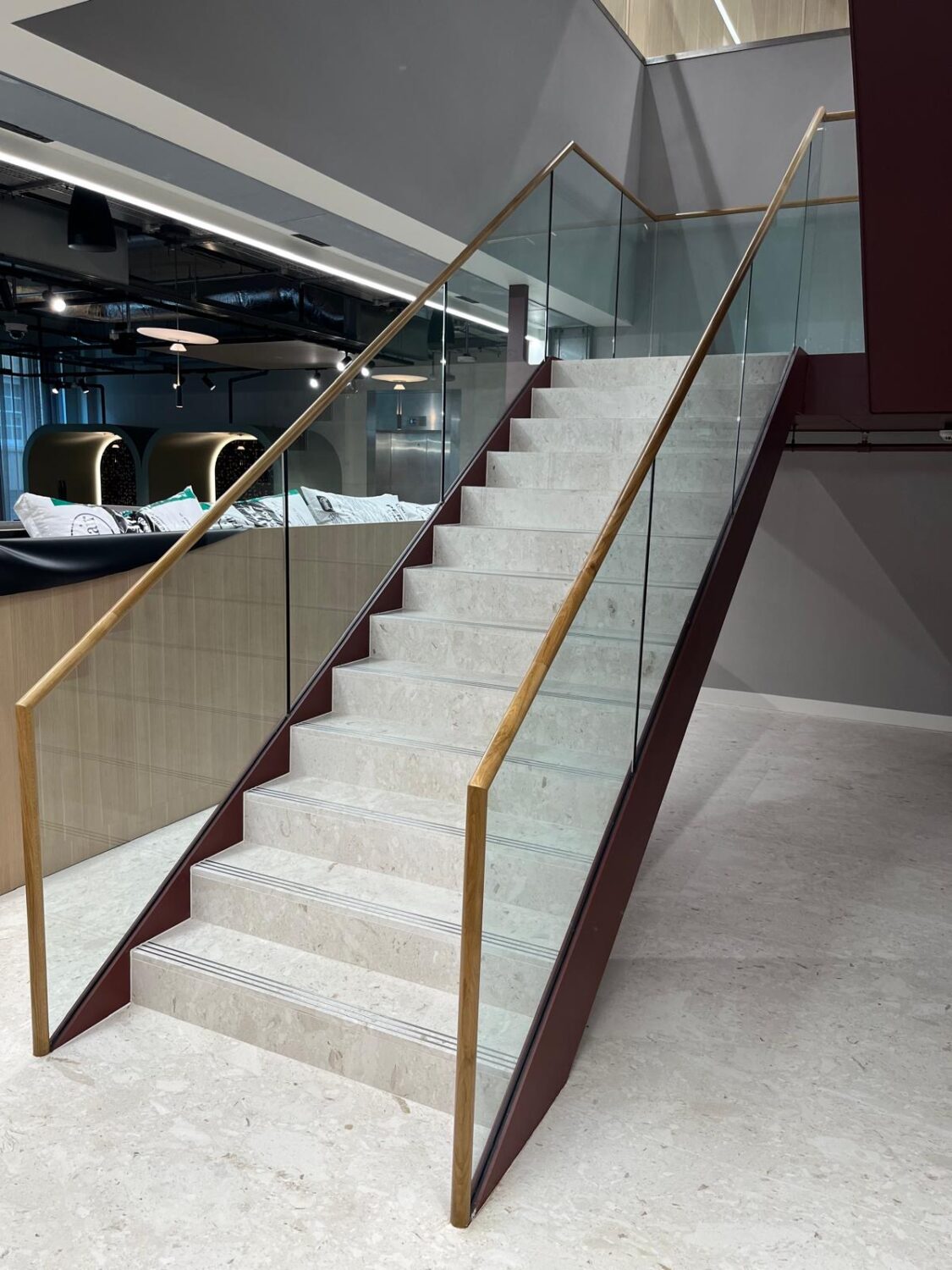

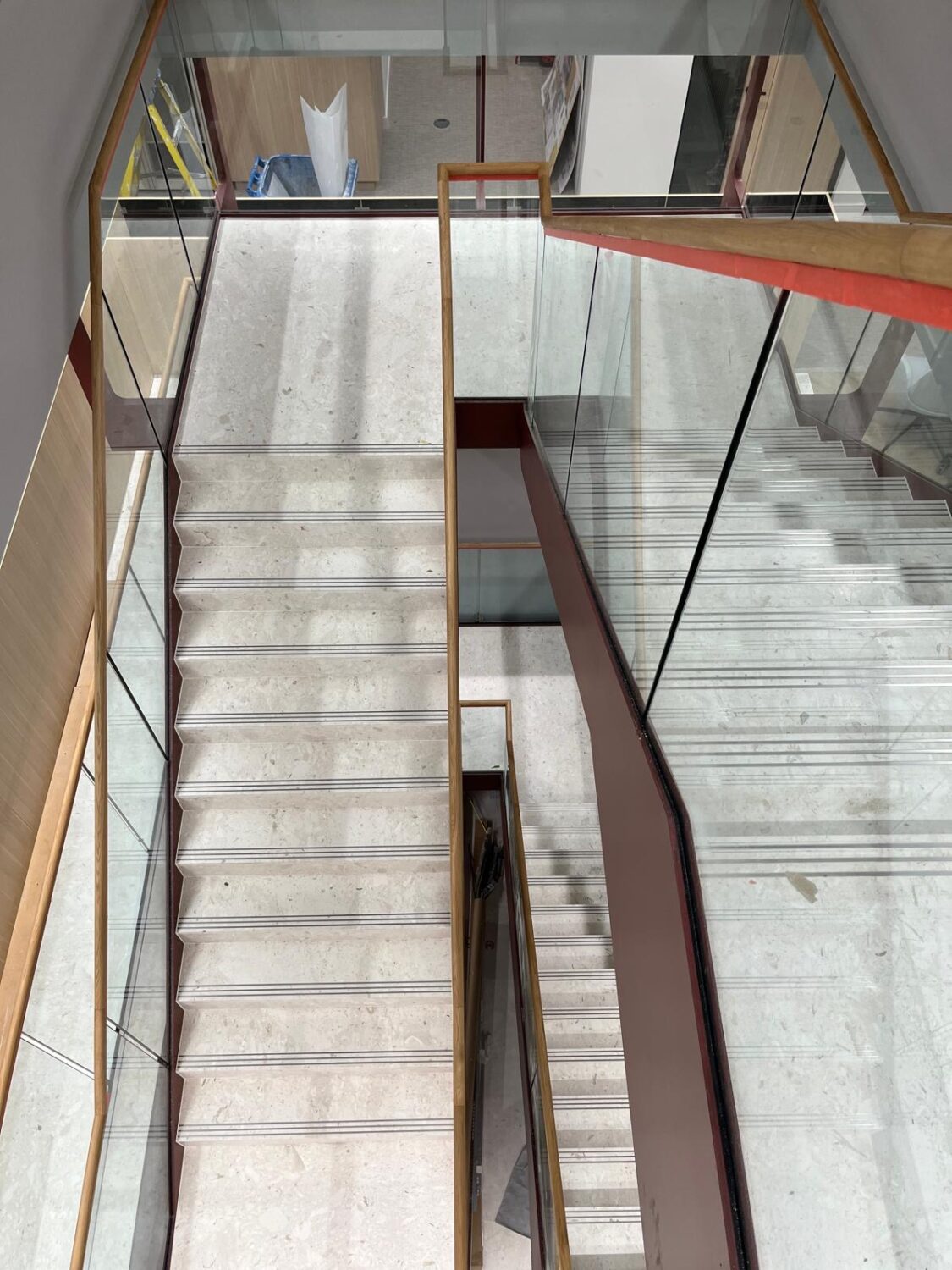

The aesthetic is a balance of natural stone and industrial accents. Each tread is finished with aa Crema Perla stone overlay, a material chosen for its warm, fossil-rich character, and punctuated by stainless-steel inset nosings for added definition and durability. The clean, horizontal lines of the stone are mirrored by the sleek metal panelled soffit on the underside, ensuring the staircase looks as refined from below as it does from above.

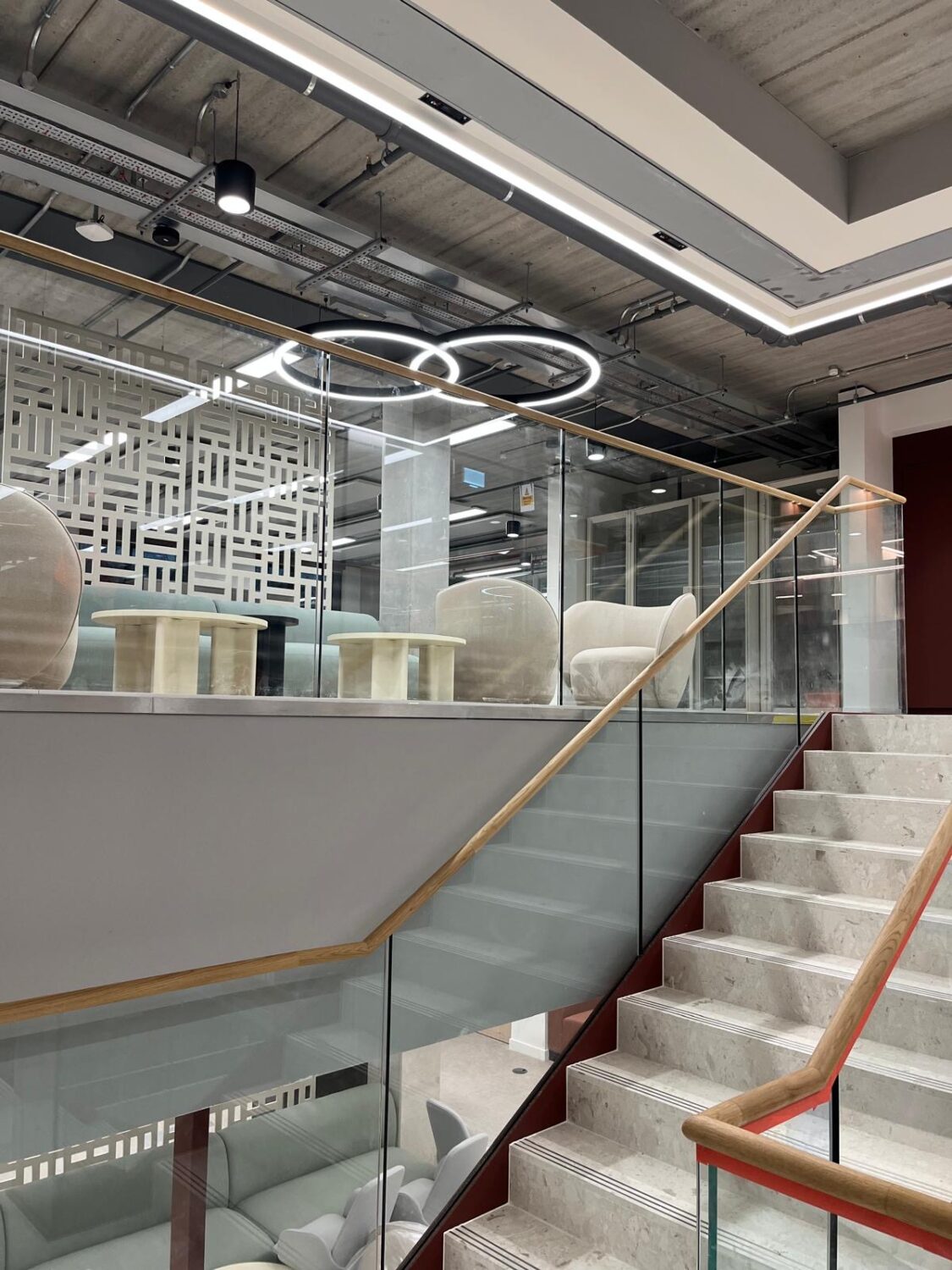

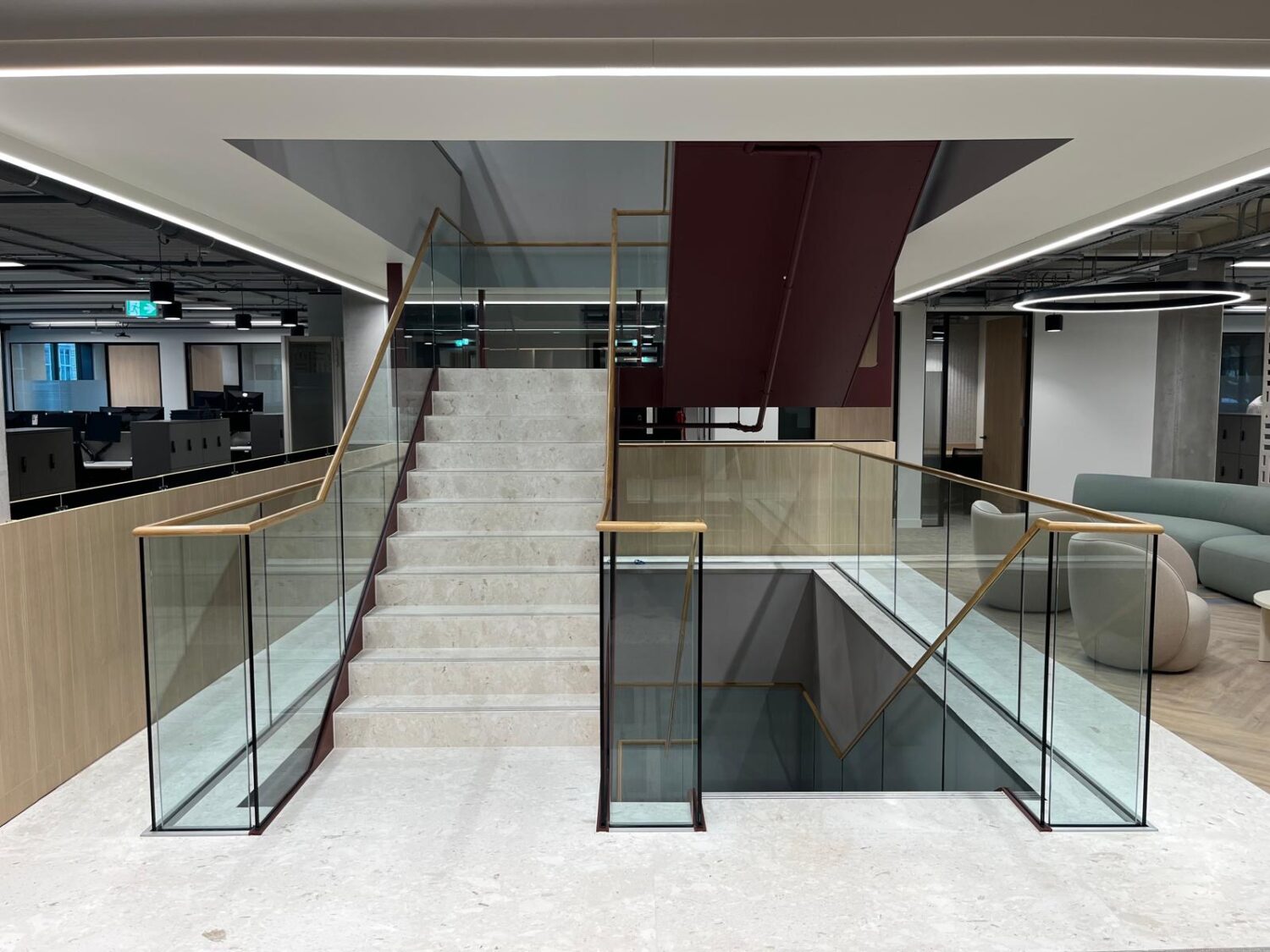

Frameless glass balustrading runs the full length of the flights and extends across the floor voids, maximizing the flow of light and maintaining clear sightlines. A continuous timber capping handrail provides a warm, tactile touchpoint, tying the modern glass and steel elements back to the natural tones of the limestone. The result is a highly functional core that feels like a seamless extension of the architecture.
