Dog legged office stairs

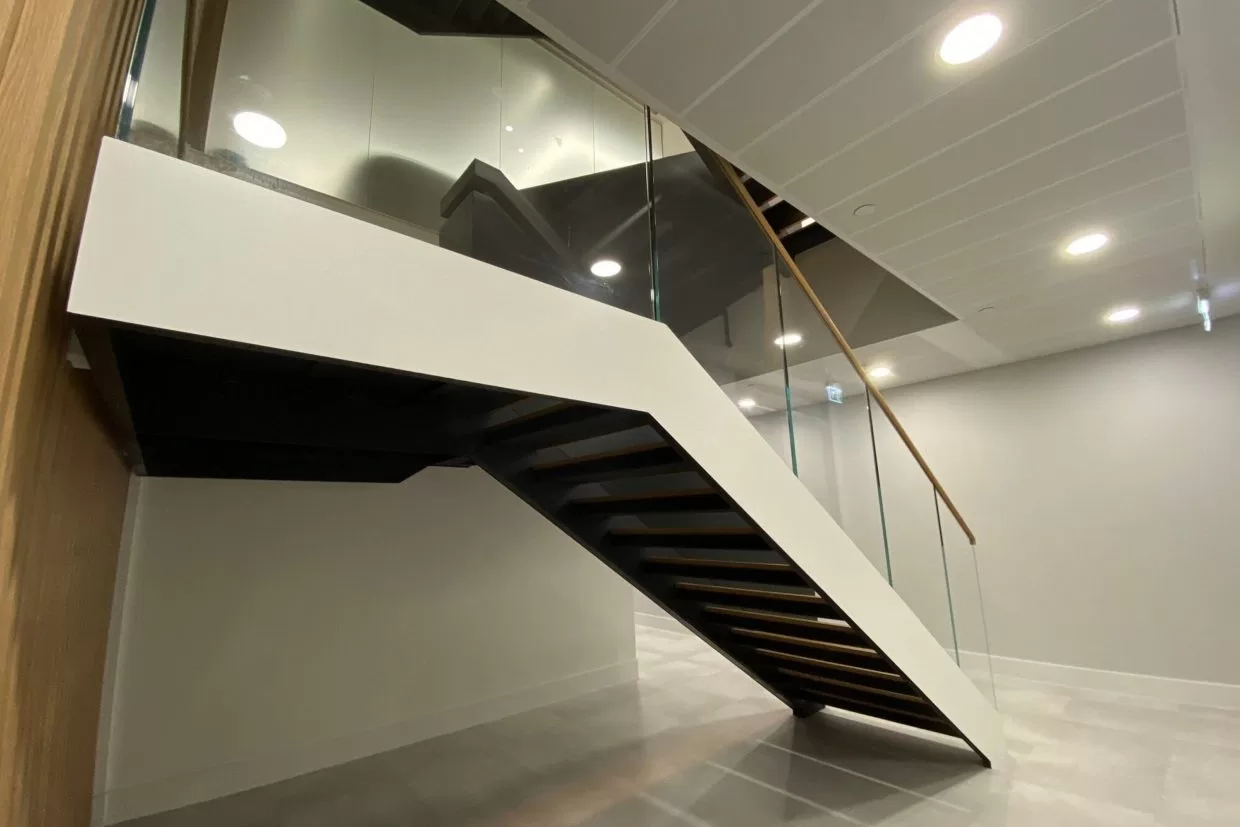

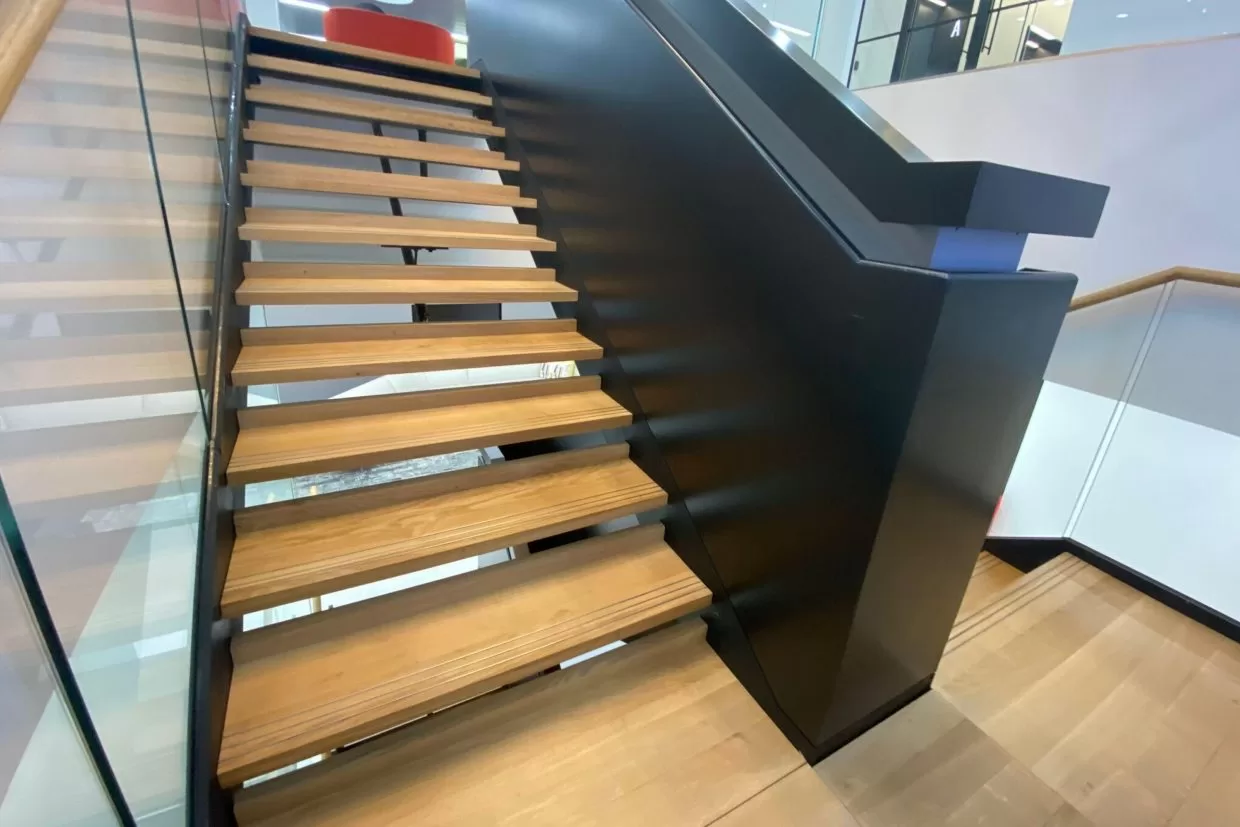

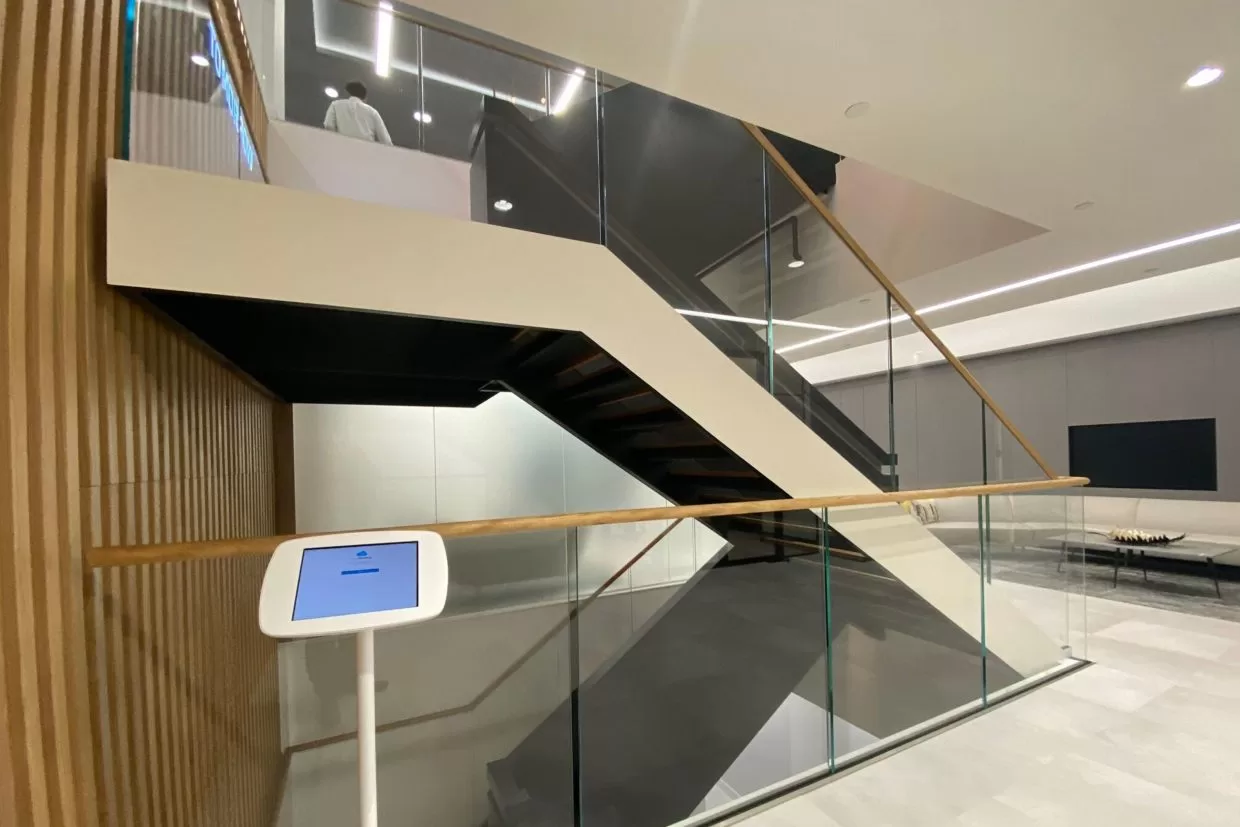

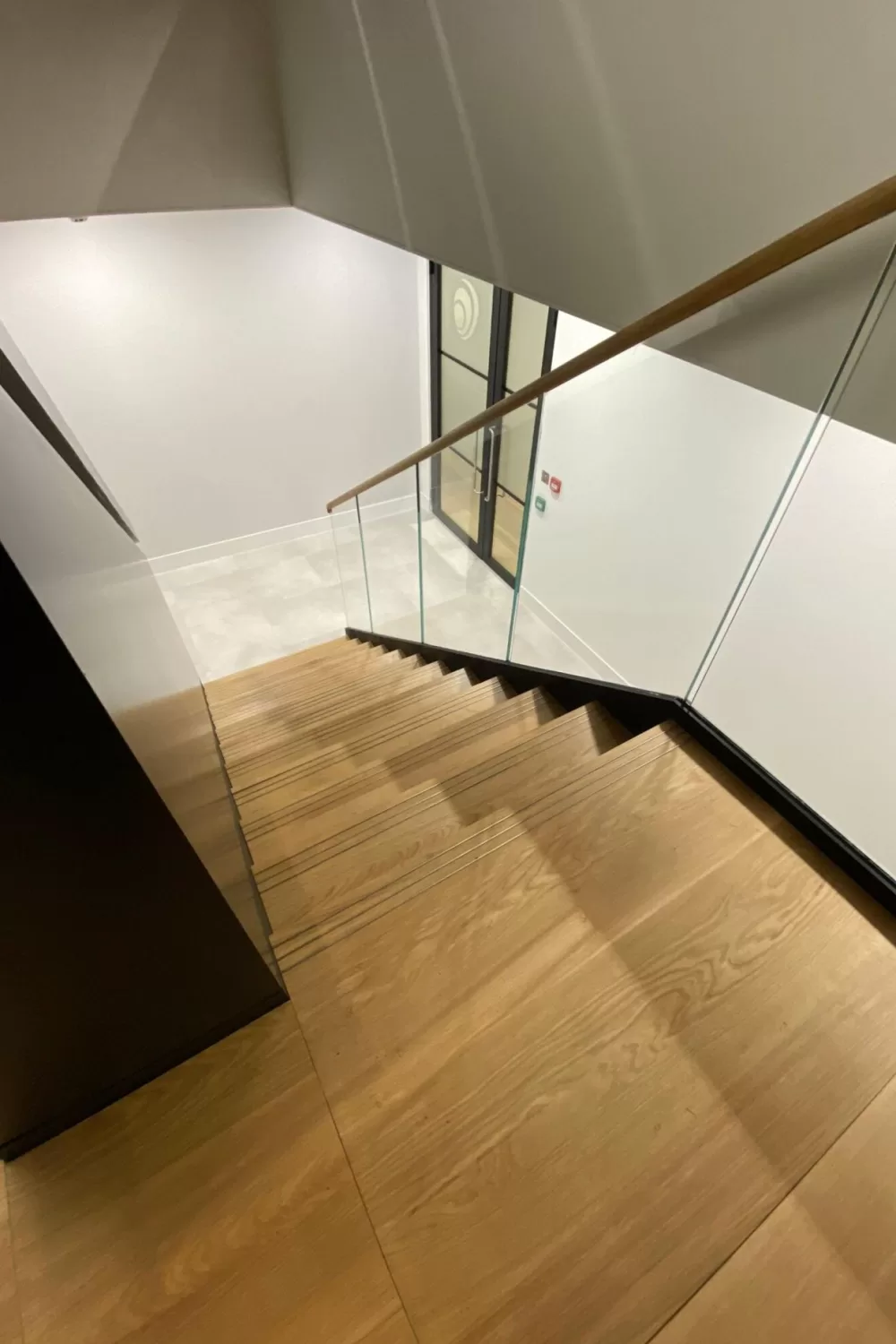

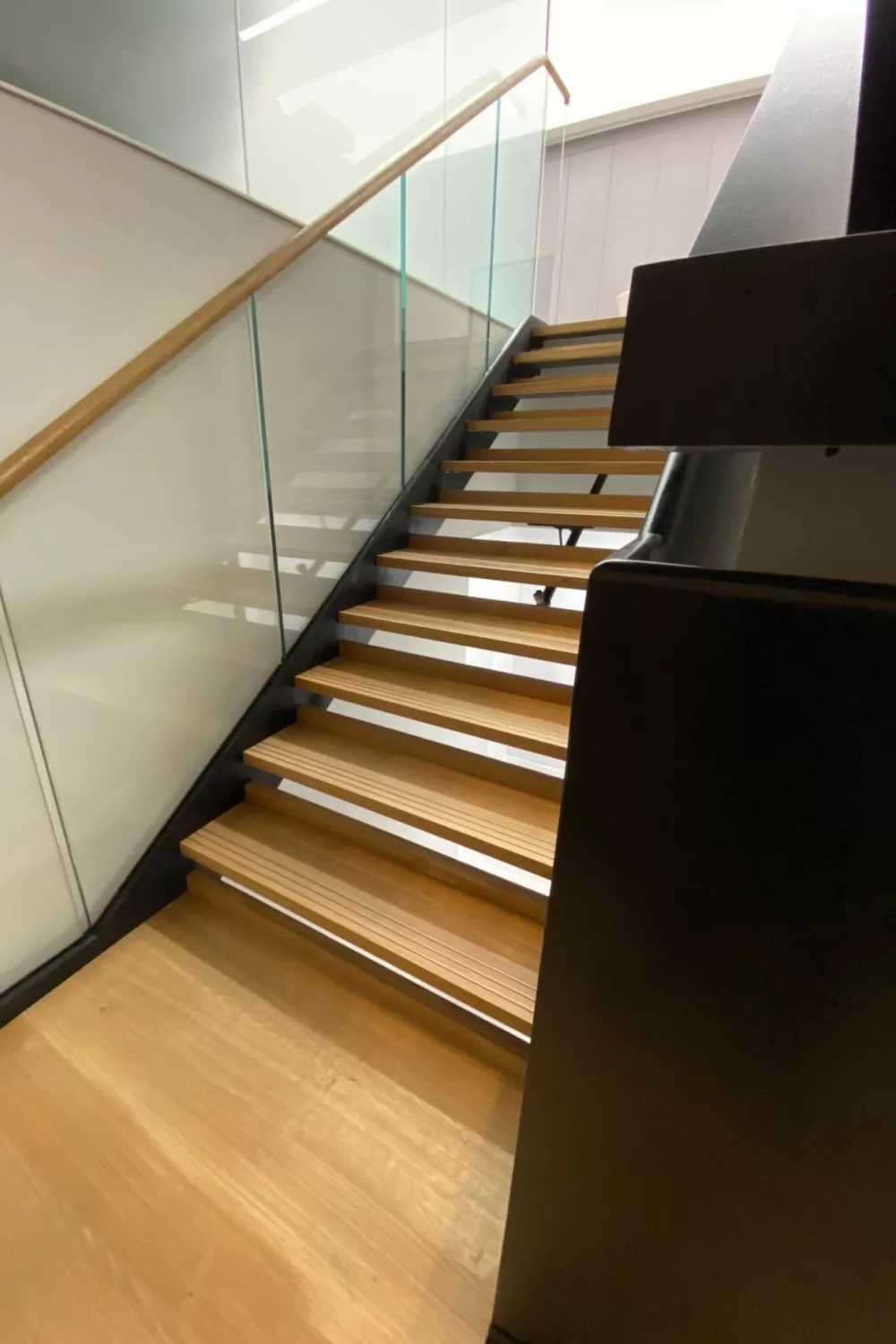

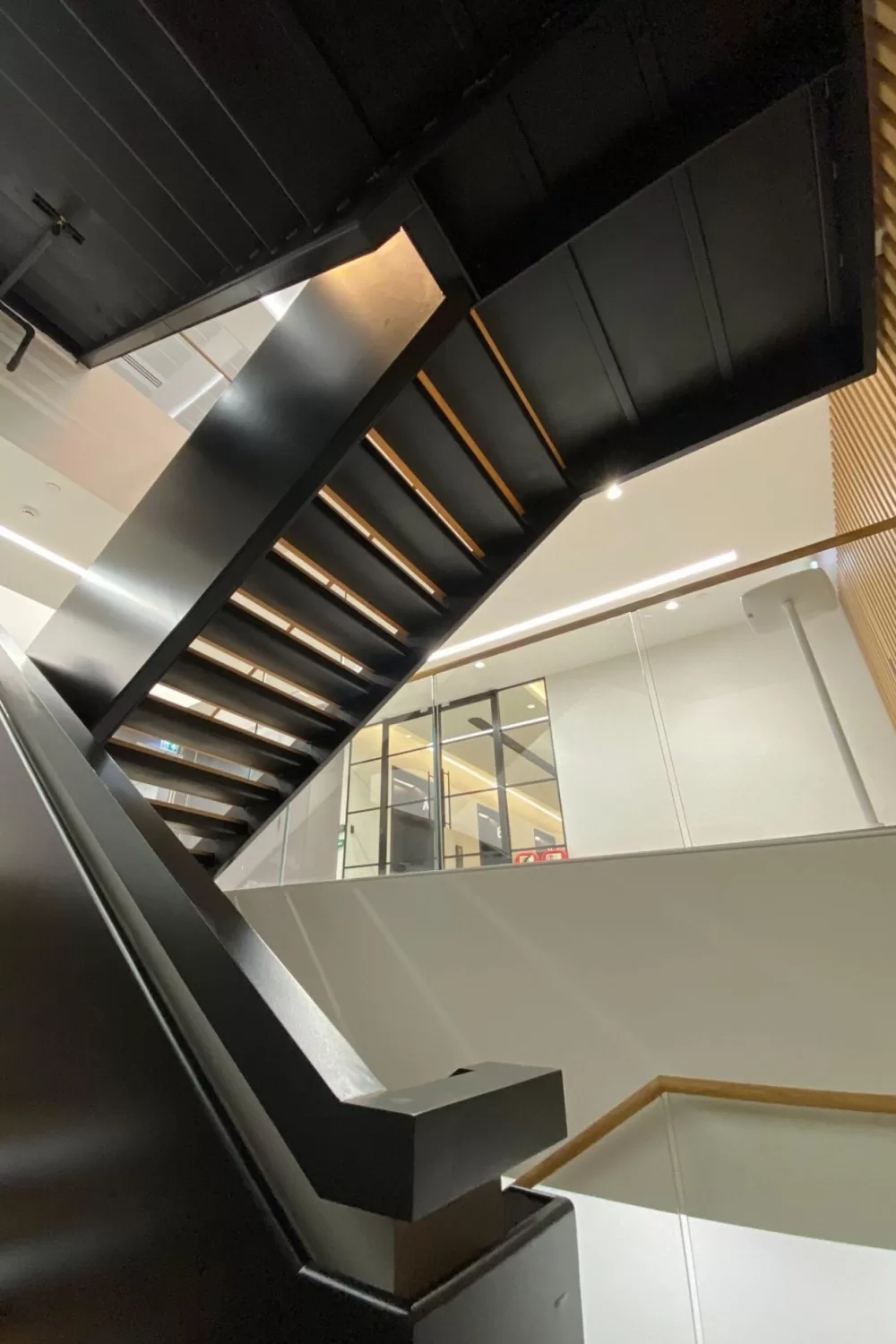

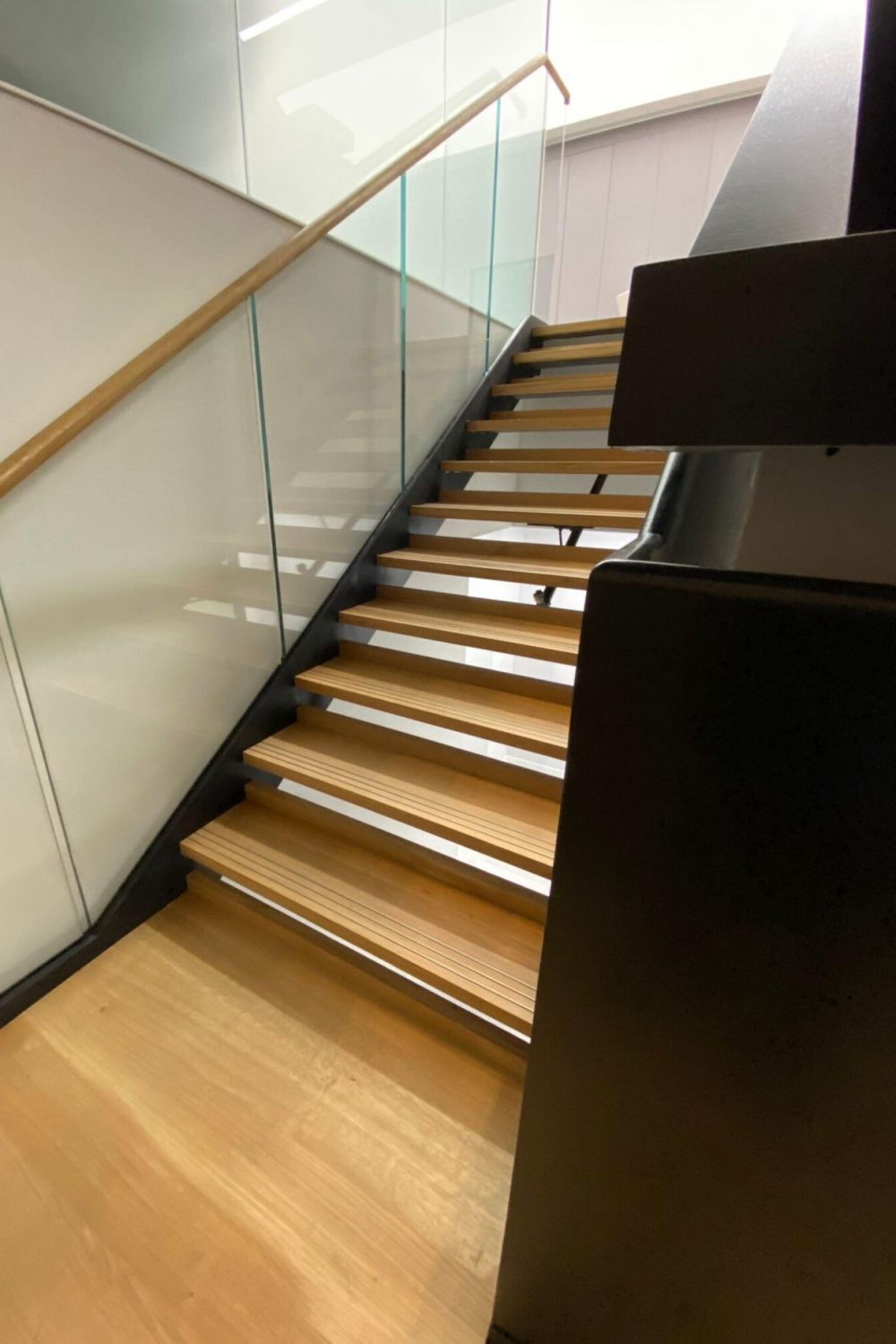

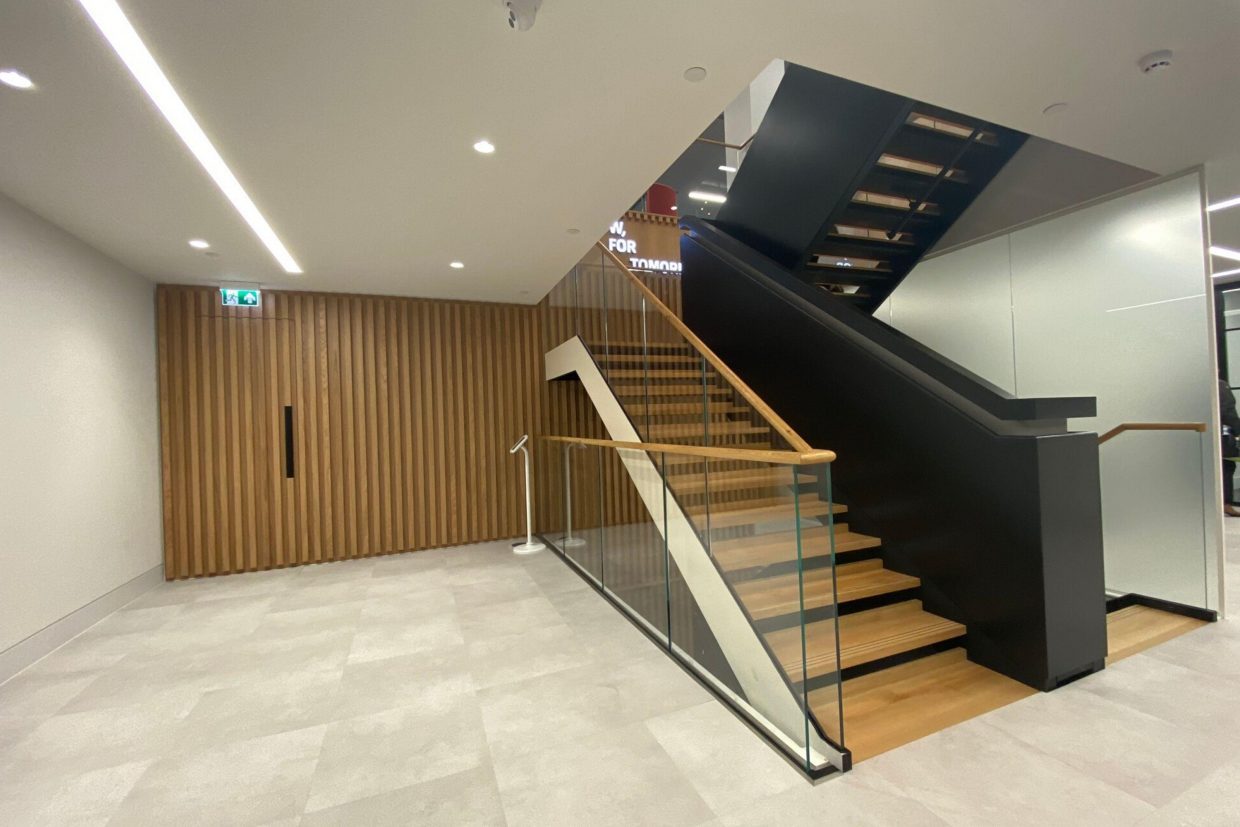

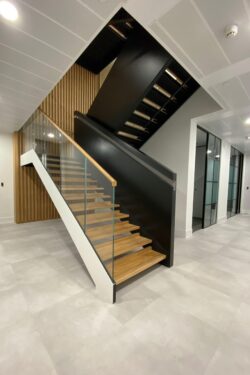

This dog legged or dog leg staircase design was fabricated in steel with treads clad in oak. The inner balustrade was clad in MDF and painted, with a contrasting colour applied to the handrail groove. The outer balustrade was toughened frameless glass with an oak handrail capping. The glass balustrade continued up to the 7th floor opening and made a feature out of the staircase access within the workplace interior design.

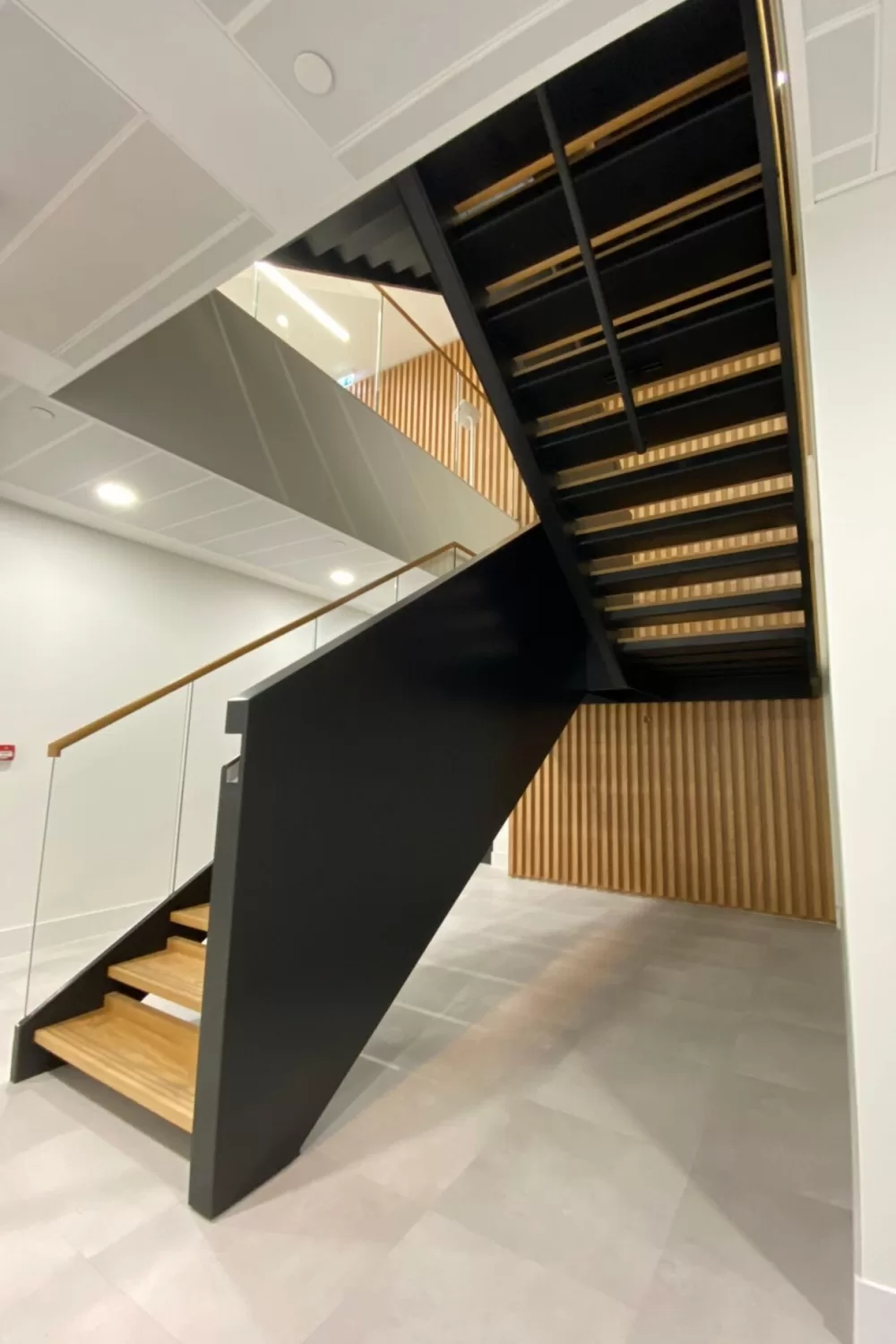

Clean lines were maintained in this stair design by hiding the landing support columns within the rear feature wall timberwork. Making a great office stairs.
At a glance
|Floor to floor height:||First flight: 3777mm second flight: 3795mm|
|Treads:||42 @ 1100mm folded steel with oak overlay|
|Tread clear width:||1100mm|
|Risers:||Open. First flight: 23 @ 164.2 second flight: 23@ 165mm|
|Balustrade:||Full height timber clad balustrade to outer stringer with toughened glass inner balustrade|
|Handrails:||Handrail groove to inner balustrade, oak handrail capping to outer glass balustrade|
|Intermediate rest landing:||2 x 1200mm x 2600mm|
|Additional:||Steel rest landing supports hidden within the rear feature wall timberwork.|
